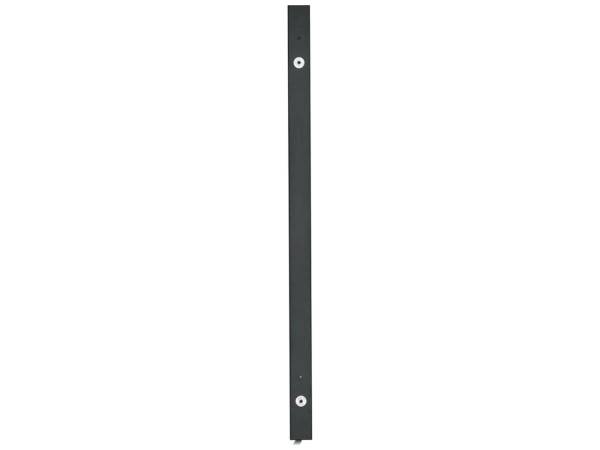

EATON PDU G4 MA 0U L6-30P 10XC13,10XC39 7364209
SKU
7364209
CA$3,863.81
EATON MANAGED G4 RACK PDU, 0U, 23U, L6-30 INPUT, 10FT CORD, 5.8KW, 32A, 208V, 20 OUTLETS (10)C13 (10)C39
Category: Power Distribution Units
- Primary Information
Product Description: Eaton G4 - power distribution strip - managed - 5.8 kW Device Type: Power distribution strip - rack-mountable Cord Length: 10 ft Rack Size: 0U Weight: 5.6 lbs Input Wiring: 1-phase Input Voltage: AC 208 V Power Capacity: 5.8 kW Power Redundancy: Optional Input Connectors: Power NEMA L6-30P Output connectors: 10 x power IEC 60320 C13 10 A ¦ 10 x power IEC 60320 C39 16 A Networking: Ethernet 10/100/1000, USB Remote Management Protocol: SNMP Color: Black Dimensions (WxDxH): 2 in x 2.1 in x 39.4 in Manufacturer Warranty: 3-year warranty - General
Device Type: Power distribution strip - rack-mountable Height (Rack Units): 0U Cord Length: 10 ft Color: Black - Power Device
Power Redundancy: Optional Input Voltage: AC 208 V Input Wiring: 1-phase Frequency Required: 50 - 60 Hz Input Connectors: Power NEMA L6-30P Power Output Connectors Details: 10 x power IEC 60320 C13 10 A ¦ 10 x power IEC 60320 C39 16 A Max Electric Current: 30 A Power Capacity: 5.8 kW Circuit Protection: Circuit breaker - Networking
Remote Management Interface: Ethernet 10/100/1000, USB Remote Management Protocol: SNMP - Expansion / Connectivity
Interfaces: 2 x management (Gigabit Ethernet) - RJ-45 ¦ 2 x USB-C - 24 pin USB-C ¦ 1 x PDU link - RJ-45 ¦ 1 x sensor - RJ-45 - Miscellaneous
Cables Included: Power cable 10 ft Rack Mounting Kit: Included Features: Vertical orientation, aluminum housing, LCD display, current meter, power measuring, energy meter, metering per input line, metering per output receptacle, Branch Current Monitoring, color-coded labels, LED indicators, Outlet Switch Control, cascadable, 2 circuit breakers Compliant Standards: FCC Part 15 A, CAN ICES-3 Class A, UL 62368-1, cTUVus, RoHS - Manufacturer Warranty
Service & Support: Limited warranty - 3 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 140 °F - Dimensions & Weight
Width: 2 in Depth: 2.1 in Height: 39.4 in Weight: 5.6 lbs - Dimensions & Weight (Shipping)
Shipping Width: 7.7 in Shipping Depth: 5.4 in Shipping Height: 46.3 in Shipping Weight: 9.81 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121017
| BRANDS | EATON INDUSTRIES |
|---|---|
| UNSPSC | 39121017 |
| Part# | POW-EVMAL630B |
| MFG Part# | EVMAL630B |
| UPC | 786689801502 |
| Device Type | Power distribution strip - rack-mountable |
| Color | Black |
| Circuit Protection | Circuit breaker |
| Remote Management Protocol | SNMP |
