EXTENDER HDMI OVER CAT5E HDBASET-4K 5960572
SKU
5960572
CA$514.99
Extend HDMI over CAT6 or CAT5 cabling with RS232 serial and IR control - HDBaseT extender - Video extender - HDMI over CAT5 extender - CAT5 HDMI extender - HDBaseT extender - HDMI booster - HDMI CAT 5 extender - HDMI repeater - HDMI extension
Category: Repeaters & Transceivers
- Primary Information

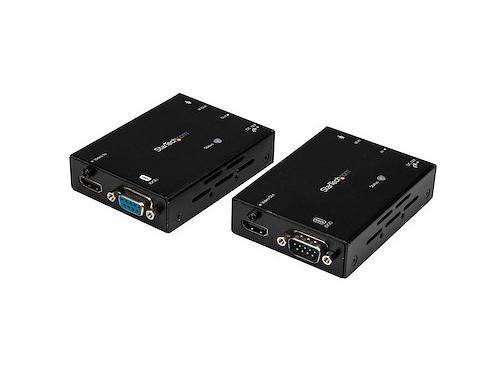

Product Description: StarTech.com HDMI Over Cat5e / CAT6 Extender - Extend up to 210 ft / 70m - HDBaseT Certified - HDMI Extender - IR Extender - HDMI Booster (ST121HDBTL) - video/audio/infrared/serial/network extender Device Type: Video/audio/infrared/serial/network extender Form Factor: External Cabling Type: 10Base-T Transmission Medium: CAT 5e/6 Max Transfer Distance: 328 ft Power: AC 120/230 V Dimensions (WxDxH): 2.6 in x 3.6 in x 1.1 in Weight: 15.94 oz Manufacturer Warranty: 2-year warranty Designed For: P/N: SVA12M2NEUA, SVA12M5NA - General
Device Type: Video/audio/infrared/serial/network extender Form Factor: External Color: Black - Networking
Connectivity Technology: Wired Cabling Type: 10Base-T Max Resolution: 4096 x 2160 Max Transfer Distance: 328 ft Status Indicators: Status Features: 7.1 channel audio support - Expansion / Connectivity
Interfaces: 1 x HDMI (input) - 19 pin HDMI Type A female ¦ 1 x RS-232 - DB-9 male ¦ 1 x Ethernet 10Base-T (output) - RJ-45 female ¦ 1 x audio - mini jack female - Miscellaneous
Included Accessories: IR receiver, IR transmitter, 2 mounting brackets, network cable, 8 foot pads Compliant Standards: FCC, RoHS - Power
Power Device: External power adapter Voltage Required: AC 120/230 V Power Consumption Operational: 18 Watt - Dimensions & Weight
Width: 2.6 in Depth: 3.6 in Height: 1.1 in Weight: 15.94 oz - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 80% - Compatibility Information
Designed For: P/N: SVA12M2NEUA, SVA12M5NA - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222608
| BRANDS | STARTECHCOM |
|---|---|
| UNSPSC | 43222608 |
| Part# | STC-ST121HDBTL |
| MFG Part# | ST121HDBTL |
| UPC | 65030868396 |
| Max Transfer Distance | 328 ft |
| Max Resolution | 4096 x 2160 |
| Device Type | Video/audio/infrared/serial/network extender |
| Connectivity Technology | Wired |
| Form Factor | External |
| Color | Black |
