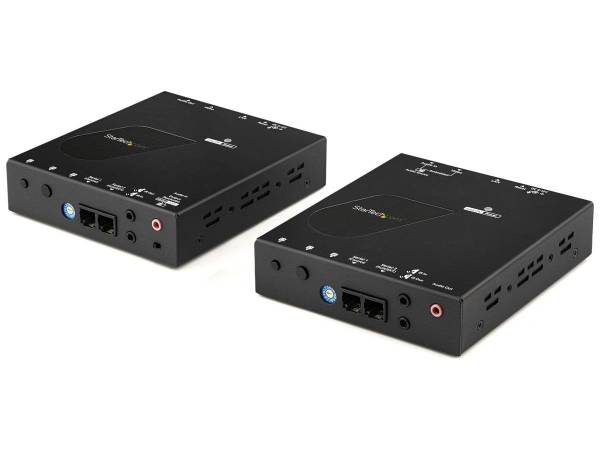

EXTENDER KIT - HDMI OVER IP - 1080P 6309635
SKU
6309635
CA$730.99
HDMI over IP Extender Kit - Video wall support - HDMI transmitter receiver kit extends HDMI signal RS232 control - HDMI over Ethernet extender supports resolutions up to 1080p - HDMI over Cat5 Cat6 extender w/ mobile app to manage digital signage
Category: Repeaters & Transceivers
- Primary Information
Product Description: StarTech.com HDMI over IP Extender Kit with Video Wall Support - 1080p - HDMI over CAT5e / CAT6 Transmitter and Receiver Kit (ST12MHDLAN2K) - video/audio/infrared/serial extender - HDMI - TAA Compliant Device Type: Video/audio/infrared/serial extender Form Factor: External Localization: North Asia, Japan, Europe, United Kingdom, Australia, New Zealand Data Link Protocol: HDMI Max Transfer Distance: 328 ft Power: AC 120/230 V Dimensions (WxDxH): 4.6 in x 5.2 in x 1.2 in Weight: 2.82 oz TAA Compliant: Yes Manufacturer Warranty: 2-year warranty Designed For: P/N: ST12MHDLAN2R - General
Device Type: Video/audio/infrared/serial extender Form Factor: External Color: Black Localization: North Asia, Japan, Europe, United Kingdom, Australia, New Zealand - Networking
Connectivity Technology: Wired Data Link Protocol: HDMI Max Resolution: 1920 x 1080 @ 60 Hz Max Transfer Distance: 328 ft Status Indicators: Power, link OK, status Features: Daisy-chaining support, wall mountable - Expansion / Connectivity
Interfaces: 1 x HDMI (input) - 19 pin HDMI Type A female ¦ 1 x HDMI (output) - 19 pin HDMI Type A female ¦ 2 x RS-232 (input) - RJ-11 ¦ 2 x RS-232 (output) - RJ-11 ¦ 2 x IrDA (input) - mini jack ¦ 2 x IrDA (output) - mini jack ¦ 2 x audio (input) - mini jack ¦ 2 x audio (output) - mini jack - Miscellaneous
Included Accessories: IR receiver, IR transmitter, 8 foot pads Cables Included: 1 x network cable ¦ 2 x RJ-11 to RS-232 adapter ¦ 2 x RJ-11 phone cable Mounting Kit: Included Rack Mounting Kit: Included Compliant Standards: RoHS, FCC TAA Compliant: Yes - Power
Power Device: External power adapter Max Supported Qty: 2 Voltage Required: AC 120/230 V Power Consumption Operational: 10 Watt - Dimensions & Weight
Width: 4.6 in Depth: 5.2 in Height: 1.2 in Weight: 2.82 oz - Dimensions & Weight (Shipping)
Shipping Weight: 7.05 oz - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 80% - Compatibility Information
Designed For: P/N: ST12MHDLAN2R - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222608
| BRANDS | STARTECHCOM |
|---|---|
| UNSPSC | 43222608 |
| Part# | STC-ST12MHDLAN2K |
| MFG Part# | ST12MHDLAN2K |
| UPC | 65030878456 |
| Max Transfer Distance | 328 ft |
| Max Resolution | 1920 x 1080 @ 60 Hz |
| Device Type | Video/audio/infrared/serial extender |
| Connectivity Technology | Wired |
| Form Factor | External |
| Data Link Protocol | HDMI |
| Color | Black |
