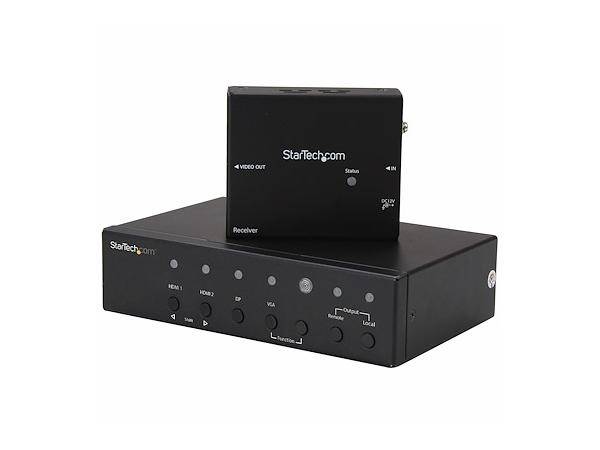

EXTENDER VGA/DP/HDMI OVER CAT5E HDBASET 5746320
SKU
5746320
CA$773.99
Connect your laptop to a remote display over standard CAT5e or CAT6 cabling, and easily swap between HDMI, DP or VGA video sources - HDBaseT Extender - Resolutions up to 4K - HDMI over CAT5e or CAT6 - HDMI VGA DisplayPort to HDMI over CAT6 or CAT5e
Category: Repeaters & Transceivers
- Primary Information
Product Description: StarTech.com Multi-Input HDBaseT Extender with Built-in Switch - DisplayPort VGA and HDMI Over CAT5e or CAT6 - Up to 4K - up to 230 ft (STDHVHDBT) - video/audio extender - HDMI Device Type: Video/audio extender Form Factor: Rack-mountable Data Link Protocol: HDMI Transmission Medium: CAT 5e/6 Max Transfer Distance: 230 ft Power: AC 120/230 V / DC 12 V Manufacturer Warranty: 2-year warranty - General
Device Type: Video/audio extender Form Factor: Rack-mountable - Networking
Connectivity Technology: Wired Data Link Protocol: HDMI Max Transfer Distance: 230 ft Status Indicators: Status Features: 4K resolution support, 7.1 channel audio support, Dolby TrueHD support, DTS-HD Master Audio support, 1080p resolution support - Expansion / Connectivity
Interfaces: 1 x HDBaseT (input) - RJ-45 female ¦ 1 x HDMI (output) - 19 pin HDMI Type A female ¦ 2 x HDMI (input) - 19 pin HDMI Type A female ¦ 1 x DisplayPort (input) female ¦ 1 x VGA (input) - DB-15 female ¦ 2 x IrDA female ¦ 1 x (output) - RJ-45 female - Miscellaneous
Included Accessories: Remote control, 2 mounting brackets, foot pad set, HDBaseT receiver Cables Included: 1 x network cable ¦ 1 x RJ-11 phone cable - Power
Power Device: External power adapter Voltage Required: AC 120/230 V / DC 12 V - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 80% (non-condensing) - Special Feature
COO: TAIWAN - UNSPSC Code
UNSPSC Code: 43222608
| BRANDS | STARTECHCOM |
|---|---|
| UNSPSC | 43222608 |
| Part# | STC-STDHVHDBT |
| MFG Part# | STDHVHDBT |
| UPC | 65030864572 |
| Max Transfer Distance | 230 ft |
| Device Type | Video/audio extender |
| Connectivity Technology | Wired |
| Form Factor | Rack-mountable |
| Data Link Protocol | HDMI |
