FF 12916E SWTCH CHASSIS 5521748
SKU
5521748
CA$32,026.00

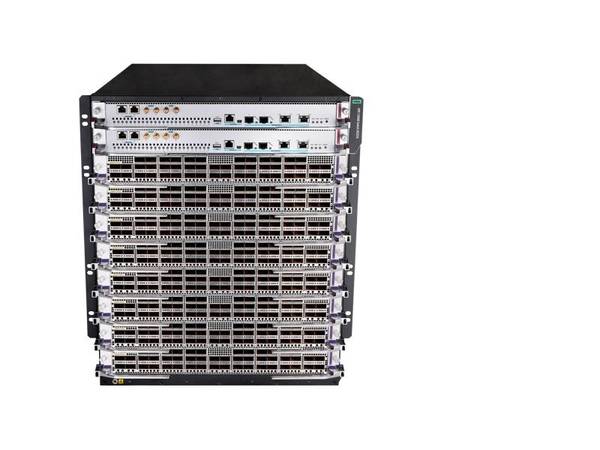

HPE 12916E Switch Chassis- JH103A - 21U - Quad-Core - 8GB RAM - 1GB Flash Memory - 100 - 240 VAC,-48 to -60 VDC,50/60 Hz, support Layer 2 and Layer 3, RADIUS, TACACS+, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1q, IEEE 802.1s, IEEE 802.1w
Category: Hubs & Switches
- Primary Information
Network Device Type: Switch Chassis Model: JH103A Form Factor: 21U Connectivity Technology: Wired Data Transfer Rate: 100 Gbps Data Link Protocol: Gigabit Ethernet Processor / Type: Quad-Core RAM / Total Installed Size: 8 GB Flash Memory / Installed Size: 1 GB Networking Compliant Standards: IEEE 802.1ad, IEEE 802.1p, IEEE 802.1q, IEEE 802.1s, IEEE 802.1w Power / Device Type: Power Supply Media Layer Supported: Layer 2 and Layer 3 Power / Provided (W): 2400 Watt Power / Voltage Required: 100 - 240 VAC,-48 to -60 VDC,50/60 Hz Features: Modern, Scalable and Distributed Architecture; High-Performance Switch Series with Broad Interface Options; Optimized for the Next-Generation Data Center;Enterprise-Class Availability and Resiliency with Broad Layer 2 and Layers 3 Feature Set - Network
Power Over Ethernet (PoE) Support: NONE PoE Power Consumption: NONE MAC Address Table Size: 750K Jumbo Frame Support: up to 9964 bytes Remote Management Protocol: SNMP; IPv6; IPv4; DHCP Routing Protocol: OSPF, RIPng, RIP, Ospfv3 Encryption Algorithm: TCP Authentication Method: RADIUS, TACACS+ Interfaces: (16) I/O module slots; Supports a maximum of 768 10GbE ports or 768 1/10GBASE-T ports or 768 1/10GbE ports or 768 Gigabit Ethernet ports or 768 autosensing 10/100/1000 ports or 768 40GbE ports or 576 100GbE ports, or a combination - Interfaces / Ports
Interfaces: (16) I/O module slots; Supports a maximum of 768 10GbE ports or 768 1/10GBASE-T ports or 768 1/10GbE ports or 768 Gigabit Ethernet ports or 768 autosensing 10/100/1000 ports or 768 40GbE ports or 576 100GbE ports, or a combination - Dimensions&Miscellaneous
Width: 17.32 Inch Depth: 33.74 Inch Height: 36.65 Inch Weight: 86 Kg - Service&Support
Service & Support Type: 1-year Warranty - Special Feature
Min Operating Temperature: 0 CELSIUS Max Operating Temperature: 40 CELSIUS Min Storage Temperature: -40 CELSIUS Max Storage Temperature: 70 CELSIUS COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | HEWLETT PACKARD ENTERPRISE |
|---|---|
| UNSPSC | 43222612 |
| Part# | HPE-JH103A |
| MFG Part# | JH103A |
| UPC | 888793641910 |
| Flash Memory / Installed Size | 1 GB |
| Network Device Type | Switch Chassis |
| RAM / Total Installed Size | 8 GB |
| Connectivity Technology | Wired |
| Data Transfer Rate | 100 Gbps |
| Form Factor | 21U |
| Processor / Type | Quad-Core |
| Data Link Protocol | Gigabit Ethernet |
| Power / Device Type | Power Supply |
| Remote Management Protocol | DHCP, IPv4, IPv6, SNMP |
| Encryption Algorithm | TCP |
