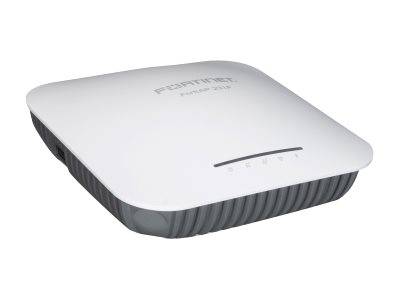

Product Description: | Fortinet FortiAP 231F - wireless access point - Wi-Fi 6 |
Device Type: | Wireless access point |
Form Factor: | External - indoor |
Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax |
Frequency Band: | 2.4 GHz, 5 GHz |
Performance: | Maximum throughput (2.4 GHz): 574 Mbps ¦ Maximum throughput (5 GHz): 1201 Mbps |
Capacity: | Maximum number of configured SSIDs: 16 ¦ Wireless clients per Wi-Fi radio: up to 512 |
Included Accessories: | Wall mounting kit, ceiling mounting kit, T-Rail mounting kit |
Power Over Ethernet (PoE) Supported: | PoE |
Dimensions (WxDxH): | 6 in x 6 in x 2.1 in |
Weight: | 19.15 oz |
Manufacturer Warranty: | Limited lifetime warranty |
Device Type: | Wireless access point |
Ruggedized Design: | Indoor |
Width: | 6 in |
Depth: | 6 in |
Height: | 2.1 in |
Weight: | 19.15 oz |
Form Factor: | External |
Connectivity Technology: | Wireless, wired |
Line Coding Format: | 64 QAM, 256 QAM, BPSK, QPSK, 1024 QAM |
Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax |
Frequency Band: | 2.4 GHz, 5 GHz |
Performance: | Maximum throughput (2.4 GHz): 574 Mbps ¦ Maximum throughput (5 GHz): 1201 Mbps |
Capacity: | Maximum number of configured SSIDs: 16 ¦ Wireless clients per Wi-Fi radio: up to 512 |
Features: | Surge protection, Mesh networking, Wireless Intrusion Detection System (WIDS), reset button, Wireless Intrusion Prevention System (WIPS), Dynamic Frequency Selection (DFS), 2x2 MU-MIMO technology, spectrum analyzer, Packet Sniffer Mode, security slot (Kensington security lock compatible), Bluetooth (BLE) clients support, Target Wait Time (TWT), dedicated 3rd scanning radio, Wi-Fi 6 technology, BSS Coloring |
Encryption Algorithm: | TLS, PEAP, TTLS, WPA, WPA2, WEP, WPA3 |
Authentication Method: | Radio Service Set ID (SSID), MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM, EAP-AKA, EAP-GTC |
Compliant Standards: | IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.11k, IEEE 802.3at, IEEE 802.11j, IEEE 802.3az, IEEE 802.11ac, IEEE 802.11r, IEEE 802.11v, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
Antenna: | Internal |
Antenna Qty: | 3 |
Interfaces: | 2 x 1000Base-T (PoE) - RJ-45 ¦ 1 x management (RS-232) - RJ-45 ¦ 1 x USB 2.0 - Type A |
Included Accessories: | Wall mounting kit, ceiling mounting kit, T-Rail mounting kit |
MTBF: | 10 years |
Compliant Standards: | RoHS |
Power Over Ethernet (PoE) Supported: | PoE |
Power Consumption Operational: | 17 Watt |
Shipping Weight: | 33.51 oz |
Service & Support: | Limited warranty - lifetime |
Min Operating Temperature: | 32 °F |
Max Operating Temperature: | 122 °F |
Humidity Range Operating: | 5 - 90% (non-condensing) |
COO: | Inquire |
TAA compliance: | Inquire |
UNSPSC Code: | 43222631 |
BRANDS | FORTINET |
---|---|
UNSPSC | 43222631 |
Part# | FOR-FAP-231F-S |
MFG Part# | FAP-231F-S |
UPC | 842382193068 |
Device Type | Wireless access point |
Connectivity Technology | wired, Wireless |
Form Factor | External |
Data Link Protocol | 802.11ax, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Frequency Band | 2.4 GHz, 5 GHz |
Encryption Algorithm | PEAP, TLS, TTLS, WEP, WPA, WPA2, WPA3 |
