GRANDSTREAM 2 PORT E1/T1 GATEWAY 6366549

SKU
6366549

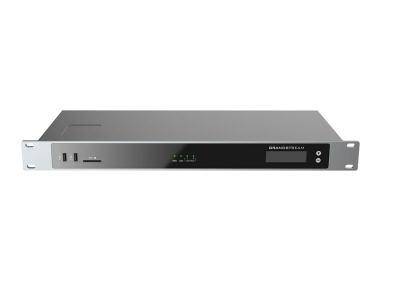

main product photo
CA$2,359.23
The GXW4502 is an E1/T1 Digital VoIP Gateways that allow digital PSTN and ISDN trunks to be integrated with VoIP networks. This model provides 2 T1/E1/J1 sopan ans supports 60 concurrent calls.





buy now pay later
Category: Network Devices
  • Primary Information
    Product Description: Grandstream GXW4502 - VoIP gateway
    Device Type: VoIP gateway
    Form Factor: External
    Ports Qty: 2
    Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, Frame Relay, PPP
    Capacity: Concurrent calls: 60
    VoIP Protocols: SIP, SRTP
    Telephony Interfaces: 2 line (ISDN T-1/E-1)
    Power: AC 120/230 V (50/60 Hz)
    Dimensions (WxDxH): 19.1 in x 7.5 in x 1.8 in
    Weight: 5.2 lbs
  • General
    Device Type: VoIP gateway
    Built-in Devices: Status LCD
    Width: 19.1 in
    Depth: 7.5 in
    Height: 1.8 in
    Weight: 5.2 lbs
  • Networking
    Form Factor: External
    Ports Qty: 2
    Connectivity Technology: Wired
    Line Rate: T-1/E-1/J-1
    Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, Frame Relay, PPP
    Network / Transport Protocol: TCP/IP, UDP/IP, NTP, ICMP/IP, PPPoE, ARP, DHCP, DNS, DDNS, RTP, RTCP
    Remote Management Protocol: HTTP, HTTPS, TFTP, SSH, TR-069
    Capacity: Concurrent calls: 60
    Status Indicators: Port status, WAN, LAN
    Features: Routing, NAT support, MPLS support, LDAP support, Syslog support, DiffServ support, manageable, IPv6 support, firmware upgradable, event log, Quality of Service (QoS), reset button, Type of Service (ToS), black list, white list, OpenVPN client
    Encryption Algorithm: TLS
    Compliant Standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x
  • IP Telephony
    VoIP Protocols: SIP, SRTP
    Voice Codecs: G.722, G.723.1, G.729a, G.711u, G.711a, G.726, iLBC, T.38, G.729b, Opus
    Telephony Interfaces: 2 line (ISDN T-1/E-1)
    IP Telephony Features: Comfort noise generation (CNG), voice activity detection (VAD), echo cancellation (G.168), adaptative jitter buffer, packet loss concealment (PLC), DTMF inband
  • Communications
    Supported Flash Memory Cards: SD Memory Card
  • Expansion / Connectivity
    Interfaces: 2 x T1/E1/J1 - RJ-45 ¦ 1 x 1000Base-T - RJ-45 ¦ 1 x 1000Base-T - RJ-45 (WAN) ¦ 2 x USB 3.0 - Type A
  • Miscellaneous
    Compliant Standards: EN 61000-3-2, EN 61000-3-3, EN55024, UL 60950, EN55022 Class B, FCC Part 68, RoHS, EN 60950-1, FCC CFR47 Part 15 B, TBR21, AS/NZS 60950, AS/ACIF S002, TBR4, TBR12, TBR13, AS/NZS CISPR 22, RCM, ITU-T K.21, AS/NZS CISPR 24, TIA-968-B
  • Power
    Power Device: External power adapter
    Voltage Required: AC 120/230 V (50/60 Hz)
  • Dimensions & Weight (Shipping)
    Shipping Weight: 6.92 lbs
  • Environmental Parameters
    Min Operating Temperature: 32 °F
    Max Operating Temperature: 113 °F
    Humidity Range Operating: 10 - 90% (non-condensing)
  • Special Feature
    COO: Inquire
    TAA compliance: Inquire
  • UNSPSC Code
    UNSPSC Code: 43222605
More Information
BRANDS GRANDSTREAM
UNSPSC 43222605
Part# GRS-GXW4502
MFG Part# GXW4502
UPC 6947273702788
Device Type VoIP gateway
Connectivity Technology Wired
Form Factor External
Data Link Protocol Ethernet, Fast Ethernet, Frame Relay, Gigabit Ethernet, PPP
Remote Management Protocol HTTP, HTTPS, SSH, TFTP, TR-069
Encryption Algorithm TLS
