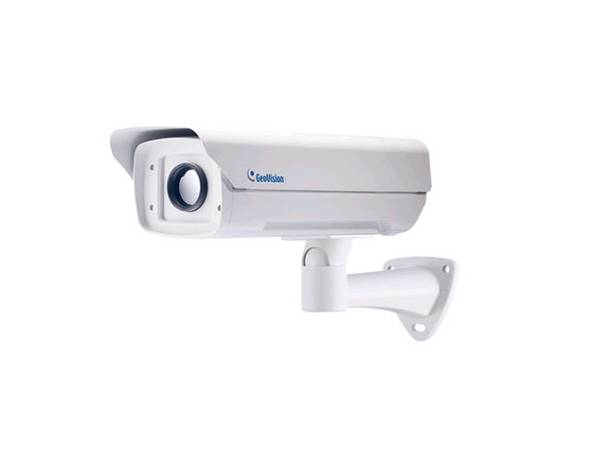

Product Description: | GeoVision GV-TM0100 - thermal network camera - bullet |
Device Type: | Thermal network camera - fixed - bullet - outdoor - ingress protection |
Dimensions (WxDxH): | 6.2 in x 19.1 in x 9.8 in |
Weight: | 6.06 lbs |
Connectivity Technology: | Wired |
Max Resolution: | 352 x 288 |
Frame Rate (max): | 25 frames per second |
Motion Detection: | Yes |
Optical Sensor Type: | Uncooled FPA Micro bolometer |
Focal Length Control: | Fixed focal |
Focal Length: | 40 mm |
Focus Adjustment: | Automatic, manual |
Interfaces: | Ethernet 10Base-T/100Base-T |
Voltage: | DC 12 V / PoE |
Features: | 25µm pixel size, thermal sensitivity 100mK, 8 - 14 μm spectral response, Privacy Mask Function, text overlay, IP address filtering, auto gain control, manual gain control, brightness control, contrast control, noise reduction, ONVIF (Profile S) support, 1450m human detection, 1850m vehicle detection, 480m human recognition, 920m vehicle recognition |
Environmental Parameters (operating): | -4 °F - 104 °F; 20 - 90% (non-condensing) relative humidity |
Device Type: | Thermal network camera |
Form Factor: | Bullet |
Connectivity Technology: | Wired |
Width: | 6.2 in |
Depth: | 19.1 in |
Height: | 9.8 in |
Weight: | 6.06 lbs |
Type: | - fixed - outdoor - ingress protection |
Digital Video Format: | H.264, MJPEG |
Max Digital Video Resolution: | 352 x 288 |
Motion Detection: | Yes |
Digital Zoom: | 2 |
Digital Video Capture Resolution: | 352 x 288 |
Frame Rate (max): | 25 frames per second |
Features: | 25µm pixel size, thermal sensitivity 100mK, 8 - 14 μm spectral response, Privacy Mask Function, text overlay, IP address filtering, auto gain control, manual gain control, brightness control, contrast control, noise reduction, ONVIF (Profile S) support, 1450m human detection, 1850m vehicle detection, 480m human recognition, 920m vehicle recognition |
Type: | Uncooled FPA Micro bolometer |
Type: | Fixed focal |
Focal Length: | 40 mm |
Focus Adjustment: | Automatic, manual |
Horizontal Field of View (degree): | 13.7 |
Network Interface: | Ethernet 10Base-T/100Base-T |
Network Protocols: | DHCP, DNS, DDNS, FTP, HTTP, HTTPS, ICMP, IPv4, NTP, DSCP, RTCP, RTSP, SNMP, SMTP, TCP/IP, UDP, UPnP, 3GPP/ISMA |
Ports: | LAN - RJ-45 |
Included Accessories: | Supporting rack, hex key, rubber pad, 2 screws, silica gel |
Compliant Standards: | IP66, IEEE 802.3af, FCC, RCM, RoHS |
Power Requirements: | DC 12 V / PoE - 1.25 A |
Min Operating Temperature: | -4 °F |
Max Operating Temperature: | 104 °F |
Relative Humidity (operating): | 20 - 90% (non-condensing) |
COO: | Inquire |
TAA compliance: | Inquire |
UNSPSC Code: | 46171610 |
BRANDS | GEOVISION |
---|---|
UNSPSC | 46171610 |
Part# | GEO-84-TM01000-0010 |
MFG Part# | 84-TM01000-0010 |
Max Resolution | 352 x 288 |
Device Type | Thermal network camera |
Connectivity Technology | Wired |
Form Factor | Bullet |
Type | Fixed focal |
Digital Zoom | 2 |
Focus Adjustment | Automatic, manual |
Digital Video Format | H.264, MJPEG |
Digital Video Capture Resolution | 352 x 288 |
Focal Length | 40 mm |
