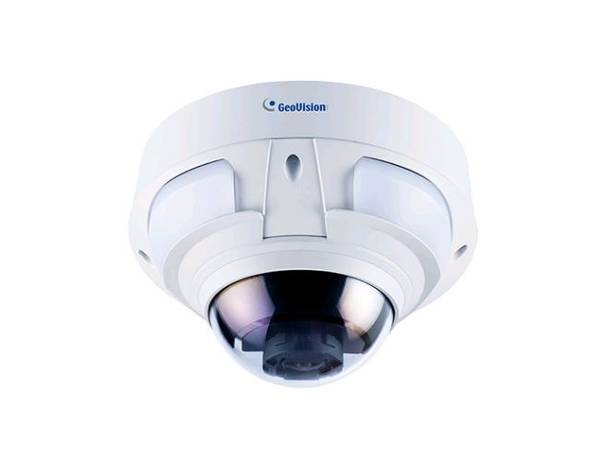

GV-VD5711 H265 5MP 4-8MM PIRIS IR VANDAL 5774772
SKU
5774772
- Primary Information
Product Description: GeoVision GV-VD5711 - network surveillance camera - dome Device Type: Network surveillance camera - fixed - dome - outdoor - vandal / ingress proof Audio: Yes: two-way audio capability Dimensions (WxDxH): 6.9 in x 6.9 in x 4.6 in Weight: 4.03 lbs Connectivity Technology: Wired Camera: Color - Day&Night Optical Zoom: 2 x Max Resolution: 2592 x 1944 Frame Rate (max): 30 frames per second Motion Detection: Yes Optical Sensor Type: PS CMOS - 1/1.8" - 5 MP Minimum Illumination: 0.04 lux - color ¦ 0.03 lux - B&W ¦ 0 lux - IR Focal Length Control: Motorized zoom Focal Length: 4 mm - 8 mm Lens Mounting: Φ14 mount Focus Adjustment: Automatic Lens Iris: F/1.65 - auto iris (P-Iris) Panning Range (degree): -90 to +90 Tilting Range (degree): 0 to 85 Interfaces: Composite video, Ethernet 10Base-T/100Base-T Voltage: DC 12 V / AC 24 V / PoE Plus Features: Auto white balance, manual white balance, auto gain control, Wide Dynamic Range (WDR), infrared-cut filter, flickerless, image flip, Backlight Compensation (BLC), Defog, metering control, ONVIF (Profile S) support, ONVIF (Profile T) support, temperature detector, Intelligent IR Technology, 3D Noise Reduction Technology, Smart Stream, tampering alarm, Privacy Mask Function, text overlay, IP address filtering Environmental Parameters (operating): -4 °F - 122 °F; 10 - 90% (non-condensing) relative humidity - General
Device Type: Network surveillance camera Audio Support: Yes: two-way audio capability Audio Formats: G.711 Form Factor: Dome Connectivity Technology: Wired Width: 6.9 in Depth: 6.9 in Height: 4.6 in Weight: 4.03 lbs - Camera
Type: Color - Day&Night - fixed - outdoor - vandal / ingress proof Digital Video Format: MJPEG, H.264, H.265 Max Digital Video Resolution: 2592 x 1944 Motion Detection: Yes Exposure Range: 1/5 sec - 1/8000 sec Minimum Illumination: 0.04 lux - color ¦ 0.03 lux - B&W ¦ 0 lux - IR Infrared LEDs: 6 Infrared Distance: 98 ft Video Capture: 2592 x 1944, 50 Hz @ 25 fps ¦ 2592 x 1520, 50 Hz @ 25 fps ¦ 2592 x 1944, 60 Hz @ 30 fps ¦ 2592 x 1520, 60 Hz @ 30 fps Features: Auto white balance, manual white balance, auto gain control, Wide Dynamic Range (WDR), infrared-cut filter, flickerless, image flip, Backlight Compensation (BLC), Defog, metering control, ONVIF (Profile S) support, ONVIF (Profile T) support, temperature detector, Intelligent IR Technology, 3D Noise Reduction Technology, Smart Stream, tampering alarm, Privacy Mask Function, text overlay, IP address filtering - Image Sensor
Type: 5 MP PS CMOS 1/1.8" - Lens Construction
Type: Φ14 mount - motorized zoom Optical Zoom: 2 x Focal Length: 4 mm - 8 mm Lens Iris: F/1.65 auto iris (P-Iris) Focus Adjustment: Automatic Horizontal Field of View (degree): 48 - 90 - Panning
Range (degree): -90 to +90 - Tilting
Range (degree): 0 to 85 - Interfaces
Video: Composite video Network Interface: Ethernet 10Base-T/100Base-T Network Protocols: DHCP, DNS, DDNS, FTP, HTTP, HTTPS, ICMP, IPv4, IPv6, NTP, QOS, RTCP, RTSP, SNMP, SMTP, SSL, TCP/IP, UDP, UPnP, 3GPP/ISMA Alarm Inputs Qty: 1 Alarm Outputs Qty: 1 - Expansion / Connectivity
Ports: LAN - RJ-45 ¦ Audio line in - 3.5 mm jack ¦ Audio line out - 3.5 mm jack ¦ Composite video - BNC Supported Memory Cards: microSD Card, microSDHC Card, microSDXC UHS-I Card Encryption Algorithm: 256-bit AES - Miscellaneous
Included Accessories: Torx wrench, safety wire, 2 x RJ-45 connector, backplate, installation sticker, 4 anchors, 4 screws, flat screw, short screw, silica gel, ruler, conduit adapter, PG21 conduit connector Compliant Standards: IEEE 802.1x, IEEE 802.3at, IP67, IK10+, FCC, RCM, LVD, RoHS - Power
Power Requirements: DC 12 V / AC 24 V / PoE Plus - Environmental Parameters
Min Operating Temperature: -4 °F Max Operating Temperature: 122 °F Relative Humidity (operating): 10 - 90% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 46171610
| BRANDS | GEOVISION |
|---|---|
| UNSPSC | 46171610 |
| Part# | GEO-84-VD57110-0010 |
| MFG Part# | 84-VD57110-0010 |
| UPC | 4712896445433 |
| Max Resolution | 2592 x 1944 |
| Device Type | Network surveillance camera |
| Optical Zoom | 2 x |
| Connectivity Technology | Wired |
| Form Factor | Dome |
| Focus Adjustment | Automatic |
| Digital Video Format | H.264, H.265, MJPEG |
| Focal Length | 4 mm - 8 mm |
| Encryption Algorithm | 256-bit AES |
