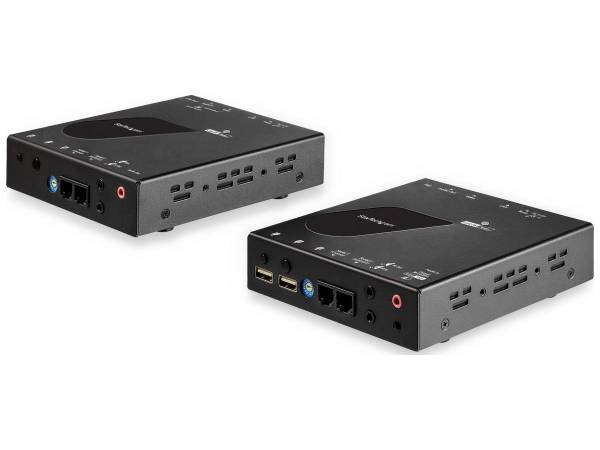

HDMI KVM EXTENDER OVER IP/ETHERNET 4K 6391435
SKU
6391435
CA$949.99
HDMI KVM Extender over IP transmitter receiver kit remotely controls KVM switch/console or PC from up to 330ft/100m over Cat5e/6 Ethernet network cable/IP enabled LAN - 4K UHD 30Hz /EDID Passthrough/USB2.0 HID/ Large Signage Display or Video Wall
Category: KVM Switch & AV Splitters
- Primary Information
Product Description: StarTech.com HDMI KVM Extender over IP Network - 4K 30Hz HDMI and USB over IP LAN or Cat5e/Cat6 Ethernet (100m/330ft) - Remote KVM Console - video/audio extender - HDMI - TAA Compliant Device Type: Video/audio extender Form Factor: External Data Transfer Rate: 12 Mbps Data Link Protocol: HDMI Max Transfer Distance: 62.2 miles Power: AC 100 - 240 V Dimensions (WxDxH): 4.6 in x 5.1 in x 1.1 in Weight: 21.51 oz TAA Compliant: Yes Manufacturer Warranty: 2-year warranty - General
Device Type: Video/audio extender Form Factor: External Color: Black - Networking
Connectivity Technology: Wired Data Link Protocol: HDMI Data Transfer Rate: 12 Mbps Max Resolution: 3840 x 2160 @ 30 Hz Max Transfer Distance: 62.2 miles Status Indicators: Connection status, video Features: EDID Pass-Through, 7.1 channel audio support - Expansion / Connectivity
Interfaces: 1 x HDMI (input) - 19 pin HDMI Type A female ¦ 1 x network (input) - RJ-45 ¦ 2 x network (input) - RJ-11 ¦ 1 x USB (input) - mini-USB Type B ¦ 2 x audio (input) female ¦ 2 x (input) - mini jack female ¦ 1 x HDMI (output) - 19 pin HDMI Type A female ¦ 1 x network (output) - RJ-45 ¦ 2 x network (output) - RJ-11 female ¦ 2 x USB 2.0 (output) - Type A female ¦ 2 x USB (output) - Type A ¦ 2 x audio (output) female ¦ 2 x (output) - mini jack female - Miscellaneous
Included Accessories: 2 x DB9 serial adapters, 8 rubber feet, screwdriver Cables Included: 2 x network cable ¦ 2 x serial cable ¦ 1 x HDMI cable - 4 ft ¦ 1 x USB cable - 5 ft Mounting Kit: Included MTBF: 60,000 hour(s) Compliant Standards: RoHS, REACH, FCC, WEEE TAA Compliant: Yes - Power
Power Device: External power adapter Installed Qty: 2 Voltage Required: AC 100 - 240 V Power Consumption Operational: 18 Watt - Dimensions & Weight
Width: 4.6 in Depth: 5.1 in Height: 1.1 in Weight: 21.51 oz - Dimensions & Weight (Shipping)
Shipping Width: 14.4 in Shipping Depth: 7.7 in Shipping Height: 12.8 in - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 80% - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43211604
| BRANDS | STARTECHCOM |
|---|---|
| UNSPSC | 43211604 |
| Part# | STC-SV565HDIP |
| MFG Part# | SV565HDIP |
| UPC | 65030877947 |
| Max Transfer Distance | 62.2 miles |
| Max Resolution | 3840 x 2160 @ 30 Hz |
| Device Type | Video/audio extender |
| Connectivity Technology | Wired |
| Data Transfer Rate | 12 Mbps |
| Form Factor | External |
| Data Link Protocol | HDMI |
| Color | Black |
