HIKVISION 1/1.2IN PROGRESSIVE SCAN CMOS; H.265+/H.265/H.264+/H.264/MJPEG; COLOR: 0.0005 LUX @(F1.0, AGC ON), 0 LUX WITH LED ON; 25/24FPS(3840 2160), 7914569
SKU
7914569
CA$482.80
1/1.2IN PROGRESSIVE SCAN CMOS; H.265+/H.265/H.264+/H.264/MJPEG; COLOR: 0.0005 LUX @(F1.0, AGC ON), 0 LUX WITH LED ON; 25/24FPS(3840 2160), 25FPS/30FPS(3200X1800, 2688 1520, 1920 1080); VCA FUNCTIONS; 3 STREAMS; 3D DNR; BLC; ICR; 3000K WARM LED; DC12V&POE; BUILT-IN MICRO SD/SDHC/SDXC SLOT; HIK-CONNECT CLOUD SERVICE; -U:BUILT-IN MICPHONE
Category: PC & Network Cameras
- Primary Information

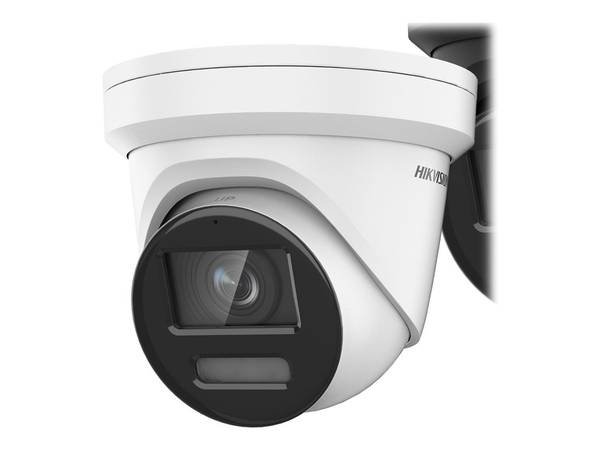

Product Description: Hikvision Pro Series (All) DS-2CD2387G2-LU - network surveillance camera - turret Device Type: Network surveillance camera - fixed - turret - dustproof / waterproof Audio: Yes: built-in microphone Dimensions (WxDxH): 5.4 in x 5.4 in x 4.7 in Weight: 30.68 oz Connectivity Technology: Wired Camera: Color - Day&Night Optical Zoom: 1.4 x Max Resolution: 3840 x 2160 Frame Rate (max): 60 frames per second Motion Detection: Yes Video Modes: 4K Optical Sensor Type: PS CMOS - 1/1.2" - 8 MP Minimum Illumination: 0.0005 lux - color - F1.0 - AGC on Focal Length Control: Fixed focal Focal Length: 2.8 mm - 4 mm Lens Mounting: M16 mount Lens Iris: F/1.0 - fixed iris Panning Range (degree): 0 to 360 Tilting Range (degree): 0 to 75 Interfaces: Ethernet 10Base-T/100Base-TX Voltage: DC 12 V / PoE Features: Backlight Compensation (BLC), sharpness control, white balance, saturation control, brightness control, contrast control, e-mail alerts, image mirror, Wide Dynamic Range (WDR), Privacy Mask Function, Highlight Compensation (HLC), Scene Change Detection, password protection, Region of Interest (ROI), Variable Bitrate (VBR), Constant Bitrate (CBR), intrusion detection, ONVIF (Profile S) support, ONVIF (Profile G) support, Pixel Counter Support, Line Crossing Detection, heartbeat, anti-flicker, Internet Server Application Programming Interface (ISAPI), DORI coverage, Vehicle Detection, IP address filtering, 3D digital noise reduction (DNR), region exiting detection, region entrance detection, HTTPs encryption, human detection, White Light, ONVIF (Profile T) support, metal housing, Automatic Network Replenishment (ANR), Face Capture, smart supplement light, Gain Control, 24/7 color imaging, rotate mode, 360° rotation, trigger capture, password reset via e-mail, WSSE, security audit log, video tampering alarm Manufacturer Warranty: 5-year warranty Environmental Parameters (operating): -22 °F - 140 °F; 95% (non-condensing) relative humidity - General
Device Type: Network surveillance camera Audio Support: Yes: built-in microphone Audio Formats: PCM, G.726, MP3, G.722.1, MP2L2, G.711a, G.711u Form Factor: Turret Connectivity Technology: Wired Width: 5.4 in Depth: 5.4 in Height: 4.7 in Weight: 30.68 oz Localization: Danish, Hungarian, Czech, Croatian, Slovenian, Thai, Slovak, Chinese (traditional), Vietnamese, Ukrainian, Brazilian Portuguese, English, German, French, Italian, Norwegian, Portuguese, Polish, Finnish, Swedish, Russian, Spanish, Dutch, Greek, Turkish, Bulgarian, Latvian, Lithuanian, Estonian, Serbian, Romanian, Japanese, Korean - Camera
Type: Color - Day&Night - fixed - dustproof / waterproof Digital Video Format: MJPEG, H.264, H.265, H.265+, H.264+ Max Digital Video Resolution: 3840 x 2160 Motion Detection: Yes Video Modes: 4K Exposure Range: 1/3 sec - 1/100000 sec Minimum Illumination: 0.0005 lux - color - F1.0 - AGC on Infrared LEDs: Yes Infrared Distance: 98 ft Digital Video Capture Resolution: 1280 x 720, 640 x 480, 1920 x 1080, 640 x 360, 3200 x 1800, 3840 x 2160, 2688 x 1520 Frame Rate (max): 60 frames per second Features: Backlight Compensation (BLC), sharpness control, white balance, saturation control, brightness control, contrast control, e-mail alerts, image mirror, Wide Dynamic Range (WDR), Privacy Mask Function, Highlight Compensation (HLC), Scene Change Detection, password protection, Region of Interest (ROI), Variable Bitrate (VBR), Constant Bitrate (CBR), intrusion detection, ONVIF (Profile S) support, ONVIF (Profile G) support, Pixel Counter Support, Line Crossing Detection, heartbeat, anti-flicker, Internet Server Application Programming Interface (ISAPI), DORI coverage, Vehicle Detection, IP address filtering, 3D digital noise reduction (DNR), region exiting detection, region entrance detection, HTTPs encryption, human detection, White Light, ONVIF (Profile T) support, metal housing, Automatic Network Replenishment (ANR), Face Capture, smart supplement light, Gain Control, 24/7 color imaging, rotate mode, 360° rotation, trigger capture, password reset via e-mail, WSSE, security audit log, video tampering alarm - Image Sensor
Type: 8 MP PS CMOS 1/1.2" - Lens Construction
Type: M16 mount - fixed focal Optical Zoom: 1.4 x Focal Length: 2.8 mm - 4 mm Lens Iris: F/1.0 fixed iris Horizontal Field of View (degree): 88 - 102 Vertical Field of View (degree): 47 - 52 Diagonal Field of View (degree): 104 - 124 - Panning
Range (degree): 0 to 360 - Tilting
Range (degree): 0 to 75 - Interfaces
Network Interface: Ethernet 10Base-T/100Base-TX Network Protocols: DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, PPPoE, IGMP, SSL, QOS, ISAPI, ISUP, SDK - Expansion / Connectivity
Ports: LAN/power - RJ-45 Supported Memory Cards: microSD Card, microSDHC Card, microSDXC Card - Miscellaneous
Compliant Standards: CB, IC, FCC CFR47 Part 15 B, REACH, IP67, LVD, KC, RCM, RoHS 2011/65/EU, TLS v1.2, TLS v1.1, WEEE 2012/19/EU, EN 55032:2015, UL 62368-1, Directive 1907/2006/EC, IEEE 802.1x, AS/NZS CISPR 32:2015, EN 50130-4:2011+A1:2014, KN32:2015, KN35:2015, IEC 60529:2013, EN 61000-3-2:2019, EN 62368-1:2014/A11:2017, EN 61000-3-3:2013+A1:2019, IEC 62368-1:2014+A11:2017, ICES-003 issue 7 - Power
Power Requirements: DC 12 V / PoE - 0.46 A - Manufacturer Warranty
Service & Support: Limited warranty - 5 years - Dimensions & Weight (Shipping)
Shipping Width: 6.7 in Shipping Depth: 6.7 in Shipping Height: 5.9 in Shipping Weight: 2.56 lbs - Environmental Parameters
Min Operating Temperature: -22 °F Max Operating Temperature: 140 °F Relative Humidity (operating): 95% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 46171610
| BRANDS | HIKVISION |
|---|---|
| UNSPSC | 46171610 |
| Part# | HIK-DS-2CD2387G2-LU(4MM)(C) |
| MFG Part# | DS-2CD2387G2-LU(4MM)(C) |
| UPC | 842571139747 |
| Max Resolution | 3840 x 2160 |
| Device Type | Network surveillance camera |
| Optical Zoom | 1.4 x |
| Connectivity Technology | Wired |
| Form Factor | Turret |
| Type | M16 mount - fixed focal |
| Digital Video Format | H.264, H.264+, H.265, H.265+, MJPEG |
| Digital Video Capture Resolution | 1280 x 720, 1920 x 1080, 2688 x 1520, 3200 x 1800, 3840 x 2160, 640 x 360, 640 x 480 |
| Focal Length | 2.8 mm - 4 mm |
