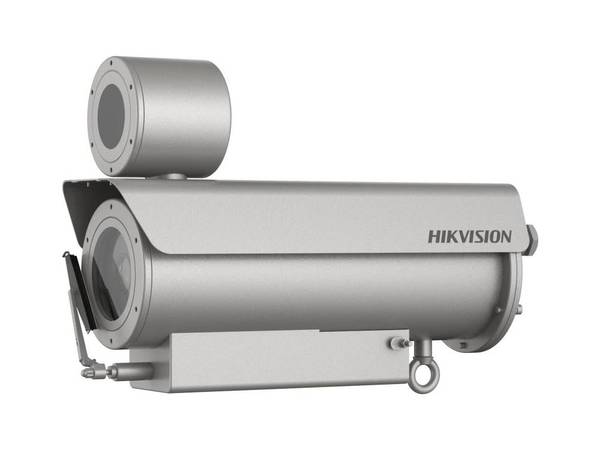

HIKVISION 1/1.8IN PROGRESSIVE SCAN CMOS;UP TO 1920 1080 @30FPS RESOLUTION ;MIN. ILLUMINATION:COLOR: 0.0005 LUX @ (F1.2, AGC ON) B/W: 0.0001 LUX @ (F 7915065
SKU
7915065
CA$11,016.00
1/1.8IN PROGRESSIVE SCAN CMOS;UP TO 1920 1080 @30FPS RESOLUTION ;MIN. ILLUMINATION:COLOR: 0.0005 LUX @ (F1.2, AGC ON) B/W: 0.0001 LUX @ (F1.2, AGC ON) ,0 LUX WITH IR;36 OPTICAL ZOOM, 12 DIGITAL ZOOM;TURE WDR, 3D DNR, HLC, BLC;100 VAC TO 240 VAC & POE+ (IEEE802.3AT CLASS4); UP TO 200 M IR DISTANCE;SUPPORT H.265+/H.265 VIDEO COMPRESSION; FACE CAPTUREEXPLOSION-PROOF CERTIFICATE NO.:EX II 2 G EX DB IIC T6 GB, EX II 2 D EX TB IIIC T80 C DBEX DB IIC T6 GB, EX TB IIIC T80 C DBSTAINLESS STEEL 316L; ANTI-CORROSION: NEMA 4X;C5;
Category: PC & Network Cameras
- Primary Information
Camera Type: Network Camera Connectivity Technology: Wired Interface Type: RJ-45 Camera Sensor Type: CMOS Camera Sensor Size: 1/1.8" Focal Length: 6-216 mm Optical Zoom: 36 x Digital Zoom: 12x Focus Adjustment: Manual; Auto; Semi-auto Interfaces & Connections: 1 RJ45 10 M/100 M Ethernet; Audio 1-ch audio input and 1-ch audio output; Alarm 1-ch alarm input and 1-ch alarm output; 1 RS-485 Voltage Input: 100 VAC to 240 VAC & PoE+ Features: Ex-mark: ATEX: Ex II 2GD Ex db IIC T6 Gb /Ex tb IIIC T80 Db; IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80 Db; 1/1.8" progressive scan CMOS; Up to 1920 × 1080@30fps resolution; 36× optical zoom, 12× digital zoom; 120 dB WDR, HLC, BLC, 3D DNR, Defog, EIS, Regional Exposure, Regional Focus; Up to 200 m IR distance; Support H.265+/H.265 video compression - Capture
Digital Video Capture Speed: 30 Frames per second Digital Video Capture Resolution: 1920 x 1080 Digital Video Format: H.264+; H.265 - Dimensions&Miscellaneous
Width: 20.2 Inch Depth: 6.65 Inch Height: 12.13 Inch - General
Model: DS-2DB4236I-CWX(T5/316L) Maximum Angle of View: Horizontal field of view: 59 degree to 1.98 degree (wide-tele); Vertical field of view: 34.16 degree to1.12 degree (wide-tele); Diagonal field of view: 67.1 degree to 2.3 degree (wide-tele) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 46171610
| BRANDS | HIKVISION |
|---|---|
| UNSPSC | 46171610 |
| Part# | HIK-DS-2DB4236I-CWX(T5/316L) |
| MFG Part# | DS-2DB4236I-CWX(T5/316L) |
| UPC | 842571130683 |
| Optical Zoom | 36 x |
| Camera Type | Network Camera |
| Connectivity Technology | Wired |
| Digital Zoom | 12x |
| Focus Adjustment | Auto, Manual, Semi-auto |
| Digital Video Format | H.264+, H.265 |
| Digital Video Capture Resolution | 1920 x 1080 |
| Focal Length | 6-216 mm |
| Camera Sensor Size | 1/1.8" |
| Camera Sensor Type | CMOS |
| Interface Type | RJ-45 |
