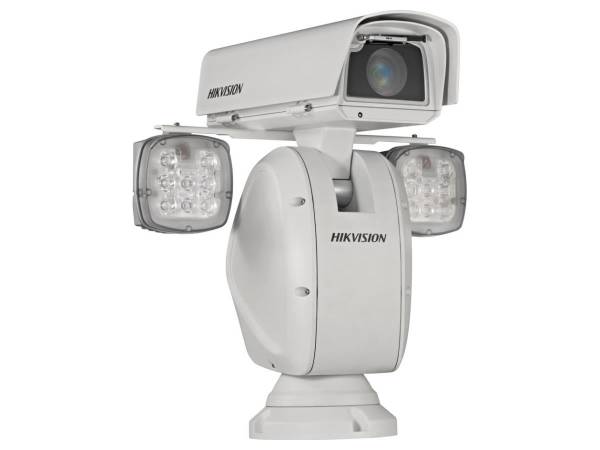

HIKVISION 1/1.8IN PROGRESSIVE SCAN CMOS UP TO 1920 1080 RESOLUTION MIN. ILLUMINATION:COLOR: 0.005 LUX @(F1.2, AGC ON) ,B/W: 0.001 LUX @(F1.2, AGC ON 7915028
SKU
7915028
CA$6,426.00
1/1.8IN PROGRESSIVE SCAN CMOS UP TO 1920 1080 RESOLUTION MIN. ILLUMINATION:COLOR: 0.005 LUX @(F1.2, AGC ON) ,B/W: 0.001 LUX @(F1.2, AGC ON),0 LUX WITH IR RAIN-SENSING AUTO WIPER 40 OPTICAL ZOOM, 16 DIGITAL ZOOM 140DB WDR, 3D DNR, HLC, BLC, SMART IR 24 VAC SUPPORT H.265+/H.265 VIDEO COMPRESSION SUPPORT UP TO 400 M IR DISTANCE
Category: PC & Network Cameras
- Primary Information
Camera Type: Network Camera Connectivity Technology: Wired Interface Type: RJ-45 Camera Sensor Type: CMOS Camera Sensor Size: 1/1.8" Effective Sensor Resolution: 2 MP Focal Length: 6 - 240 mm Optical Zoom: 40 x Digital Zoom: 16x Focus Adjustment: Semi-auto; Auto; Manual Interfaces & Connections: 1 RJ45 10 M/100 M Ethernet Interface; Built-in memory card slot; Audio 1 input/1 output; 7 alarm inputs, 2 alarm outputs; RS-485 Voltage Input: 24 VAC+/-25% Features: 1/1.8" progressive scan CMOS; Up to 1920 × 1080 resolution; Min. illumination:Color: 0.005 Lux @(F1.2, AGC ON) ,B/W: 0.001 Lux @(F1.2, AGC ON),0 Lux with IR; Rain-sensing auto wiper; 40× optical zoom, 16×digital zoom; 140dB WDR, 3D DNR, HLC, BLC, Smart IR; 24 VAC; Support H.265+/H.265 video compression; Support up to 400 m IR distance - Capture
Digital Video Capture Speed: 30 Frames per second Digital Video Capture Resolution: 1920 x 1080 Digital Video Format: H.264; H.265; MJPEG - Dimensions&Miscellaneous
Width: 18.11 Inch Depth: 15.35 Inch Height: 19.33 Inch - General
Model: DS-2DY9240IX-A(T5) Maximum Angle of View: Horizontal field of view: 59.0 degree to 1.8 degree (wide-tele); Vertical field of view: 33.7 degree to 1.1 degree (wide-tele); Diagonal field of view: 63.4 degree to 2.1 degree (wide-tele) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 46171610
| BRANDS | HIKVISION |
|---|---|
| UNSPSC | 46171610 |
| Part# | HIK-DS-2DY9240IX-A(T5) |
| MFG Part# | DS-2DY9240IX-A(T5) |
| UPC | 842571143904 |
| Optical Zoom | 40 x |
| Effective Sensor Resolution | 2 MP |
| Camera Type | Network Camera |
| Connectivity Technology | Wired |
| Digital Zoom | 16x |
| Focus Adjustment | Auto, Manual, Semi-auto |
| Digital Video Format | H.264, H.265, MJPEG |
| Digital Video Capture Resolution | 1920 x 1080 |
| Focal Length | 6 - 240 mm |
| Camera Sensor Size | 1/1.8" |
| Camera Sensor Type | CMOS |
| Interface Type | RJ-45 |
