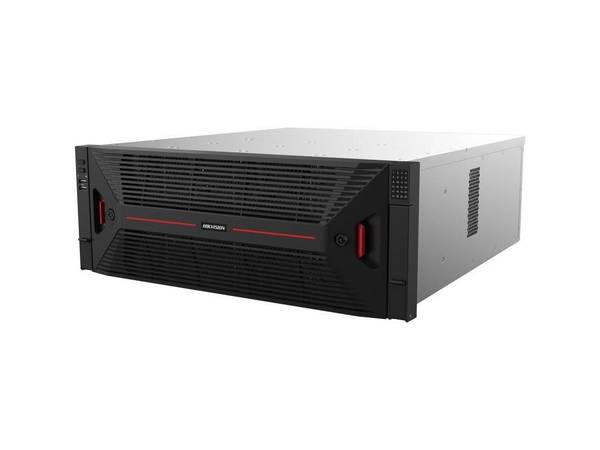

HIKVISION 128-CH 4U 8K SUPER NVR 7497433
SKU
7497433
CA$8,812.80
128-CH 4U 8K SUPER NVR, 1024MBPS BIT RATE INPUT MAX(UP TO 128-CH IP VIDEO), 24 SATA INTERFACES(UP TO 20TB), ALARM I/O: 16/8, RAID0,1,5,6,10 SUPPORTED, 4U CASE,19IN
Category: DVRs & Security Storage
- Primary Information
Product Description: Hikvision Ultra Series DS-96128NI-H24R - standalone NVR - 128 channels Device Type: NVR - 128 channels - networked - rack-mountable - 4U IP Cameras Supported: 128 Frame Rate: 30 fps, 60 fps (record) / 30 fps (playback) Compression Format: H.265+, H.265, H.264+, H.264, G.711ulaw, G.711alaw, G.722, G.726, AAC, MP2L2, PCM Image Resolution: 4096x2160, 3840x2160, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768, 7680x4320 Hard Drive(s) Supported: Quantity: 24 - total capacity: 480 TB Voltage: 100 - 240 V Dimensions (WxDxH) - without HDD: 17.6 in x 19.3 in x 6.8 in Weight: 55.12 lbs - General
Device Type: NVR - rack-mountable - 4U Video Channels: 128 IP Cameras Supported: 128 Audio Channels: 1 Image Resolution: 4096x2160, 3840x2160, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768, 7680x4320 Compression Format: H.265+, H.265, H.264+, H.264, G.711ulaw, G.711alaw, G.722, G.726, AAC, MP2L2, PCM - Security DVR
Frame Rate (Playback): 30 fps Frame Rate (Record): 30 fps, 60 fps Video Recording Resolution: 32 Megapixels, 24 Megapixels, 12 Megapixels, 8 Megapixels, 6 Megapixels, 5 Megapixels, 4 Megapixels, 3 Megapixels, 1920x1080, 1280x720 Networked: Yes Features: Automatic number-plate recognition (ANPR), RAID 0 support, RAID 1 support, RAID 10 support, RAID 5 support, RAID 6 support, 16-channel synchronized playback, people counting, Heat Map, motion detection, Line Crossing Detection, intrusion detection, Video Content Analytics (VCA) - Hard Drive
Quantity Supported: 24 Interface: Serial ATA Supported Max Total Capacity: 480 TB - Networking
DDNS Support: Yes Network Interfaces: Ethernet 2.5GBase-T Supported Protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, ISUP, UPnP, HTTP, HTTPS Features: TLS encryption - Connections
Video Output Ports: HDMI x 2, VGA x 1, DisplayPort x 2 Audio Input Ports: Mini-phone 3.5 mm x 1 Audio Output Ports: Mini-phone 3.5 mm x 1 Alarm Ports: Alarm output x 8, alarm input x 16 Network Port: 2.5GBase-T x 4 Other Ports: eSATA x 1, serial RS-485 x 1, serial RS-232 x 1, USB 2.0 x 2, USB 3.0 x 4 - Power
Voltage: 100 - 240 V Frequency: 50/60 Hz Power Consumption: 75 Watt Power Consumption Details: Without HDD - Dimensions & Weight
Width: 17.6 in Depth: 19.3 in Height: 6.8 in Weight: 55.12 lbs Comments: Without HDD - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 122 °F Humidity Range Operating: 10 - 90% - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 52161516
| BRANDS | HIKVISION |
|---|---|
| UNSPSC | 52161516 |
| Part# | HIK-DS-96128NI-H24R |
| MFG Part# | DS-96128NI-H24R |
| UPC | 842571151510 |
| Device Type | NVR - rack-mountable - 4U |
