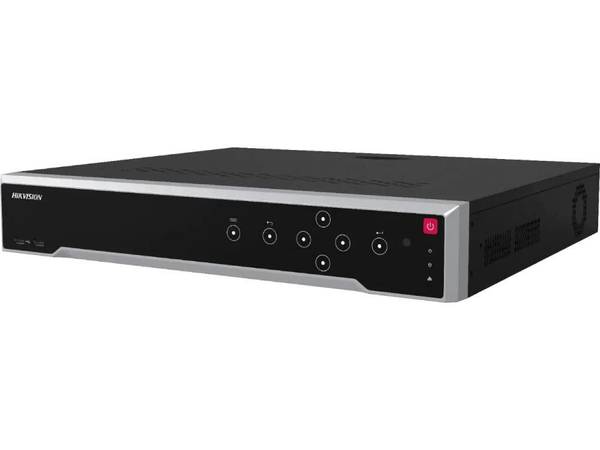

HIKVISION 16-CH POE INTERFACES, 8-CH 8 MP OR 16-CH 4MP DECODING CAPACITY, UP TO 32 MP RESOLUTION,320 MBPS INCOMING BANDWIDTH, ALARM IO: 16 9,2 HDMI 7241307
SKU
7241307
CA$1,722.10
16-CH POE INTERFACES, 8-CH 8 MP OR 16-CH 4MP DECODING CAPACITY, UP TO 32 MP RESOLUTION,320 MBPS INCOMING BANDWIDTH, ALARM IO: 16 9,2 HDMI OUPUTS(UP TO 8K)
Category: DVRs & Security Storage
- Primary Information
Product Description: Hikvision Ultra Series DS-7732NI-M4/16P - standalone NVR - 32 channels Device Type: NVR - 32 channels - networked - rack-mountable - 1.5U IP Cameras Supported: 32 Frame Rate: 30 fps (playback) Compression Format: G.726, H.264, AAC, H.265, H.264+, G.722, H.265+, G.711ulaw, G.711alaw, MP2L2 TV System: NTSC/PAL Image Resolution: 1280x768, 1600x1200, 1280x720, 1920x1080, 1024x768, 704x480 (NTSC), 704x576 (PAL), 1280x1024, 3840x2160, 2560x1440, 7680x4320 Hard Drive(s) Supported: Quantity: 4 - total capacity: 64 TB Voltage: 100 - 240 V Dimensions (WxDxH) - without HDD: 17.5 in x 15.7 in x 3 in Weight: 11.02 lbs - General
Device Type: NVR - rack-mountable - 1.5U Video Channels: 32 IP Cameras Supported: 32 Audio Channels: 1 TV System: NTSC/PAL Image Resolution: 1280x768, 1600x1200, 1280x720, 1920x1080, 1024x768, 704x480 (NTSC), 704x576 (PAL), 1280x1024, 3840x2160, 2560x1440, 7680x4320 Compression Format: G.726, H.264, AAC, H.265, H.264+, G.722, H.265+, G.711ulaw, G.711alaw, MP2L2 Compliant Standards: ANSI C63.4-2014, IEEE 802.3af, IEEE 802.3at, EN 50130-4:2011+A1:2014, EN 61000-3-3:2013+A1:2019, FCC Part 15 Subpart B, EN 55032:2015+A1:2020, EN 55035:2017+A11:2020, EN IEC 61000-3-2:2019+A1:2021 - Security DVR
Frame Rate (Playback): 30 fps Networked: Yes Features: Power over Ethernet (PoE) - Hard Drive
Quantity Supported: 4 Interface: Serial ATA Supported Max Total Capacity: 64 TB - Networking
DDNS Support: Yes Network Interfaces: Ethernet 10Base-T/100Base-TX/1000Base-T Supported Protocols: DDNS, DHCP, DNS, HTTP, NTP, SMTP, TCP/IP, SNMP, RTSP, HTTPS, UPnP, IPv4, IPv6, NFS, SADP, ISUP Features: Two-way audio support - Connections
Video Output Ports: HDMI x 2, BNC x 1, VGA x 1 Video Output Signal Level: 1.0Vp-p 75 Ohm Audio Input Ports: RCA x 1 Audio Output Ports: RCA x 2 Alarm Ports: Alarm input x 16, alarm output x 9 Camera Control Interface (PTZ): RS-232/485 x 2 Network Port: 10/100Base-T x 16 (PoE) / 10/100/1000Base-T x 1 Other Ports: USB 2.0 x 2, eSATA x 1, USB 3.0 x 1 - Power
Voltage: 100 - 240 V Frequency: 50/60 Hz Power Consumption: 15 Watt Power Consumption Details: Without HDD, without PoE - Dimensions & Weight
Width: 17.5 in Depth: 15.7 in Height: 3 in Weight: 11.02 lbs Comments: Without HDD - Environmental Parameters
Min Operating Temperature: 14 °F Max Operating Temperature: 131 °F Humidity Range Operating: 10 - 90% - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 52161516
| BRANDS | HIKVISION |
|---|---|
| UNSPSC | 52161516 |
| Part# | HIK-DS-7732NI-M4/16P |
| MFG Part# | DS-7732NI-M4/16P |
| UPC | 842571145991 |
| Device Type | NVR - rack-mountable - 1.5U |
