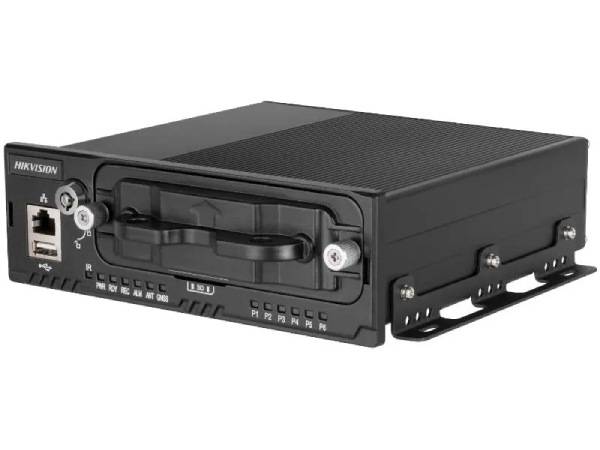

Product Description: | Hikvision AE-MN5043 (RJ45) - standalone NVR - 4 channels |
Device Type: | NVR - 4 channels (8 max supported) - networked |
IP Cameras Supported: | 4 |
Frame Rate: | 25 fps (PAL), 30 fps (NTSC) |
Compression Format: | H.265, H.264, G.711A, G.711u, G.722.1, G.726 |
TV System: | NTSC/PAL |
Image Resolution: | 1920x1080, 1280x720 |
Hard Drive(s) Supported: | Quantity: 2 - total capacity: 2 TB |
Power Over Ethernet (PoE): | PoE |
Voltage: | 9 - 32 V |
Dimensions (WxDxH) - without HDD: | 8.9 in x 8.1 in x 2.4 in |
Weight: | 3.66 lbs |
Manufacturer Warranty: | 3 years |
Device Type: | NVR |
Video Channels: | 4 |
Max Supported Video Channels: | 8 |
IP Cameras Supported: | 4 |
Audio Channels: | 1 |
TV System: | NTSC/PAL |
Image Resolution: | 1920x1080, 1280x720 |
Compression Format: | H.265, H.264, G.711A, G.711u, G.722.1, G.726 |
Compliant Standards: | FCC, e-mark certified, EN50155, CB, EN 45545, RoHS 2.0, ISO 7637-2, FCC Part 15 Subpart B, EN 50498:2010, EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, IEC 62368-1:2018, EN IEC 62368-1:2020+A11:2020, Directive 2011/65/EU, Directive 2015/863/EU, EN 50121-3-2:2016, EN 45545-2, EN 50153 |
Warranty: | 3 years |
Frame Rate (Record): | 25 fps (PAL), 30 fps (NTSC) |
Video Recording Resolution: | 5 Megapixels, 4CIF, 2CIF, CIF, 1920x1080, 1280x720 |
Networked: | Yes |
Features: | SD card slot, built-in G-sensor, built-in GNSS receiver, SIM card slot, Power over Ethernet (PoE) |
Quantity Supported: | 2 |
Interface: | Serial ATA |
Supported Max Total Capacity: | 2 TB |
Features: | Dual stream support |
Power Over Ethernet (PoE): | PoE |
Network Interfaces: | Ethernet 10Base-T/100Base-TX |
Features: | GPS/GLONASS support, automatic shutdown, aluminum housing, fanless, LED status indicator |
Video Input Ports: | FAKRA x 1 |
Video Output Ports: | VGA x 1 |
Alarm Ports: | Alarm input x 4, alarm output x 2 |
Network Port: | 10/100Base-TX x 4 (PoE) / 10/100Base-TX x 1 |
Other Ports: | USB 2.0 x 2, serial RS-422 x 1, serial RS-232 x 1, Wi-Fi antenna x 1, cellular antenna x 1 |
Voltage: | 9 - 32 V |
Power Consumption: | 45 Watt |
Power Consumption Details: | Without HDD, without PoE |
Width: | 8.9 in |
Depth: | 8.1 in |
Height: | 2.4 in |
Weight: | 3.66 lbs |
Comments: | Without HDD |
Min Operating Temperature: | -4 °F |
Max Operating Temperature: | 140 °F |
Humidity Range Operating: | 10 - 95% (non-condensing) |
COO: | Inquire |
TAA compliance: | Inquire |
UNSPSC Code: | 52161516 |
BRANDS | HIKVISION |
---|---|
UNSPSC | 52161516 |
Part# | HIK-AE-MN5043 |
MFG Part# | AE-MN5043 |
UPC | 842571149357 |
Device Type | NVR |
