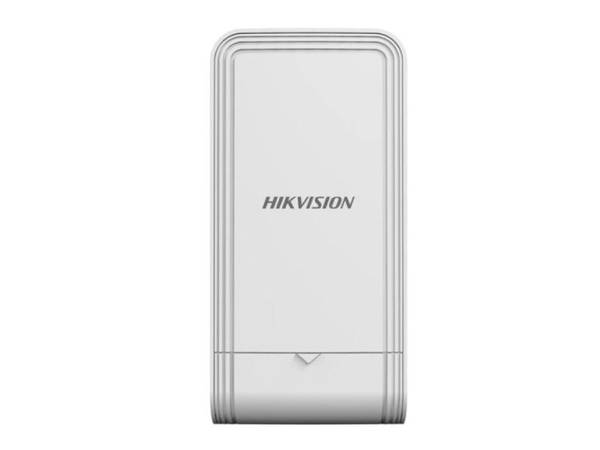

HIKVISION 5GHZ 867MBPS OUTDOOR WIRELESS BRIDGE 5KM 7290110
SKU
7290110
Category: Bridges & Routers
- Primary Information
Product Description: Hikvision DS-3WF02C-5AC/O - wireless bridge - Wi-Fi 5 Device Type: Wireless bridge Form Factor: Pole mountable Data Link Protocol: IEEE 802.11a, IEEE 802.11n, IEEE 802.11ac Frequency Band: 5 GHz Performance: Channel width: 20 / 40 / 80 MHz Included Accessories: PoE injector, 2 binding tapes Power Over Ethernet (PoE) Supported: Passive PoE Dimensions (WxDxH): 3.6 in x 2.3 in x 7.4 in Weight: 10.83 oz - General
Device Type: Wireless bridge Width: 3.6 in Depth: 2.3 in Height: 7.4 in Weight: 10.83 oz - Networking
Form Factor: Pole mountable Connectivity Technology: Wireless Data Transfer Rate: 867 Mbps Data Link Protocol: IEEE 802.11a, IEEE 802.11n, IEEE 802.11ac Remote Management Protocol: HTTPS, SSH Frequency Band: 5 GHz Max Range Open Space: 3 miles Performance: Channel width: 20 / 40 / 80 MHz Status Indicators: Power, LAN, signal Features: Syslog support, NTP time synchronization, Transmit Power Control (TPC), Time Division Multiple Access (TDMA), Dynamic Frequency Selection (DFS), Point-to-Point (PtP) link mode, Point-to-Multipoint (PtMP) link mode Encryption Algorithm: WPA2-PSK - Antenna
Gain Level: 12 dBi - Expansion / Connectivity
Interfaces: 1 x 1000Base-T (PoE) - RJ-45 ¦ 1 x 1000Base-T - RJ-45 - Miscellaneous
Included Accessories: PoE injector, 2 binding tapes Compliant Standards: FCC Part 15.247, UL 60950-1, EN 62311, EN 300.440, RoHS 2011/65/EU, WEEE 2012/19/EU, EN 301 893, EN 301 489-3, REACH 2006/1907/EC, EN 301 489-17, AS/NZS CISPR 32:2015, IEC 62368-1: 2014 Second Edition, EN 50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017, ICES-003:2020 Issue 7, EN 55032:2015+A11:2020, EN55035:2017+A11:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1: 2019 - Power
Power Over Ethernet (PoE) Supported: Passive PoE Power Device: External power adapter Power Consumption Operational: 2.65 Watt - Dimensions & Weight (Shipping)
Shipping Width: 5.2 in Shipping Depth: 3.6 in Shipping Height: 9 in Shipping Weight: 28.46 oz - Environmental Parameters
Min Operating Temperature: -22 °F Max Operating Temperature: 158 °F Humidity Range Operating: 5 - 95% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222609
| BRANDS | HIKVISION |
|---|---|
| UNSPSC | 43222609 |
| Part# | HIK-DS-3WF02C-5AC/O |
| MFG Part# | DS-3WF02C-5AC/O |
| UPC | 842571147070 |
| Device Type | Wireless bridge |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 867 Mbps |
| Form Factor | Pole mountable |
| Data Link Protocol | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n |
| Frequency Band | 5 GHz |
| Remote Management Protocol | HTTPS, SSH |
| Encryption Algorithm | WPA2-PSK |
