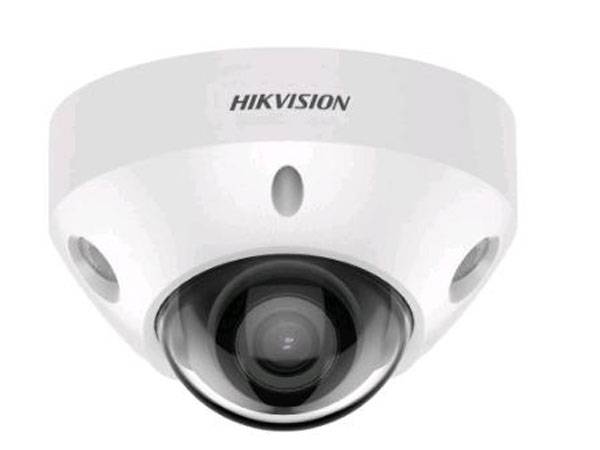

HIKVISION OTCD 2.8MM 4MP 24/7 COLOR 7329428
SKU
7329428
CA$405.00
ColorVu&AcuSense Outdoor Compact Dome, 4MP, H265+, 2.8mm, Colorful day and night, White LED; DC12V&PoE; HIK-Connect cloud service; Built-in mic
Category: PC & Network Cameras
- Primary Information
Product Description: Hikvision Pro Series (All) DS-2CD2547G2-LS - network surveillance camera - dome Device Type: Network surveillance camera - fixed - dome - dustproof / waterproof / vandal-proof Audio: Yes: built-in microphone Dimensions (WxDxH): 4.5 in x 4.5 in x 2.9 in Weight: 14.11 oz Connectivity Technology: Wired Camera: Color - Day&Night Max Resolution: 2688 x 1520 Frame Rate (max): 30 frames per second Motion Detection: Yes Optical Sensor Type: PS CMOS - 1/1.8" - 4 MP Minimum Illumination: 0.0005 lux - color - F1.0 - AGC on ¦ 0 lux - white light Focal Length Control: Fixed focal Focal Length: 2.8 mm Lens Mounting: M16 mount Focus Adjustment: (min distance 7.5 ft) Lens Iris: F/1.0 - fixed iris Panning Range (degree): -30 to +30 Tilting Range (degree): 0 to 75 Interfaces: Ethernet 10Base-T/100Base-TX Voltage: DC 12 V / PoE Class 3 Features: Backlight Compensation (BLC), sharpness control, white balance, saturation control, brightness control, contrast control, image mirror, Wide Dynamic Range (WDR), Privacy Mask Function, Highlight Compensation (HLC), Scene Change Detection, NAS-Ready, tamper-detection, password protection, Region of Interest (ROI), Variable Bitrate (VBR), Constant Bitrate (CBR), intrusion detection, 3D Digital Noise Reduction Technology, ONVIF (Profile S) support, ONVIF (Profile G) support, Pixel Counter Support, Line Crossing Detection, heartbeat, anti-flicker, DORI coverage, region exiting detection, region entrance detection, HTTPs encryption, White Light, motion detection, perimeter protection, ONVIF (Profile T) support, Automatic Network Replenishment (ANR), Scalable Video Coding (SVC), Face Capture, TLS encryption protocol, Gain Control, Hikvision ColorVu technology, plastic housing with metal base, rotate mode, 23m observe distance, 11m recognize distance, 58m detection distance, 6m identify distance Manufacturer Warranty: 3-year warranty Environmental Parameters (operating): -22 °F - 140 °F; 0 - 95% (non-condensing) relative humidity - General
Device Type: Network surveillance camera Audio Support: Yes: built-in microphone Audio Formats: AAC, PCM, G.726, MP3, G.722.1, MP2L2, G.711a, G.711u Form Factor: Dome Connectivity Technology: Wired Width: 4.5 in Depth: 4.5 in Height: 2.9 in Weight: 14.11 oz - Camera
Type: Color - Day&Night - fixed - dustproof / waterproof / vandal-proof Digital Video Format: MJPEG, H.264, H.265, H.265+, H.264+ Max Digital Video Resolution: 2688 x 1520 Motion Detection: Yes Exposure Range: 1/3 sec - 1/100000 sec Minimum Illumination: 0.0005 lux - color - F1.0 - AGC on ¦ 0 lux - white light Video Capture: 2688 x 1520, 50 Hz @ 25 fps ¦ 1920 x 1080, 50 Hz @ 25 fps ¦ 1280 x 720, 50 Hz @ 25 fps ¦ 2688 x 1520, 60 Hz @ 30 fps ¦ 1920 x 1080, 60 Hz @ 30 fps ¦ 1280 x 720, 60 Hz @ 30 fps ¦ 640 x 480, 50 Hz @ 25 fps ¦ 640 x 360, 50 Hz @ 25 fps ¦ 640 x 480, 60 Hz @ 30 fps ¦ 640 x 360, 60 Hz @ 30 fps Features: Backlight Compensation (BLC), sharpness control, white balance, saturation control, brightness control, contrast control, image mirror, Wide Dynamic Range (WDR), Privacy Mask Function, Highlight Compensation (HLC), Scene Change Detection, NAS-Ready, tamper-detection, password protection, Region of Interest (ROI), Variable Bitrate (VBR), Constant Bitrate (CBR), intrusion detection, 3D Digital Noise Reduction Technology, ONVIF (Profile S) support, ONVIF (Profile G) support, Pixel Counter Support, Line Crossing Detection, heartbeat, anti-flicker, DORI coverage, region exiting detection, region entrance detection, HTTPs encryption, White Light, motion detection, perimeter protection, ONVIF (Profile T) support, Automatic Network Replenishment (ANR), Scalable Video Coding (SVC), Face Capture, TLS encryption protocol, Gain Control, Hikvision ColorVu technology, plastic housing with metal base, rotate mode, 23m observe distance, 11m recognize distance, 58m detection distance, 6m identify distance - Image Sensor
Type: 4 MP PS CMOS 1/1.8" - Lens Construction
Type: M16 mount - fixed focal Focal Length: 2.8 mm Lens Iris: F/1.0 fixed iris Min Focus Distance: 7.5 ft Horizontal Field of View (degree): 112 Vertical Field of View (degree): 61 Diagonal Field of View (degree): 134 - Panning
Range (degree): -30 to +30 - Tilting
Range (degree): 0 to 75 - Interfaces
Network Interface: Ethernet 10Base-T/100Base-TX Network Protocols: DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, PPPoE, SMB, IGMP, SSL, QOS, CIFS, NFS Alarm Inputs Qty: 1 Alarm Outputs Qty: 1 - Expansion / Connectivity
Ports: LAN/power - RJ-45 ¦ Audio line in ¦ Audio line out Supported Memory Cards: microSD Card, microSDHC Card, microSDXC Card - Miscellaneous
Compliant Standards: IC, IEC 60950-1, EN 60950-1, FCC CFR47 Part 15 B, IP67, RCM, RoHS 2011/65/EU, TLS v1.2, TLS v1.1, WEEE 2012/19/EU, EN 55032:2015, LoA, IEEE 802.3af, REACH 2006/1907, UL 62368-1, IEEE 802.1x, AS/NZS CISPR 32:2015, EN 50130-4:2011+A1:2014, KN32:2015, KN35:2015, IEC 60529:2013, IEC 62262:2002, EN 61000-3-2:2019, EN 62368-1:2014/A11:2017, EN 61000-3-3:2013+A1:2019, IEC 62368-1:2014+A11:2017, ICES-003:2020 Issue 7, IK08 - Power
Power Requirements: DC 12 V / PoE Class 3 - Manufacturer Warranty
Service & Support: Limited warranty - 3 years - Dimensions & Weight (Shipping)
Shipping Width: 5.3 in Shipping Depth: 5.3 in Shipping Height: 4.3 in Shipping Weight: 22.4 oz - Environmental Parameters
Min Operating Temperature: -22 °F Max Operating Temperature: 140 °F Relative Humidity (operating): 0 - 95% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 46171610
| BRANDS | HIKVISION |
|---|---|
| UNSPSC | 46171610 |
| Part# | HIK-DS-2CD2547G2-LS 2.8MM |
| MFG Part# | DS-2CD2547G2-LS 2.8MM |
| UPC | 842571140385 |
| Max Resolution | 2688 x 1520 |
| Device Type | Network surveillance camera |
| Connectivity Technology | Wired |
| Form Factor | Dome |
| Type | M16 mount - fixed focal |
| Focus Adjustment | (min distance 7.5 ft) |
| Digital Video Format | H.264, H.264+, H.265, H.265+, MJPEG |
| Focal Length | 2.8 mm |
