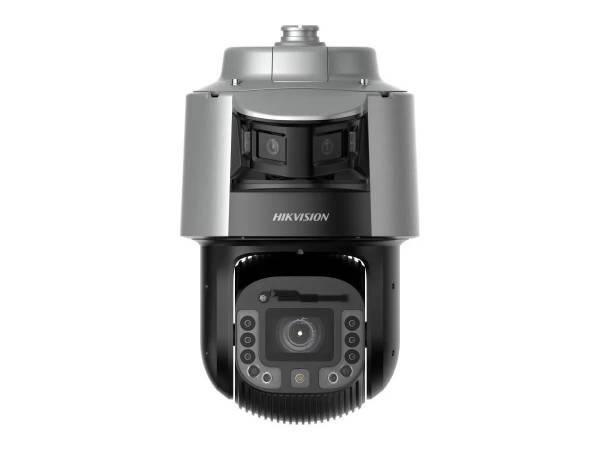

HIKVISION TANDEMVU ADC12 PANORAMIC PTZ 7240136
SKU
7240136
CA$3,738.30
TANDEMVU 8-INCH PANORAMIC 6 MP 42 OPTICAL, 16 DIGITAL DARKFIGHTER NETWORK SPEED DOME, 30 M WHITE LIGHT AND 300 M IR DISTANCE, IP67 AND IK10
Category: PC & Network Cameras
- Primary Information
Product Description: Hikvision TandemVu DS-2SF8C442MXG-ELW/26 - network surveillance / panoramic camera Device Type: Network surveillance / panoramic camera - multi-sensor + pan / tilt / zoom - dust resistant / water resistant / vandal resistant Audio: Yes: two-way audio capability Dimensions (WxDxH): 11.4 in x 11.4 in x 17.8 in Weight: 23.15 lbs Connectivity Technology: Wired Camera: Color - Day&Night Optical Zoom: 42 x Max Resolution: 3632 x 1632 (panoramic) / 2560 x 1440 (PTZ) Frame Rate (max): 30 frames per second Motion Detection: Yes Optical Sensor Type: 1 x Progressive Scan CMOS - 1/1.8" - 4 MP ¦ 1 x Progressive Scan CMOS - 1/1.8" - 6 MP Lens System: 1 x 2.8 mm ¦ 1 x 6 mm - 252 mm - f/1.3 Minimum Illumination: 0.0005 lux - color, PTZ - F1.3 - AGC on ¦ 0.0001 lux - B&W, PTZ - F1.3 - AGC on ¦ 0 lux - IR ¦ 0.0005 lux - color, panoramic - F1.4 - AGC on ¦ 0.0001 lux - B&W, panoramic - F1.4 - AGC on Panning Range (degree): 360 Tilting Range (degree): -20 to +90 Interfaces: Ethernet 10Base-T/100Base-TX Voltage: DC 36 V / High PoE Features: DarkFighter technology, slow shutter, infrared cut filter, white light supplement light type, smart supplement light, proportional pan, 300 preset positions, 4 pattern scans (more then 10 minutes per pattern), 8 patrol scans (up to 32 presets per patrol), auto scan, Power-off Memory, 3D Positioning, PTZ Position Display, Preset Freezing, triple video stream, Region of Interest (ROI), Scalable Video Coding (SVC), environment noise filtering, Automatic Network Replenishment (ANR), Internet Server Application Programming Interface (ISAPI), ONVIF support, up to 20 channels simultaneous live view, IP address filtering, password protection, 3D digital noise reduction (DNR), built-in gyroscope, Electronic Image Stabilizer (EIS), Highlight Compensation (HLC), image parameters switch, optical defog, polygon privacy mask, regional exposure, regional focus, Wide Dynamic Range (WDR), PELCO D protocol support, PELCO P protocol support, face detection, human body detection, perimeter protection, smart tracking, built-in wiper, demist, ADC12 housing Environmental Parameters (operating): -40 °F - 158 °F; 95% (non-condensing) relative humidity - General
Device Type: Network surveillance / panoramic camera Audio Support: Yes: two-way audio capability Audio Formats: G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC Connectivity Technology: Wired Width: 11.4 in Depth: 11.4 in Height: 17.8 in Weight: 23.15 lbs - Camera
Type: Color - Day&Night - multi-sensor + pan / tilt / zoom - dust resistant / water resistant / vandal resistant Digital Video Format: H.265+, H.265, H.264+, H.264, MJPEG Max Digital Video Resolution: 3632 x 1632 (panoramic) / 2560 x 1440 (PTZ) Motion Detection: Yes Digital Zoom: 16 Exposure Range: 1 sec - 1/30000 sec Minimum Illumination: 0.0005 lux - color, PTZ - F1.3 - AGC on ¦ 0.0001 lux - B&W, PTZ - F1.3 - AGC on ¦ 0 lux - IR ¦ 0.0005 lux - color, panoramic - F1.4 - AGC on ¦ 0.0001 lux - B&W, panoramic - F1.4 - AGC on Infrared LEDs: Yes Infrared Distance: 984 ft Digital Video Capture Resolution: 2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720, 3680 x 1656, 3632 x 1632, 704 x 576, 640 x 480, 352 x 288, 1200 x 536, 960 x 432, 352 x 240 Frame Rate (max): 30 frames per second Features: DarkFighter technology, slow shutter, infrared cut filter, white light supplement light type, smart supplement light, proportional pan, 300 preset positions, 4 pattern scans (more then 10 minutes per pattern), 8 patrol scans (up to 32 presets per patrol), auto scan, Power-off Memory, 3D Positioning, PTZ Position Display, Preset Freezing, triple video stream, Region of Interest (ROI), Scalable Video Coding (SVC), environment noise filtering, Automatic Network Replenishment (ANR), Internet Server Application Programming Interface (ISAPI), ONVIF support, up to 20 channels simultaneous live view, IP address filtering, password protection, 3D digital noise reduction (DNR), built-in gyroscope, Electronic Image Stabilizer (EIS), Highlight Compensation (HLC), image parameters switch, optical defog, polygon privacy mask, regional exposure, regional focus, Wide Dynamic Range (WDR), PELCO D protocol support, PELCO P protocol support, face detection, human body detection, perimeter protection, smart tracking, built-in wiper, demist, ADC12 housing - Image Sensor
Type: 1 x 4 MP Progressive Scan CMOS 1/1.8" ¦ 1 x 6 MP Progressive Scan CMOS 1/1.8" - Lens Construction
Lens System: 1 x 2.8 mm - 190° (H) / 80° (V) ¦ 1 x 6 mm - 252 mm - f/1.3 - 2-59° (H) / 11-34.2° (V) / 2.3-67.1° (D) Optical Zoom: 42 x - Panning
Range (degree): 360 Speed (degree/sec): Up to 240 - Tilting
Range (degree): -20 to +90 Speed (degree/sec): Up to 200 - Interfaces
Network Interface: Ethernet 10Base-T/100Base-TX Network Protocols: NFS, SMB, CIFS, IPv4, IPv6, HTTP, HTTPS, QOS, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, FTP Alarm Inputs Qty: 7 Alarm Outputs Qty: 2 - Expansion / Connectivity
Ports: LAN - RJ-45 ¦ Audio line in ¦ Audio line out ¦ Serial RS-485 Supported Memory Cards: microSD Card, microSDHC Card, microSDXC Card - Miscellaneous
Compliant Standards: FCC 47 CFR Part 15 Subpart B, EN 55032:2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, AS/NZS CISPR 32:2015, ICES-003 issue 7, KN32:2015, KN35:2015, UL 62368-1, IEC 62368-1: 2014, EN 62368-1:2014/A11:2017, BIS IS13252 Part 1:2010, IEC 60950-1:2005, IEC/EN 60950-1, RoHS 2011/65/EU, WEEE 2012/19/EU, REACH 2006/1907/EC, IEC 60529:2013, IP67, IK10, IEC 62262:2002 - Power
Power Requirements: DC 36 V / High PoE - Environmental Parameters
Min Operating Temperature: -40 °F Max Operating Temperature: 158 °F Relative Humidity (operating): 95% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 46171610
| BRANDS | HIKVISION |
|---|---|
| UNSPSC | 46171610 |
| Part# | HIK-DS-2SF8C442MXG-ELW/26(F0) |
| MFG Part# | DS-2SF8C442MXG-ELW/26(F0) |
| UPC | 842571148626 |
| Max Resolution | 3632 x 1632 (panoramic) / 2560 x 1440 (PTZ) |
| Device Type | Network surveillance / panoramic camera |
| Optical Zoom | 42 x |
| Connectivity Technology | Wired |
| Type | 1 x 4 MP Progressive Scan CMOS 1/1.8", 1 x 6 MP Progressive Scan CMOS 1/1.8" |
| Digital Zoom | 16 |
| Digital Video Format | H.264, H.264+, H.265, H.265+, MJPEG |
| Digital Video Capture Resolution | 1200 x 536, 1280 x 720, 1280 x 960, 1920 x 1080, 2560 x 1440, 352 x 240, 352 x 288, 3632 x 1632, 3680 x 1656, 640 x 480, 704 x 576, 960 x 432 |
