HOST ADAPT HOST BUS ADAPT 11841274
SKU
11841274
Category: Network Adapters
- Primary Information

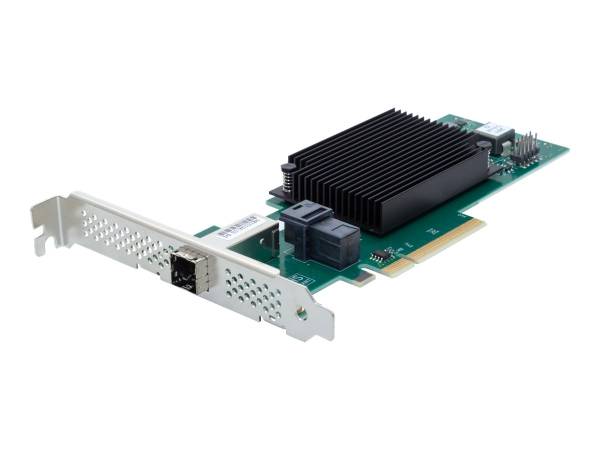

Product Description: ATTO ExpressSAS H1244GT - storage controller (RAID) - SATA 6Gb/s / SAS 12Gb/s - PCIe 4.0 x8 Device Type: Storage controller (RAID) - plug-in card - low profile Bus Type: PCIe 4.0 x8 Interface: SATA 6Gb/s / SAS 12Gb/s Data Transfer Rate: 12 Gbit/s Supported Devices: Disk array (RAID) Channel Qty: 8 Max Storage Devices Qty: 2048 RAID Level: RAID 0, RAID 1, RAID 10, RAID 1E System Requirements: Apple MacOS, FreeBSD, SUSE Linux Enterprise Server, Microsoft Windows Server, Microsoft Windows, Red Hat Enterprise Linux, CentOS, VMware ESXi, Linux Fedora Manufacturer Warranty: 3-year warranty - General
Device Type: Storage controller (RAID) - plug-in card - low profile Host Bus: PCIe 4.0 x8 - Storage Controller
Interface: SATA 6Gb/s / SAS 12Gb/s Data Transfer Rate: 12 Gbit/s Supported Devices: Disk array (RAID) Channel Qty: 8 Max Storage Devices Qty: 2048 RAID Level: RAID 0, RAID 1, RAID 10, RAID 1E - Expansion / Connectivity
Interfaces: 1 x SATA 6Gb/s / SAS 12Gb/s - 36 pin 4x Mini SAS HD (SFF-8644) (external) ¦ 1 x SATA 6Gb/s / SAS 12Gb/s - 4 x Mini SAS HD (SFF-8643) (internal) - Miscellaneous
Features: LED indicator, Advanced Data Streaming (ADS), UEFI support MTBF: 4,500,000 hours Compliant Standards: CISPR 22 Class B, ICES-003, IEC 60950, EMC, EN 60950-1, EN 60825-1, EN 60825-2, RoHS 2011/65/EU, EN 55024:2010, EN 55022:2010, FCC Part 15 Class B, VCCI V-3/2013.04, AS/NZS CISPR 22:2010 - Software / System Requirements
Software Included: ATTO ConfigTool OS Required: Apple MacOS, FreeBSD, SUSE Linux Enterprise Server, Microsoft Windows Server, Microsoft Windows, Red Hat Enterprise Linux, CentOS, VMware ESXi, Linux Fedora - Manufacturer Warranty
Service & Support: Limited warranty - 3 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 131 °F Humidity Range Operating: 10 - 90% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201404
| BRANDS | ATTO TECHNOLOGY |
|---|---|
| UNSPSC | 43201404 |
| Part# | AOT-ESAH-1244-GT0 |
| MFG Part# | ESAH-1244-GT0 |
| UPC | 603175009443 |
| Device Type | Storage controller (RAID) - plug-in card - low profile |
| Data Transfer Rate | 12 Gbit/s |
| RAID Level | RAID 0, RAID 1, RAID 10, RAID 1E |
