HP EO145 AIO T I5-7300U 32GB/256 PC U.S. - ENGLISH LOCALIZATION 7356621

SKU
7356621
CA$4,436.00
HP EO145 AIO T I5-7300U 32GB/256 PC U.S. - ENGLISH LOCALIZATION





buy now pay later
  • Primary Information

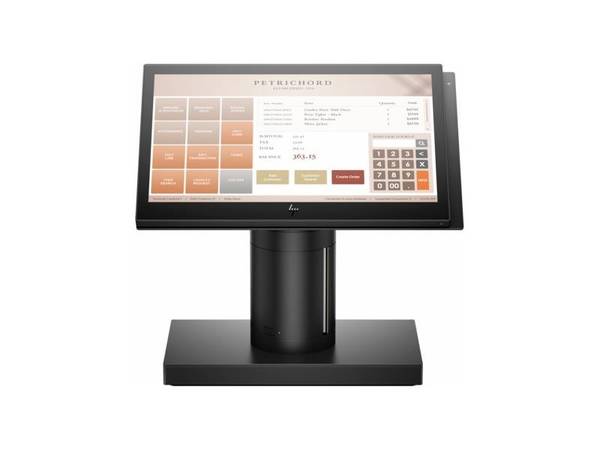

    Product Description: HP Engage One 145 - all-in-one Core i5 7300U 2.6 GHz - 32 GB - SSD 256 GB - LED 14"
    Type: Point of sale terminal - all-in-one
    Localization: Language: English / region: United States
    Processor: 1 x Intel Core i5 (7th Gen) 7300U / 2.6 GHz (up to 3.5 GHz, (Dual-Core)
    Processor Main Features: Hyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Smart Cache
    Cache Memory: 3 MB
    Cache Per Processor: 3 MB
    RAM: 32 GB (installed) / 32 GB (max) - DDR4 SDRAM - non-ECC
    Storage Controller: SATA/NVMe (SATA-600 / NVMe)
    Hard Drive: SSD 256 GB - PCI Express - M.2 - NVM Express (NVMe), triple-level cell (TLC)
    Optical Storage: No optical drive
    Card Reader: Yes
    Monitor: 14" - LED - 1920 x 1080 (Full HD) - 16:9 - touchscreen
    Graphics Controller: Intel HD Graphics 620
    Audio Output: Stereo
    Networking: 1GbE, 802.11a, 802.11b/g/n, Wi-Fi 5, Bluetooth 4.2
    Power: (50/60 Hz)
    OS Provided: Windows 10 IoT Enterprise
    Image Color Disclaimer: The displayed product image may be a different color
    Dimensions (WxDxH): 8.5 in x 0.7 in x 13.2 in
    Weight: 3.04 lbs
    Environmental Standards: ENERGY STAR Qualified
  • General
    Type: Point of sale terminal
    Product Form Factor: All-in-one
    Built-in Devices: Speaker
    Embedded Security: Trusted Platform Module (TPM 2.0) Security Chip
    Image Color Disclaimer: The displayed product image may be a different color
    Localization: Language: English / region: United States
  • Processor / Chipset
    CPU: Intel Core i5 (7th Gen) 7300U
    Clock Speed: 2.6 GHz
    Max Turbo Speed: 3.5 GHz
    Number of Cores: Dual-Core
    CPU Qty: 1
    Max CPU Qty: 1
    CPU Upgradability: Not upgradable
    Processor Main Features: Hyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Smart Cache
  • Cache Memory
    Installed Size: 3 MB
    Cache Per Processor: 3 MB
  • RAM
    Installed Size: 32 GB (installed) / 32 GB (max)
    Technology: DDR4 SDRAM - non-ECC
    Effective Memory Speed: 2400 MHz
    Rated Memory Speed: 2400 MHz
    Form Factor: SO-DIMM 260-pin
    Slots: 2 (total) / 0 (empty)
    Configuration Features: 2 x 16 GB
  • Hard Drive
    Type: SSD - M.2
    Capacity: 1 x 256 GB
    Interface Type: PCI Express
    Features: NVM Express (NVMe), triple-level cell (TLC)
  • Storage Controller
    Type: 1 x SATA/NVMe
    Controller Interface Type: SATA-600 / NVMe
  • Optical Storage
    Type: No optical drive
  • Card Reader
    Type: Card reader
    Supported Flash Memory Cards: microSD
  • Monitor
    Monitor Type: LED
    Touchscreen: Yes (multi-touch)
    Diagonal Size: 14"
    Native Resolution: 1920 x 1080 (Full HD)
    Widescreen Display: Yes
    Image Aspect Ratio: 16:9
    Horizontal Viewing Angle: 178
    Vertical Viewing Angle: 178
    Pixel Pitch: 0.161 mm
    Response Time: 25 ms
    Image Brightness: 500 cd/m²
    Image Contrast Ratio: 800:1
    Monitor Features: Anti-glare, Projected Capacitive Touch (PCT) technology
  • Graphics Controller
    Graphics Processor: Intel HD Graphics 620
  • Audio Output
    Sound Output Mode: Stereo
    Max Sampling Rate: 192 kHz
    Compliant Standards: High Definition Audio
    Speakers Included: 2 x right / left channel
  • Networking
    Interface (Bus) Type: PCI Express Mini Card (M.2)
    Ethernet Controller: Realtek RTL8153
    Wireless LAN Supported: Yes
    Wireless NIC: Intel Dual Band Wireless-AC 8265
    Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 4.2
    Remote Management Protocol: SNMP 2
    Features: Wake on LAN (WoL), ACPI support, auto-uplink (auto MDI/MDI-X), PXE 2.1 support, MIMO support, dual stream (2x2)
    Compliant Standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.1x, IEEE 802.11i, Wi-Fi CERTIFIED, IEEE 802.3az
  • Expansion / Connectivity
    Slots: 1 (total) / 0 (free) x M.2 Card - 2230 ¦ 1 (total) / 0 (free) x M.2 Card - 2280
    Interfaces: 4 x USB 3.0 ¦ 1 x PoweredUSB 2.0 (24 V) ¦ 2 x serial (powered) ¦ 2 x USB-C (one of them is power port) ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x cash drawer ¦ 1 x headphones/microphone ¦ 2 x PoweredUSB 2.0 (12 V)
  • Miscellaneous
    Theft/Intrusion Protection: Security lock slot (cable lock sold separately)
    Security Slot Type: Kensington security slot
    Compliant Standards: IEC 60601-1-2
  • Power
    Voltage Required: (50/60 Hz)
    Power Factor Correction: Yes (active)
  • Operating System / Software
    OS Provided: Windows 10 IoT Enterprise English
  • Sustainability Information
    ENERGY STAR Certified: Yes
  • Dimensions & Weight
    Dimensions & Weight Details: 8.5 in - 0.7 in - 13.2 in - 3 lbs - without stand ¦ - 2.9 lbs - stand
    Width: 8.5 in
    Depth: 0.7 in
    Height: 13.2 in
    Weight: 3.04 lbs
  • Environmental Parameters
    Min Operating Temperature: 50 °F
    Max Operating Temperature: 104 °F
    Humidity Range Operating: 20 - 85%
  • Special Feature
    COO: Inquire
    TAA compliance: Inquire
  • UNSPSC Code
    UNSPSC Code: 43211508
BRANDSHP
UNSPSC43211508
Part#HPI-9J0E0UA#ABA
MFG Part#9J0E0UA#ABA
Sound Output ModeStereo
Form FactorSO-DIMM 260-pin
Response Time25 ms
Image Aspect Ratio16:9
Data Link ProtocolBluetooth 4.2, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Graphics ControllerIntel HD Graphics 620
TypeCard reader
Audio OutputStereo
Native Resolution1920 x 1080 (Full HD)
Remote Management ProtocolSNMP 2
Interface TypePCI Express
