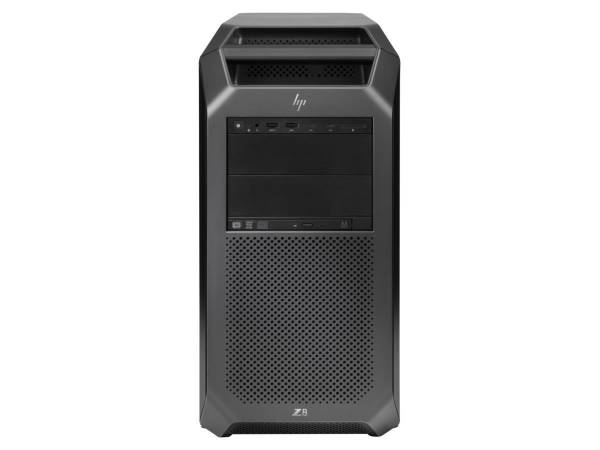

Product Description: | HP Workstation Z8 G4 - tower Xeon Gold 5118 2.3 GHz - vPro - 64 GB - HDD 500 GB - US |
Type: | Workstation - tower |
Platform Technology: | Intel vPro Platform |
Height (Rack Units): | 5U |
Localization: | Language: English / region: United States |
Processor: | 1 x Intel Xeon Gold 5118 / 2.3 GHz (up to 3.2 GHz, (12-core) |
Processor Socket: | FCLGA3647 Socket |
Processor Main Features: | Intel Turbo Boost Technology, Intel Smart Cache |
Cache Memory: | 16.5 MB L3 cache |
Cache Per Processor: | 16.5 MB |
RAM: | 64 GB DDR4 SDRAM - ECC |
Storage Controller: | SATA (SATA 6Gb/s) |
Hard Drive: | HDD 500 GB - SATA 6Gb/s - 7200 rpm |
Optical Storage: | DVD-Writer |
Card Reader: | Yes |
Graphics Controller: | NVIDIA Quadro GV100 |
Video Memory: | 32 GB GDDR5 SDRAM |
Audio Output: | Stereo |
Networking: | 1GbE |
Keyboard: | US |
Power: | (50/60 Hz) |
OS Provided: | Windows 11 Pro for Workstations |
Software Included: | HP Remote Graphics Software, HP Performance Advisor, HP Secure Erase |
Dimensions (WxDxH): | 8.5 in x 21.7 in x 17.5 in |
Weight: | 49.38 lbs |
Environmental Standards: | ENERGY STAR Qualified EPEAT Silver |
Manufacturer Warranty: | Limited warranty - parts and labor - 3 years - on-site |
Platform Technology: | Intel vPro Platform |
Type: | Workstation |
Product Form Factor: | Tower - 5U |
Built-in Devices: | HP Z8 Standard CPU Cooling Solution |
Embedded Security: | Trusted Platform Module (TPM 2.0) Security Chip |
Localization: | Language: English / region: United States |
CPU: | Intel Xeon Gold 5118 |
Clock Speed: | 2.3 GHz |
Max Turbo Speed: | 3.2 GHz |
Number of Cores: | 12-core |
CPU Qty: | 1 |
Max CPU Qty: | 2 |
CPU Upgradability: | Upgradable |
Processor Main Features: | Intel Turbo Boost Technology, Intel Smart Cache |
CPU Socket: | FCLGA3647 Socket |
Chipset Type: | Intel C622 |
Installed Size: | L3 cache - 16.5 MB |
Cache Per Processor: | 16.5 MB |
Installed Size: | 64 GB |
Technology: | DDR4 SDRAM - ECC |
Effective Memory Speed: | 2666 MHz |
Rated Memory Speed: | 2666 MHz |
Form Factor: | DIMM 288-pin |
Slots: | 24 (total) / 20 (empty) |
Features: | Registered, mixing of different types of memory modules is not supported, 6-channel memory architecture, non-uniform memory architecture |
Configuration Features: | 4 x 16 GB |
RAM Supported: | PC4-21300 - 3 TB Load-Reduced - ECC ¦ PC4-21300 - 1.5 TB registered - ECC |
Type: | HDD |
Capacity: | 1 x 500 GB |
Interface Type: | SATA 6Gb/s |
Spindle Speed: | 7200 rpm |
Type: | 1 x SATA |
Controller Interface Type: | SATA 6Gb/s |
RAID Level: | RAID 0, RAID 1, RAID 5, RAID 10 |
Type: | DVD-Writer |
Type: | Card reader |
Supported Flash Memory Cards: | SD Memory Card |
Monitor Type: | None. |
Graphics Processor: | NVIDIA Quadro GV100 |
Video Memory: | 32 GB GDDR5 SDRAM |
Video Interfaces: | DisplayPort |
HDCP Compatible: | Yes |
Sound Output Mode: | Stereo |
Compliant Standards: | High Definition Audio |
Type: | Mouse, keyboard |
Keyboard Name: | HP Business Slim Keyboard |
Interface: | USB |
Localization & Layout: | US |
Mouse Name: | HP 320M |
Interface: | USB |
Ethernet Ports: | 2 x Gigabit Ethernet |
Ethernet Controller: | Intel I219-LM |
Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
Features: | Wake on LAN (WoL), PXE support, auto-uplink (auto MDI/MDI-X) |
Bays: | 1 external 5.25" Slim Line ¦ 2 external 5.25" ¦ 4 internal 2.5" / 3.5" shared |
Slots: | 2 PCIe 3.0 x4 ¦ 2 PCIe 3.0 x16 ¦ 1 PCIe 3.0 x8 (x8 mode, 2 processors must be installed) ¦ 2 PCIe 3.0 x16 (2 processors must be installed) |
Interfaces: | 1 x headphones/microphone (1 in front) ¦ 10 x USB 3.1 Gen 1 (4 front, 6 rear) (one of them is charging) ¦ 1 x PS/2 mouse ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x audio line-in/microphone ¦ 1 x audio line-out ¦ 1 x PS/2 keyboard ¦ 1 x serial ¦ 4 x USB 3.1 (one of them is charging) ¦ 4 x DisplayPort 1.4 |
Theft/Intrusion Protection: | Security lock slot (cable lock sold separately) |
Security Slot Type: | Kensington security slot |
Compliant Standards: | RoHS, WEEE, Directive 2006/66/EC, ACPI 5.0, low halogen |
Device Type: | Power supply |
Voltage Required: | AC 120/230 V (50/60 Hz) |
Power Provided: | 1700 Watt |
Efficiency: | 90% |
Power Factor Correction: | Yes (active) |
OS Provided: | Windows 11 Pro for Workstations English |
Software: | HP Remote Graphics Software, HP Performance Advisor, HP Secure Erase |
EPEAT Compliant: | EPEAT Silver |
ENERGY STAR Certified: | Yes |
Service & Support: | Limited warranty - parts and labor - 3 years - on-site |
Width: | 8.5 in |
Depth: | 21.7 in |
Height: | 17.5 in |
Weight: | 49.38 lbs |
Shipping Width: | 13.1 in |
Shipping Depth: | 28.9 in |
Shipping Height: | 25 in |
Min Operating Temperature: | 41 °F |
Max Operating Temperature: | 95 °F |
Humidity Range Operating: | 10 - 85% (non-condensing) |
COO: | Inquire |
TAA compliance: | Inquire |
UNSPSC Code: | 43201503 |
BRANDS | HP |
---|---|
UNSPSC | 43201503 |
Part# | HPI-7D5S8UA#ABA |
MFG Part# | 7D5S8UA#ABA |
UPC | 197192144152 |
Device Type | Power supply |
Sound Output Mode | Stereo |
Form Factor | DIMM 288-pin |
RAID Level | RAID 0, RAID 1, RAID 10, RAID 5 |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Graphics Controller | NVIDIA Quadro GV100 |
Type | keyboard, Mouse |
Efficiency | 90% |
Audio Output | Stereo |
Video Interfaces | DisplayPort |
Interface Type | SATA 6Gb/s |
