HPE 100GBE 16QSFP28 P2C SW SN2100M W/NVD 7972333

SKU
7972333
CA$33,840.00

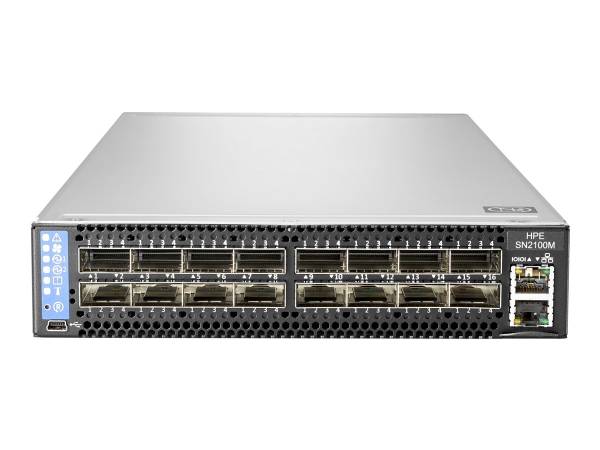

HPE 100GBE 16QSFP28 POWER TO CONNECTOR AIRFLOW HALF WIDTH SWITCH SN2100M WITH NVIDIA CUMULUS





buy now pay later
  • Primary Information
    Product Description: HPE SN2100M 100GbE 16QSFP28 Switch - M-Series - switch - half width - 16 ports - managed - rack-mountable
    Device Type: Switch - 16 ports - L3 - managed
    Enclosure Type: Back to front airflow rack-mountable 1U
    Subtype: 100 Gigabit Ethernet
    Ports: 16 x 40/100 Gigabit Ethernet QSFP28
    Performance: Switching capacity: 3.2 Tbps ¦ Latency: 300 ns ¦ Processing capacity: 2.38 Bpps
    Capacity: Packet buffer size: 16 MB
    Jumbo Frame Support: Yes
    Routing Protocol: BGP-4, BGP, IGMP, OSPFv2, PIM-SM, PIM-SSM, ECMP, BGP-MP
    Remote Management Protocol: SNMP 1, SNMP 2, Telnet, SNMP 3, TFTP, SSH-2, CLI, SCP, DHCP, JSON, LDAP
    Features: Flow control, IP-routing, VLAN support, IGMP snooping, store and forward, QoS, BFD, LACP support, LLDP support, DHCP relay, VRF, cut-through, PTP, ECN, PFC, VXLAN, MLAG, RoCE v2, OSPF, EVPN, ToR, ERSPAN, PIM, BPDU Guard
    Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1Qbb, IEEE 802.1Qaz
    Power: AC 100-264 V (50/60 Hz)
    Power Redundancy: Yes
    Dimensions (WxDxH): 7.9 in x 20 in x 1.7 in
    Weight: 10.01 lbs
    Manufacturer Warranty: 3-year warranty
  • General
    Device Type: Switch - 16 ports - L3 - managed
    Enclosure Type: Back to front airflow rack-mountable 1U
    Subtype: 100 Gigabit Ethernet
    Ports: 16 x 40/100 Gigabit Ethernet QSFP28
    Performance: Switching capacity: 3.2 Tbps ¦ Latency: 300 ns ¦ Processing capacity: 2.38 Bpps
    Capacity: Packet buffer size: 16 MB
    Jumbo Frame Support: Yes
    Routing Protocol: BGP-4, BGP, IGMP, OSPFv2, PIM-SM, PIM-SSM, ECMP, BGP-MP
    Remote Management Protocol: SNMP 1, SNMP 2, Telnet, SNMP 3, TFTP, SSH-2, CLI, SCP, DHCP, JSON, LDAP
    Authentication Method: TACACS+
    Features: Flow control, IP-routing, VLAN support, IGMP snooping, store and forward, QoS, BFD, LACP support, LLDP support, DHCP relay, VRF, cut-through, PTP, ECN, PFC, VXLAN, MLAG, RoCE v2, OSPF, EVPN, ToR, ERSPAN, PIM, BPDU Guard
    Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1Qbb, IEEE 802.1Qaz
    RAM: 8 GB
    Built-in Devices: 16 GB SSD
  • Expansion / Connectivity
    Interfaces: 16 x 40/100Gbit LAN QSFP28 ¦ 1 x management RJ-45 ¦ 1 x serial RJ-45 ¦ 1 x mini-USB 2.0
  • Power
    Power Device: Internal power supply
    Installed Qty: 2
    Max Supported Qty: 2
    Power Redundancy: Yes
    Power Redundancy Scheme: 1+1
    Voltage Required: AC 100-264 V (50/60 Hz)
    Power Consumption Operational: 74 Watt
    Features: Power-to-port airflow
  • Miscellaneous
    Compliant Standards: VCCI, BSMI, CB, CCC, FCC, RoHS, KCC, ICES, S Mark, cTUVus, RCM, CU
  • Software / System Requirements
    Software Included: NVIDIA Cumulus Linux
  • Dimensions & Weight
    Width: 7.9 in
    Depth: 20 in
    Height: 1.7 in
    Weight: 10.01 lbs
  • Manufacturer Warranty
    Service & Support: Limited warranty - parts and labor - 3 years - on-site
  • Environmental Parameters
    Min Operating Temperature: 32 °F
    Max Operating Temperature: 104 °F
    Humidity Range Operating: 10 - 85% (non-condensing)
    Min Storage Temperature: -40 °F
    Max Storage Temperature: 158 °F
  • Special Feature
    COO: Inquire
    TAA compliance: Inquire
  • UNSPSC Code
    UNSPSC Code: 43222612
BRANDSHEWLETT PACKARD ENTERPRISE
UNSPSC43222612
Part#HPE-S2T76A
MFG Part#S2T76A
Device TypeSwitch - 16 ports - L3 - managed
Enclosure TypeBack to front airflow rack-mountable 1U
Remote Management ProtocolCLI, DHCP, JSON, LDAP, SCP, SNMP 1, SNMP 2, SNMP 3, SSH-2, Telnet, TFTP
