HPE 18SFP28 4QSFP28 P2C SW SN2010M W/NVD 7972332
SKU
7972332
CA$23,199.00

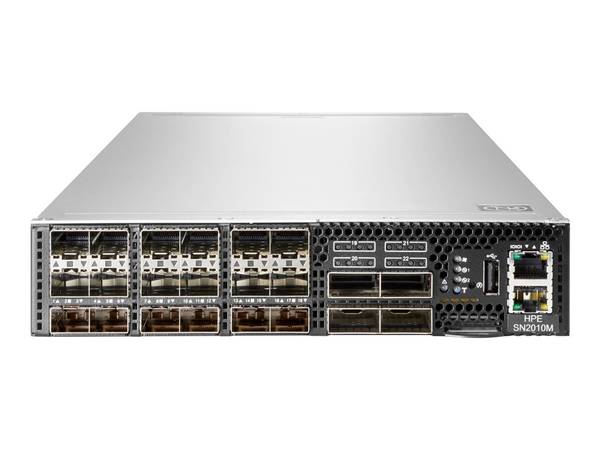

HPE 25GBE 18SFP28 4QSFP28 POWER TO CONNECTOR AIRFLOW HALF WIDTH SWITCH SN2010M WITH NVIDIA CUMULUS
Category: Hubs & Switches
- Primary Information
Product Description: HPE SN2010M 25GbE 18SFP28 4QSFP28 Switch - M-Series - switch - half width - 18 ports - managed - rack-mountable Device Type: Switch - 18 ports - L3 - managed Enclosure Type: Back to front airflow rack-mountable 1U Subtype: 25 Gigabit Ethernet Ports: 18 x 1/10/25 Gigabit SFP28 + 4 x 40 Gigabit / 100 Gigabit QSFP28 Performance: Switching capacity: 1.7 Tbps ¦ Latency: 300 ns ¦ Processing capacity: 1.26 Bpps Capacity: Packet buffer size: 16 MB Jumbo Frame Support: Yes Routing Protocol: BGP-4, BGP, IGMP, OSPFv2, PIM-SM, PIM-SSM, ECMP, BGP-MP Remote Management Protocol: SNMP 1, SNMP 2, Telnet, SNMP 3, TFTP, SSH-2, CLI, SCP, DHCP, JSON, LDAP Features: ToR, EoR, flow control, VLAN support, store and forward, cut-through, QoS, LACP support, LLDP support, BFD, RoCE v2, VRF, DHCP relay, PTP, ECN, OSPF, VXLAN, EVPN, ERSPAN, PIM, BPDU Guard, MLAG, PFC, IGMP snooping, IP-routing Compliant Standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.3ad (LACP), IEEE 802.3ba, IEEE 802.3x, IEEE 802.3ae Power: AC 100-264 V (50/60 Hz) Power Redundancy: Yes Dimensions (WxDxH): 7.9 in x 20 in x 1.7 in Weight: 9.92 lbs Manufacturer Warranty: 3-year warranty - General
Device Type: Switch - 18 ports - L3 - managed Enclosure Type: Back to front airflow rack-mountable 1U Subtype: 25 Gigabit Ethernet Ports: 18 x 1/10/25 Gigabit SFP28 + 4 x 40 Gigabit / 100 Gigabit QSFP28 Performance: Switching capacity: 1.7 Tbps ¦ Latency: 300 ns ¦ Processing capacity: 1.26 Bpps Capacity: Packet buffer size: 16 MB Jumbo Frame Support: Yes Routing Protocol: BGP-4, BGP, IGMP, OSPFv2, PIM-SM, PIM-SSM, ECMP, BGP-MP Remote Management Protocol: SNMP 1, SNMP 2, Telnet, SNMP 3, TFTP, SSH-2, CLI, SCP, DHCP, JSON, LDAP Authentication Method: RADIUS, TACACS+ Features: ToR, EoR, flow control, VLAN support, store and forward, cut-through, QoS, LACP support, LLDP support, BFD, RoCE v2, VRF, DHCP relay, PTP, ECN, OSPF, VXLAN, EVPN, ERSPAN, PIM, BPDU Guard, MLAG, PFC, IGMP snooping, IP-routing Compliant Standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.3ad (LACP), IEEE 802.3ba, IEEE 802.3x, IEEE 802.3ae RAM: 8 GB Built-in Devices: 16 GB SSD - Expansion / Connectivity
Interfaces: 18 x 1/10/25Gbit LAN SFP28 ¦ 4 x 40/100Gbit LAN QSFP28 ¦ 1 x management RJ-45 ¦ 1 x serial RJ-45 ¦ 1 x USB 2.0 Type A - Power
Power Device: Internal power supply Installed Qty: 2 Max Supported Qty: 2 Power Redundancy: Yes Power Redundancy Scheme: 1+1 Voltage Required: AC 100-264 V (50/60 Hz) Power Consumption Operational: 66 Watt Features: Power-to-port airflow - Miscellaneous
Compliant Standards: CB, cTUVus, CU, S Mark, FCC, VCCI, ICES, RCM, BSMI, KCC, RoHS - Software / System Requirements
Software Included: NVIDIA Cumulus Linux - Dimensions & Weight
Width: 7.9 in Depth: 20 in Height: 1.7 in Weight: 9.92 lbs - Manufacturer Warranty
Service & Support: Limited warranty - parts and labor - 3 years - on-site - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 10 - 85% (non-condensing) Min Storage Temperature: -40 °F Max Storage Temperature: 158 °F - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | HEWLETT PACKARD ENTERPRISE |
|---|---|
| UNSPSC | 43222612 |
| Part# | HPE-S2T75A |
| MFG Part# | S2T75A |
| Device Type | Switch - 18 ports - L3 - managed |
| Enclosure Type | Back to front airflow rack-mountable 1U |
| Remote Management Protocol | CLI, DHCP, JSON, LDAP, SCP, SNMP 1, SNMP 2, SNMP 3, SSH-2, Telnet, TFTP |
