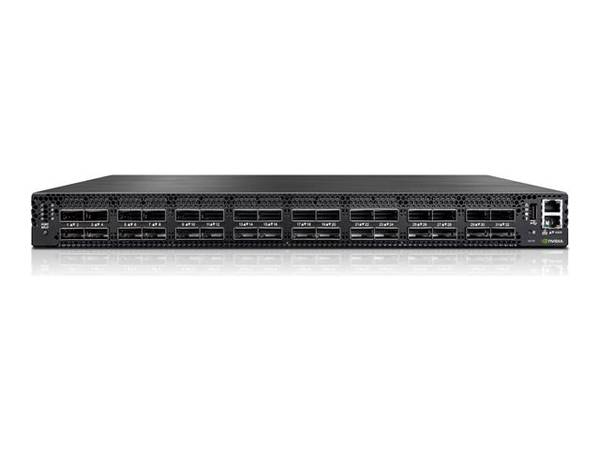

Product Description: | HPE SN4700M 400GbE 32QSFP-DD Switch - M-Series - switch - 32 ports - managed - rack-mountable |
Device Type: | Switch - 32 ports - L3 - managed |
Enclosure Type: | Back to front airflow rack-mountable 1U |
Subtype: | 400 Gigabit Ethernet |
Ports: | 32 x 40/100/200/400 Gigabit Ethernet QSFP-DD |
Performance: | Switching capacity: 25.6 Tbps ¦ Latency: 500 ns ¦ Processing capacity: 8.4 Bpps |
Capacity: | Jumbo frame size: 9216 ¦ Packet buffer size: 64 MB |
Jumbo Frame Support: | Yes |
Routing Protocol: | BGP-4, BGP, IGMP, OSPFv2, PIM-SM, PIM-SSM, ECMP, BGP-MP |
Remote Management Protocol: | SNMP 1, SNMP 2, Telnet, SNMP 3, TFTP, SSH-2, CLI, SCP, DHCP, JSON, LDAP |
Features: | Flow control, IP-routing, VLAN support, IGMP snooping, port mirroring, store and forward, IPv6 support, WRED, VRRP support, MSTP support, DCBX support, QoS, BFD, LACP support, LLDP support, DHCP relay, VRF, port isolation, sFlow v5, cut-through, PTP, OpenFlow support, ECN, PFC, CoPP, VXLAN, MLAG, RoCE v2, OSPF, EVPN, SDN, NTP, Root Guard, Loop Guard, Voice VLAN, ToR, BPDU Filter, ERSPAN, PIM, 64MB packet buffer, BPDU Guard, Q-in-Q tunneling, SPAN mode, LAG, Rapid Convergence Spanning Tree Protocol, Cut Through and Store-and-forward technology, EoR |
Compliant Standards: | IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz |
Power: | AC 100-264 V (50/60 Hz) |
Power Redundancy: | Yes |
Dimensions (WxDxH): | 16.9 in x 22.4 in x 1.7 in |
Weight: | 25.57 lbs |
Manufacturer Warranty: | 3-year warranty |
Device Type: | Switch - 32 ports - L3 - managed |
Enclosure Type: | Back to front airflow rack-mountable 1U |
Subtype: | 400 Gigabit Ethernet |
Ports: | 32 x 40/100/200/400 Gigabit Ethernet QSFP-DD |
Performance: | Switching capacity: 25.6 Tbps ¦ Latency: 500 ns ¦ Processing capacity: 8.4 Bpps |
Capacity: | Jumbo frame size: 9216 ¦ Packet buffer size: 64 MB |
Jumbo Frame Support: | Yes |
Routing Protocol: | BGP-4, BGP, IGMP, OSPFv2, PIM-SM, PIM-SSM, ECMP, BGP-MP |
Remote Management Protocol: | SNMP 1, SNMP 2, Telnet, SNMP 3, TFTP, SSH-2, CLI, SCP, DHCP, JSON, LDAP |
Authentication Method: | RADIUS, TACACS+ |
Features: | Flow control, IP-routing, VLAN support, IGMP snooping, port mirroring, store and forward, IPv6 support, WRED, VRRP support, MSTP support, DCBX support, QoS, BFD, LACP support, LLDP support, DHCP relay, VRF, port isolation, sFlow v5, cut-through, PTP, OpenFlow support, ECN, PFC, CoPP, VXLAN, MLAG, RoCE v2, OSPF, EVPN, SDN, NTP, Root Guard, Loop Guard, Voice VLAN, ToR, BPDU Filter, ERSPAN, PIM, 64MB packet buffer, BPDU Guard, Q-in-Q tunneling, SPAN mode, LAG, Rapid Convergence Spanning Tree Protocol, Cut Through and Store-and-forward technology, EoR |
Compliant Standards: | IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz |
RAM: | 16 GB |
Built-in Devices: | 60 GB SSD |
Interfaces: | 32 x 40/100/200/400Gbit LAN QSFP-DD ¦ 1 x USB 2.0 Type A ¦ 1 x management RJ-45 ¦ 1 x serial RJ-45 |
Power Device: | Internal power supply - hot-plug |
Installed Qty: | 2 |
Max Supported Qty: | 2 |
Power Redundancy: | Yes |
Power Redundancy Scheme: | 1+1 |
Power Provided: | 1500 Watt |
Voltage Required: | AC 100-264 V (50/60 Hz) |
Power Consumption Operational: | 630 Watt |
80 PLUS Certification: | 80 PLUS Gold |
Features: | Power-to-port airflow |
Included Accessories: | 6 intake fan trays, fixed rack mount kit, 4 power cables, 2 PSU cable retainer kits |
Cables Included: | 1 x serial cable |
Rack Mounting Kit: | Included |
Compliant Standards: | CB, cTUVus, CU, S Mark, FCC, VCCI, ICES, RCM, BSMI, KCC, CCC, RoHS, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2011+A2:2013, IEC 60950-1:2005 Second Edition + A1:2009 + A2:2013, EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + AC:2011 + A2:2013, UL 60950-1:2007 R10.14, CAN/CSA C22.2 No. 60950 -1-07+A1:2011+A2:2014, IEC 60950-1 (2nd Edition) + A1:2009 + A2:2013, EN 55032:2012/AC:2013 Class A, EN 55024:2010, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61000-4-2:2002, EN 61000-4-3:2006+A1:2008+A2:2010, EN 61000-4-4:2004+A1:2010, EN 61000-4-5:2006, EN 61000-4-6:2014, EN 61000-4-11:2004, FCC CFR47 Part 15 B 2017 Class A, ICES-003:2016 issue 6 Class A, VCCI-CISPR 32:2016 Class A, AZ/NZS CISPR 32:2015 Class A, KN22:2009 Class A, KN24:2009 |
Software Included: | NVIDIA Cumulus Linux |
Width: | 16.9 in |
Depth: | 22.4 in |
Height: | 1.7 in |
Weight: | 25.57 lbs |
Service & Support: | Limited warranty - parts and labor - 3 years - on-site |
Min Operating Temperature: | 32 °F |
Max Operating Temperature: | 95 °F |
Humidity Range Operating: | 5 - 85% RH (non-condensing) |
Min Storage Temperature: | -40 °F |
Max Storage Temperature: | 158 °F |
COO: | Inquire |
TAA compliance: | Inquire |
UNSPSC Code: | 43222612 |
BRANDS | HEWLETT PACKARD ENTERPRISE |
---|---|
UNSPSC | 43222612 |
Part# | HPE-S2T81A |
MFG Part# | S2T81A |
Device Type | Switch - 32 ports - L3 - managed |
80 PLUS Certification | 80 PLUS Gold |
Enclosure Type | Back to front airflow rack-mountable 1U |
Remote Management Protocol | CLI, DHCP, JSON, LDAP, SCP, SNMP 1, SNMP 2, SNMP 3, SSH-2, Telnet, TFTP |
