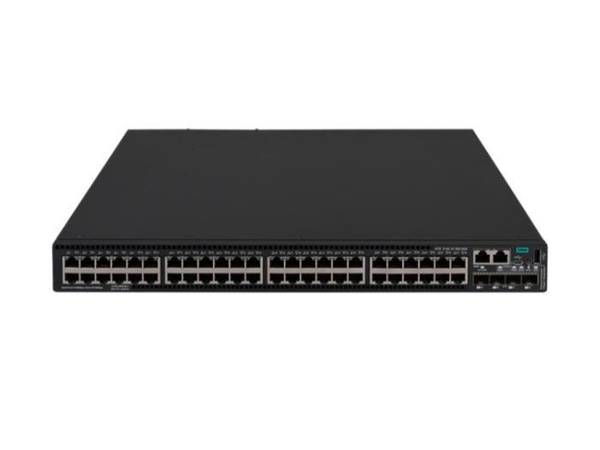

HPE 5140 48G POE+ 4SFP+ 1-SLOT HI SW 7052571
SKU
7052571
Category: Hubs & Switches
- Primary Information
Network Device Type: Switch Model: HPE FlexNetwork 5140 HI Switch Series Form Factor: 1RU Connectivity Technology: Wired Data Transfer Rate: 10 Gbps Networking / Ports Qty: 56 Data Link Protocol: Gigabit Ethernet RAM / Total Installed Size: 2 GB Flash Memory / Installed Size: 512 MB Power / Device Type: Power Supply Power / Installed Qty: 2 Power Consumption Operational: 1742 Watt Max Power Consumption: 1742 Watt Power / Voltage Required: Features: The HPE FlexNetwork 5140 HI Switch Series supports advanced classifier-based QoS which groups traffic using multiple match criteria based on Layer 2 and 3 information; it applies QoS policies such as setting priority level and rate limit to selected traffic on a port, VLAN, or the entire switch. - Network
Power Over Ethernet (PoE) Support: yes PoE Power Consumption: 720W (PoE power), 1440W (PoE power) depending on the model Remote Management Protocol: SNMP Routing Protocol: Layer 3 Basic SFP+ Ports: 4 Interfaces: 48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+) 4 SFP+ 10GbE ports 1 port expansion module slot - Interfaces / Ports
Interfaces: 48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+) 4 SFP+ 10GbE ports 1 port expansion module slot SFP+ Ports: 4 - Dimensions&Miscellaneous
Width: 1.72 Inch Depth: 17.32 Inch Height: 18.11 Inch Weight: 12.79 lbs. - Service&Support
Service & Support Type: Limited Lifetime Warranty - Special Feature
Min Operating Temperature: -5C Max Operating Temperature: 45C Min Storage Temperature: -40C Max Storage Temperature: 70C COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | HEWLETT PACKARD ENTERPRISE |
|---|---|
| UNSPSC | 43222612 |
| Part# | HPE-R9L64A |
| MFG Part# | R9L64A |
| Flash Memory / Installed Size | 512 MB |
| Network Device Type | Switch |
| RAM / Total Installed Size | 2 GB |
| Power / Installed Qty | 2 |
| Connectivity Technology | Wired |
| Data Transfer Rate | 10 Gbps |
| Form Factor | 1RU |
| Networking / Ports Qty | 56 |
| Data Link Protocol | Gigabit Ethernet |
| Power / Device Type | Power Supply |
| Remote Management Protocol | SNMP |
