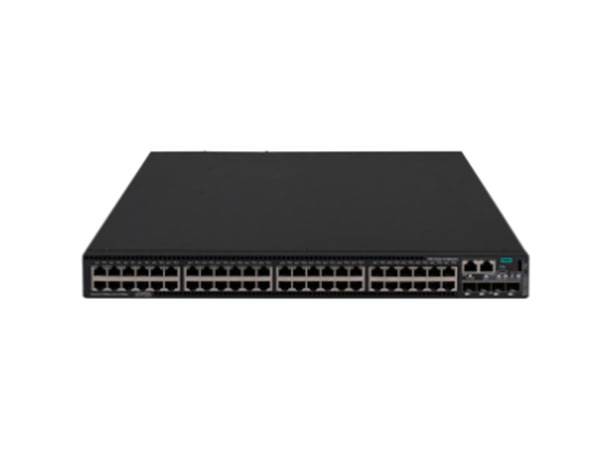

HPE 5520 48G POE+ 4SFP+ HI SWCH 6806543
SKU
6806543
Category: Hubs & Switches
- Primary Information
Network Device Type: Switch Model: HPE Networking Comware Switch Series 5520 HI Form Factor: SFP+ Connectivity Technology: Wired Data Transfer Rate: 1 Gbps Networking / Ports Qty: 56 Data Link Protocol: Gigabit Ethernet RAM / Total Installed Size: 2 GB Flash Memory / Installed Size: 512 MB Power / Device Type: Power Supply Power Consumption Operational: 1110 Watt Max Power Consumption: 1110 Watt Power / Voltage Required: 90 to - 264 VAC and -36 to -72 VDC Features: HPE FlexNetwork 5520 HI Switch series supports flexible authentication methods including 802.1X and MAC Authentication and Encryption for greater device security and policy-driven application authentication. Per-user Access Control Lists (ACLs) provide identity-driven security and access control. - Network
Power Over Ethernet (PoE) Support: yes PoE Power Consumption: 1440W PoE+ Remote Management Protocol: SNMP Routing Protocol: Layer 3 Advanced 10/100/1000BASE-T Ports: 48 SFP+ Ports: 4 Interfaces: (48) RJ-45 autosensing 10/100/1000 BASE-T ports( PoE+); Duplex: Ports 1-48 support 10BASE-T/100BASE-TX, 1000BASE-T (full only), (4) SFP+ 1/10GbE ports, (1) port expansion module slot. - Interfaces / Ports
Interfaces: (48) RJ-45 autosensing 10/100/1000 BASE-T ports( PoE+); Duplex: Ports 1-48 support 10BASE-T/100BASE-TX, 1000BASE-T (full only), (4) SFP+ 1/10GbE ports, (1) port expansion module slot. 10/100/1000BASE-T Ports: 48 SFP+ Ports: 4 - Dimensions&Miscellaneous
Width: 17.32 Inch Depth: 18.11 Inch Height: 1.72 Inch Weight: 9.6 Kg - Service&Support
Service & Support Type: Limited Lifetime Warranty - Special Feature
Min Operating Temperature: -5C Max Operating Temperature: 45C Min Storage Temperature: -40 C Max Storage Temperature: 70C COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | HEWLETT PACKARD ENTERPRISE |
|---|---|
| UNSPSC | 43222612 |
| Part# | HPE-R8M29A |
| MFG Part# | R8M29A |
| UPC | 190017531014 |
| Flash Memory / Installed Size | 512 MB |
| Network Device Type | Switch |
| RAM / Total Installed Size | 2 GB |
| 10/100/1000BASE-T Ports | 48 |
| Connectivity Technology | Wired |
| Data Transfer Rate | 1 Gbps |
| Form Factor | SFP+ |
| Networking / Ports Qty | 56 |
| Data Link Protocol | Gigabit Ethernet |
| Power / Device Type | Power Supply |
| Remote Management Protocol | SNMP |
