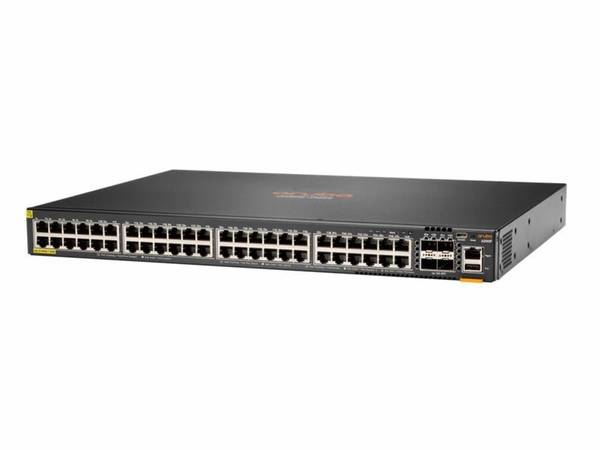

HPE ANW 6200F 48G 4SFP SW US EN 7256707
SKU
7256707
CA$8,452.00
Switch - HPE Aruba Networking CX 6200 Switch Series - 1U - Wired - 1Gbps - Networking / Ports Qty: 55 - Gigabit Ethernet - ARM Cortex A72 - 8GB RAM - 16GB Flash Memory - 100V-120V/200V-240V - Limited Lifetime Warranty
Category: Hubs & Switches
- Primary Information
Network Device Type: Switch Model: HPE Aruba Networking CX 6200 Switch Series Form Factor: 1U Connectivity Technology: Wired Data Transfer Rate: 1 Gbps Networking / Ports Qty: 55 Data Link Protocol: Gigabit Ethernet Processor / Type: ARM Cortex A72 RAM / Total Installed Size: 8 GB Flash Memory / Installed Size: 16 GB Networking Compliant Standards: IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.1D Power / Device Type: Power Supply Media Layer Supported: Layer 2 and Layer 3 Power Consumption Operational: 33 Watt Power / Voltage Required: 100V-120V/200V-240V Features: Enterprise-class connectivity with support for ACLs, robust QoS, and common protocols such as static and Access OSPF routing. Scalability with 8 member VSF stacking. 24 and 48-port fixed and modular switch models can stack together for up to 384 ports. Models include modular switches with 1/10GbE uplinks, LRM, and MACSec 256, fixed switches with either 1/10GbE SFP+ or 1GbE SFP uplinks, and options that support 30W to 60W of PoE per port. - Network
Power Over Ethernet (PoE) Support: None PoE Power Consumption: None MAC Address Table Size: 32768 Jumbo Frame Support: 9220 bytes Remote Management Protocol: SNMP; DHCP Routing Protocol: RIPv2 Encryption Algorithm: SSL 10/100/1000BASE-T Ports: 48 Interfaces: 48x ports 10/100/1000BASE-T Ports 4x 100M/1G SFP ports 1x USB-C Console Port 1x RJ-45 Console Port 1x OOBM 1x USB Type-A Host port - Interfaces / Ports
Interfaces: 48x ports 10/100/1000BASE-T Ports 4x 100M/1G SFP ports 1x USB-C Console Port 1x RJ-45 Console Port 1x OOBM 1x USB Type-A Host port 10/100/1000BASE-T Ports: 48 - Dimensions&Miscellaneous
Width: 17.42 Inch Depth: 11.2 Inch Height: 1.72 Inch Weight: 3.9 Kg - Service&Support
Service & Support Type: Limited Lifetime Warranty - Special Feature
Min Operating Temperature: 0 Celsius Max Operating Temperature: 45 Celsius Min Storage Temperature: -40 Celsius Max Storage Temperature: 70 Celsius COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | HEWLETT PACKARD ENTERPRISE |
|---|---|
| UNSPSC | 43222612 |
| Part# | HPE-S0M83A#ABA |
| MFG Part# | S0M83A#ABA |
| UPC | 190017634364 |
| Flash Memory / Installed Size | 16 GB |
| Network Device Type | Switch |
| RAM / Total Installed Size | 8 GB |
| 10/100/1000BASE-T Ports | 48 |
| Connectivity Technology | Wired |
| Data Transfer Rate | 1 Gbps |
| Form Factor | 1U |
| Processor / Type | ARM Cortex A72 |
| Networking / Ports Qty | 55 |
| Data Link Protocol | Gigabit Ethernet |
| Power / Device Type | Power Supply |
| Remote Management Protocol | DHCP, SNMP |
| Encryption Algorithm | SSL |
