HPE ANW 6300M 48SRX CL8 4P100G SW 7367486

SKU
7367486

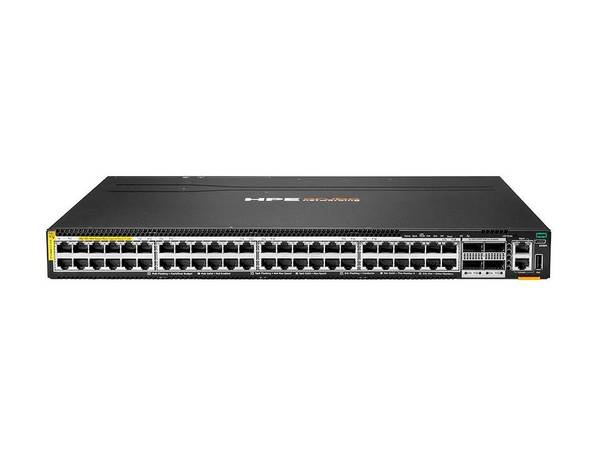

main product photo
CA$33,842.00
HPE ARUBA NETWORKING 6300M 48P SR10 1G/2.5G/5G/10G PTP/AVB CLASS8 POE AND 4P 100G MACSEC SWITCH





buy now pay later
Category: Hubs & Switches
  • Primary Information
    Product Description: HPE Aruba Networking CX 6300M 48p SR10 1G/2.5G/5G/10G PTP/AVB Class8 PoE 4p 100G MACsec Switch - switch - horizontal surface mounting only - 48 ports - managed - rack-mountable
    Device Type: Switch - 48 ports - L3 - managed - stackable
    Enclosure Type: Front and side to back rack-mountable 1U
    Subtype: 10 Gigabit Ethernet
    Ports: 48 x 100/1000/2.5G/5G/10GBase-T (PoE++) + 4 x 10 Gigabit / 25 Gigabit / 40 Gigabit / 100 Gigabit QSFP28 (uplink)
    Power Over Ethernet (PoE): PoE++
    PoE Budget: 2640 W
    Performance: Switching capacity: 1760 Gbps ¦ Throughput: 1310 Mpps ¦ Stacking bandwidth: 400 Gbps
    Capacity: Switched virtual interfaces (SVIs) (dual stack): 1024 ¦ IPv4 host table capacity: 49152 ¦ IPv6 host table capacity: 49152 ¦ IPv4 routes (Unicast): 61000 ¦ IPv6 routes (Unicast): 61000 ¦ IPv4 routes (Multicast): 8192 ¦ IPv6 routes (Multicast): 8192 ¦ IGMP groups: 4096 ¦ MLD groups: 8192 ¦ IPv4 ACL entries (ingress): 20480 ¦ IPv6 ACL entries (ingress): 5120 ¦ MAC ACL entries (ingress): 20480 ¦ IPv4 ACL entries (egress): 8192 ¦ IPv6 ACL entries (egress): 2048 ¦ MAC ACL entries (egress): 8192
    MAC Address Table Size: 32768 entries
    Jumbo Frame Support: 9198 bytes
    Routing Protocol: IGMP, IGMPv2, IGMPv3, RIP-2, OSPFv2, OSPFv3, MLD, MLDv2, BGP-4, MSDP, MSTP, RSTP, BGP, OSPF, ECMP, PIM-DM, PIM-SM, policy-based routing (PBR), Bidirectional Forwarding Detection (BFD)
    Remote Management Protocol: SNMP, SNMP 2c, SNMP 3, TFTP, SSH, CLI
    Features: HPE SmartRate, PoE Class 8, BSR Mechanism, auto-uplink (auto MDI/MDI-X), VLAN support, Syslog support, PVST+, IPv6 support, sFlow, STP support, RSTP support, MSTP support, ACL support, QoS, layer 2 switching, DWRR, MIB, DHCP protection, MVRP, fan tray, CoS, packet storm protection, broadcast storm protection, ToS, VXLAN, BPDU, Multicast Storm Protection, NTP, RA guard, PIM, RSTP, IPv4 and IPv6 dual stack, IP multicast, Aruba VSF, dynamic IPv6 lockdown, ND snooping, Microsoft NLB
    Compliant Standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3ad (LACP), IEEE 802.3ab, IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3x, IEEE 802.3z
    Power Redundancy: Optional
    Dimensions (WxDxH): 17.4 in x 18.6 in x 1.7 in
    Weight: 17.09 lbs
    System Requirements: AOS-CX
    Manufacturer Warranty: Limited lifetime warranty
  • General
    Device Type: Switch - 48 ports - L3 - managed - stackable
    Enclosure Type: Front and side to back rack-mountable 1U
    Subtype: 10 Gigabit Ethernet
    Ports: 48 x 100/1000/2.5G/5G/10GBase-T (PoE++) + 4 x 10 Gigabit / 25 Gigabit / 40 Gigabit / 100 Gigabit QSFP28 (uplink)
    Power Over Ethernet (PoE): PoE++
    PoE Budget: 2640 W
    Performance: Switching capacity: 1760 Gbps ¦ Throughput: 1310 Mpps ¦ Stacking bandwidth: 400 Gbps
    Capacity: Switched virtual interfaces (SVIs) (dual stack): 1024 ¦ IPv4 host table capacity: 49152 ¦ IPv6 host table capacity: 49152 ¦ IPv4 routes (Unicast): 61000 ¦ IPv6 routes (Unicast): 61000 ¦ IPv4 routes (Multicast): 8192 ¦ IPv6 routes (Multicast): 8192 ¦ IGMP groups: 4096 ¦ MLD groups: 8192 ¦ IPv4 ACL entries (ingress): 20480 ¦ IPv6 ACL entries (ingress): 5120 ¦ MAC ACL entries (ingress): 20480 ¦ IPv4 ACL entries (egress): 8192 ¦ IPv6 ACL entries (egress): 2048 ¦ MAC ACL entries (egress): 8192
    MAC Address Table Size: 32768 entries
    Jumbo Frame Support: 9198 bytes
    Max Units In A Stack: 10
    Routing Protocol: IGMP, IGMPv2, IGMPv3, RIP-2, OSPFv2, OSPFv3, MLD, MLDv2, BGP-4, MSDP, MSTP, RSTP, BGP, OSPF, ECMP, PIM-DM, PIM-SM, policy-based routing (PBR), Bidirectional Forwarding Detection (BFD)
    Remote Management Protocol: SNMP, SNMP 2c, SNMP 3, TFTP, SSH, CLI
    Encryption Algorithm: FIPS 140-2
    Authentication Method: RADIUS, TACACS+, Secure Shell (SSH), Secure Shell v.2 (SSH2)
    Features: HPE SmartRate, PoE Class 8, BSR Mechanism, auto-uplink (auto MDI/MDI-X), VLAN support, Syslog support, PVST+, IPv6 support, sFlow, STP support, RSTP support, MSTP support, ACL support, QoS, layer 2 switching, DWRR, MIB, DHCP protection, MVRP, fan tray, CoS, packet storm protection, broadcast storm protection, ToS, VXLAN, BPDU, Multicast Storm Protection, NTP, RA guard, PIM, RSTP, IPv4 and IPv6 dual stack, IP multicast, Aruba VSF, dynamic IPv6 lockdown, ND snooping, Microsoft NLB
    Compliant Standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3ad (LACP), IEEE 802.3ab, IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3x, IEEE 802.3z
    Processor: 1 x ARM Cortex-A72: 1.8 GHz
    RAM: 8 GB DDR4 SDRAM
    Flash Memory: 32 GB
  • Expansion / Connectivity
    Interfaces: 48 x 100/1000/2.5G/5G/10GBase-T (PoE++) RJ-45 PoE Class 8 - 90 W ¦ 4 x 10/25/40/100Gbit LAN QSFP/QSFP28 uplink ¦ 1 x USB-C console ¦ 1 x console RJ-45 ¦ 1 x management RJ-45 out-of-band network management ¦ 1 x USB Type A host
  • Power
    Power Device: Internal power supply - hot-plug
    Installed Qty: 0
    Max Supported Qty: 2
    Power Redundancy: Optional
    Power Redundancy Scheme: 1+1 (with optional power supply)
  • Miscellaneous
    Included Accessories: 2-Post Rack Kit, 3 x field-replacable hot-swappable fan trays
    Rack Mounting Kit: Included
  • Software / System Requirements
    OS Required: AOS-CX
  • Dimensions & Weight
    Width: 17.4 in
    Depth: 18.6 in
    Height: 1.7 in
    Weight: 17.09 lbs
  • Manufacturer Warranty
    Service & Support: Limited warranty - lifetime
  • Environmental Parameters
    Min Operating Temperature: 32 °F
    Max Operating Temperature: 113 °F
    Humidity Range Operating: 5 - 95% (non-condensing)
    Min Storage Temperature: -40 °F
    Max Storage Temperature: 158 °F
    Humidity Range Storage: 5 - 90% (non-condensing)
  • Special Feature
    COO: Inquire
    TAA compliance: Inquire
  • UNSPSC Code
    UNSPSC Code: 43222612
More Information
BRANDS HEWLETT PACKARD ENTERPRISE
UNSPSC 43222612
Part# HPE-S0E91A
MFG Part# S0E91A
UPC 190017627083
Device Type Switch - 48 ports - L3 - managed - stackable
Enclosure Type Front and side to back rack-mountable 1U
Remote Management Protocol CLI, SNMP, SNMP 2c, SNMP 3, SSH, TFTP
Encryption Algorithm FIPS 140-2
