HPE ANW 9114 TAA HYBRID GATEWAY US EN 7367485
SKU
7367485
CA$30,236.00

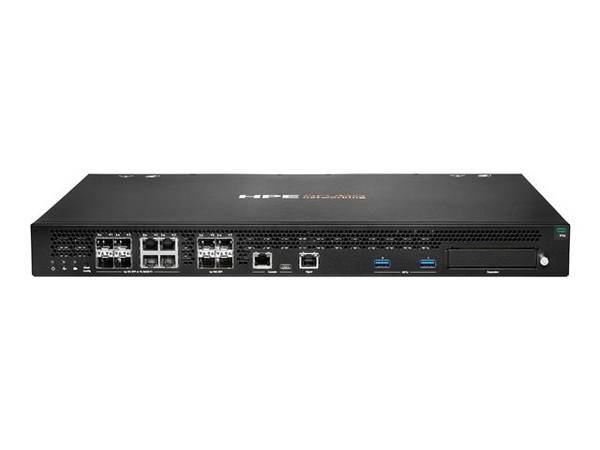

HPE ARUBA NETWORKING 9114 4X SFP+ 4X COMBO 1X EXPANSION SLOT TAA HYBRID GATEWAY US EN
Category: Network Devices
- Primary Information
Product Description: HPE Aruba Networking 9114 TAA - gateway - hybrid - cloud-managed - TAA Compliant Device Type: Gateway Form Factor: Rack-mountable - 1U Localization: English / United States Ports Qty: 8 Data Link Protocol: Gigabit Ethernet, 10 Gigabit Ethernet Performance: Throughput: 20 Gbps ¦ GRE encrypted throughput: 20 Gbps ¦ Encrypted throughput AES-CBC-128: 20 Gbps ¦ Encrypted throughput AES-CBC-256: 20 Gbps ¦ Encrypted throughput AES-GCM-128: 20 Gbps ¦ Encrypted throughput AES-GCM-256: 20 Gbps Capacity: Maximum clients (user MAC): 10000 ¦ Maximum clients per cluster: 80000 ¦ Maximum devices (APs) per gateway: 4000 ¦ Maximum devices (APs) per cluster: 8000 ¦ Maximum data path/ firewall sessions: 2000000 ¦ Maximum firewall session creation rate: 1000000 ¦ Concurrent IPSec tunnels: 32000 ¦ ARP table: 32000 ¦ DHCP clients: 32000 ¦ Maximum bridge table: 524000 ¦ IPv4 routes (static): 2000 ¦ IPv6 neighbor table entries: 32000 ¦ Maximum routes: 16000 ¦ Access lists: 2678 ¦ Configurable bandwidth contracts: 1000 Included Accessories: Rack mounting kit (2 post), 3 fan trays OS Required: ArubaOS 10.5.0.0 Power: AC 100-240 V (50/60 Hz) Power Redundancy: Optional TAA Compliant: Yes Dimensions (WxDxH): 17.4 in x 13.8 in x 1.7 in Weight: 13.67 lbs Manufacturer Warranty: 1-year warranty - General
Device Type: Gateway Height (Rack Units): 1U Width: 17.4 in Depth: 13.8 in Height: 1.7 in Weight: 13.67 lbs Localization: English / United States - Networking
Form Factor: Rack-mountable Ports Qty: 8 Connectivity Technology: Wired Data Link Protocol: Gigabit Ethernet, 10 Gigabit Ethernet Cloud-Managed: Yes Performance: Throughput: 20 Gbps ¦ GRE encrypted throughput: 20 Gbps ¦ Encrypted throughput AES-CBC-128: 20 Gbps ¦ Encrypted throughput AES-CBC-256: 20 Gbps ¦ Encrypted throughput AES-GCM-128: 20 Gbps ¦ Encrypted throughput AES-GCM-256: 20 Gbps Capacity: Maximum clients (user MAC): 10000 ¦ Maximum clients per cluster: 80000 ¦ Maximum devices (APs) per gateway: 4000 ¦ Maximum devices (APs) per cluster: 8000 ¦ Maximum data path/ firewall sessions: 2000000 ¦ Maximum firewall session creation rate: 1000000 ¦ Concurrent IPSec tunnels: 32000 ¦ ARP table: 32000 ¦ DHCP clients: 32000 ¦ Maximum bridge table: 524000 ¦ IPv4 routes (static): 2000 ¦ IPv6 neighbor table entries: 32000 ¦ Maximum routes: 16000 ¦ Access lists: 2678 ¦ Configurable bandwidth contracts: 1000 Status Indicators: Status, cloud, power - Expansion / Connectivity
Expansion Slots: 1 (total) / 1 (free) x expansion slot Interfaces: 4 x 10 Gigabit Ethernet - SFP+ ¦ 4 x 1000Base-T - RJ-45/SFP ¦ 1 x console - RJ-45 ¦ 1 x console - USB-C ¦ 1 x management - RJ-45 ¦ 2 x USB 3.0 - Type A - Miscellaneous
Included Accessories: Rack mounting kit (2 post), 3 fan trays MTBF: 280,165 hours Compliant Standards: CSA 62368-1: 2014, UL 62368-1:2014, UL 62368-1:2019, CSA 62368-1: 2019, EN/IEC 62328-1 Second Edition, IEC/EN 62368-1 Third Edition, FCC Part 15 A, EN55032 Class A, ICES-003 Class A, CNS 13438 Class A, EN55035, EN 300 386, KS C 9832:2019, KS C 9835:2019, AS/NZS CISPR32 Class A, VCCI Class A TAA Compliant: Yes - Power
Power Device: Internal power supply - hot-plug Installed Qty: 1 Max Supported Qty: 2 Power Redundancy: Optional Voltage Required: AC 100-240 V (50/60 Hz) Power Consumption Operational: 185 Watt Power Provided: 250 Watt - Software / System Requirements
OS Required: ArubaOS 10.5.0.0 - Manufacturer Warranty
Service & Support: Limited warranty - parts and labor - 1 year - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 10 - 90% RH (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222605
| BRANDS | HEWLETT PACKARD ENTERPRISE |
|---|---|
| UNSPSC | 43222605 |
| Part# | HPE-R9M47A#ABA |
| MFG Part# | R9M47A#ABA |
| Device Type | Gateway |
| Connectivity Technology | Wired |
| Form Factor | Rack-mountable |
| Data Link Protocol | 10 Gigabit Ethernet, Gigabit Ethernet |
