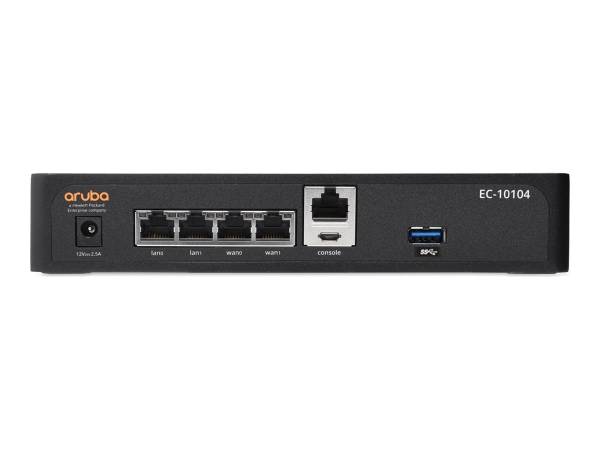

HPE ANW EC 10104 NAL SD-WAN GW 7972307
SKU
7972307
CA$1,682.00
Category: Network Devices
- Primary Information
Product Description: HPE Aruba Networking EdgeConnect 10104 NAL SD-WAN Gateway - SD-WAN gateway - cloud-managed Device Type: SD-WAN gateway Form Factor: Desktop - 1U Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet Performance: Recommend boost: 200 Mbps ¦ WAN throughput: 2 - 500 Mbps Capacity: Simultaneous connections: 256000 ¦ VLANs supported: 64 Included Accessories: Table top rubber feet Power: AC 100-240 V (50/60 Hz) Dimensions (WxDxH): 7.8 in x 6 in x 1.5 in Weight: 2.51 lbs - General
Device Type: SD-WAN gateway Height (Rack Units): 1U Width: 7.8 in Depth: 6 in Height: 1.5 in Weight: 2.51 lbs - Networking
Form Factor: Desktop Connectivity Technology: Wired Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet Routing Protocol: OSPF, BGP Remote Management Protocol: SNMP 3, SNMP 2c, HTTPS, SSH, CLI Cloud-Managed: Yes Performance: Recommend boost: 200 Mbps ¦ WAN throughput: 2 - 500 Mbps Capacity: Simultaneous connections: 256000 ¦ VLANs supported: 64 Features: NetFlow, IPFIX, ECC memory, 4G/5G/LTE support Encryption Algorithm: 128-bit AES, 256-bit AES Authentication Method: RADIUS, TACACS+ Compliant Standards: IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.3ab - Expansion / Connectivity
Interfaces: 2 x 10/100/1000Base-T - RJ-45 (WAN) ¦ 2 x 10/100/1000Base-T - RJ-45 ¦ 1 x console - RJ-45/micro-USB ¦ 1 x USB 3.0 - Type A - Miscellaneous
Included Accessories: Table top rubber feet MTBF: 63 years Compliant Standards: EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3, UL 60950-1, VCCI Class B, EN 55032 Class B, NAL, CISPR 32 Class B, CISPR 35, EN 300 386 V2.1.1, IEC 62368-1 Second Edition, UL 62368-1 Third Edition, IEC 62368-1 Third Edition, ICES-003 issue 7 Class B, EN55035, FCC CFR 47 Part 15 Class B, CSA C22.2 No. 62368-1:19 Third Edition - Power
Power Device: External power adapter Voltage Required: AC 100-240 V (50/60 Hz) Power Consumption Operational: 48 Watt - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 10 - 90% RH (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222605
| BRANDS | SILVERPEAK |
|---|---|
| UNSPSC | 43222605 |
| Part# | HPE-S3N69A |
| MFG Part# | S3N69A |
| Device Type | SD-WAN gateway |
| Connectivity Technology | Wired |
| Form Factor | Desktop |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | CLI, HTTPS, SNMP 2c, SNMP 3, SSH |
| Encryption Algorithm | 128-bit AES, 256-bit AES |
