HPE ANW EC 10108 SD-WAN GATEWAY US EN 8177381
SKU
8177381
CA$5,788.00

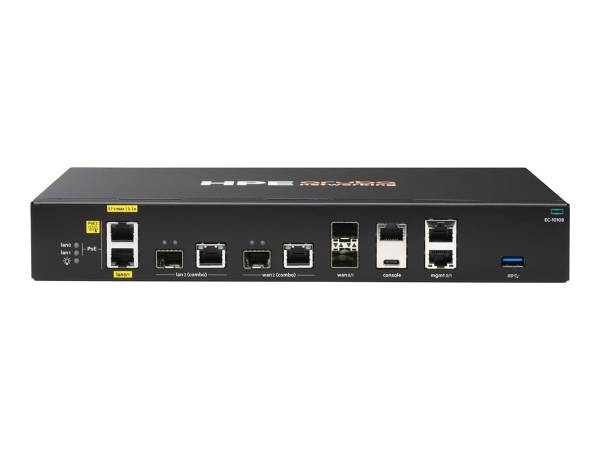

HPE Aruba Networking EdgeConnect 10108 1G 2x SFP 2x Combo 1G 2x RJ45 PoE+ SDWAN Gateway - The EdgeConnect 10108 SD-WAN Gateway (EC-10108) provides high performance networking and secure SD-WAN capabilities in a compact and cost-effective form factor, ideally suited for small branch and remote office environments.
Category: Network Devices
- Primary Information
Product Description: HPE Aruba Networking EdgeConnect 10108 SD-WAN Gateway - SD-WAN gateway - support for 1G/10G Fiber connectivity, flexible combo ports - cloud-managed Device Type: SD-WAN gateway Form Factor: Desktop / wall / rack mountable - 1U Localization: English / United States RAM: 32 GB Hard Drive: 120 GB x 1 Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet Performance: Recommend boost: 500 Mbps ¦ WAN bandwidth: 2 - 2000 Mbps Capacity: Simultaneous connections: 256000 ¦ VLANs supported: 64 Included Accessories: Table top rubber feet, wall mounting kit, rack mount kit Power Over Ethernet (PoE) Supported: 4PPoE Power: AC 100-240 V (50/60 Hz) Pricing Type: BTO Dimensions (WxDxH): 11.6 in x 7.9 in x 1.7 in Weight: 5.08 lbs - General
Device Type: SD-WAN gateway Height (Rack Units): 1U Width: 11.6 in Depth: 7.9 in Height: 1.7 in Weight: 5.08 lbs Localization: English / United States - Processor / Memory / Storage
RAM: 32 GB Hard Drive: SSD 120 GB x 1 - Networking
Form Factor: Desktop / wall / rack mountable Connectivity Technology: Wired Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet Routing Protocol: BGP, OSPF, VRRP Remote Management Protocol: SSH, SNMP 3, HTTPS, CLI Cloud-Managed: Yes Performance: Recommend boost: 500 Mbps ¦ WAN bandwidth: 2 - 2000 Mbps Capacity: Simultaneous connections: 256000 ¦ VLANs supported: 64 Status Indicators: Link, status Features: MPLS support, 4G/5G/LTE support, NetFlow, IPFIX, PoE up to 60 watts per port Encryption Algorithm: 128-bit AES, 256-bit AES Authentication Method: RADIUS, TACACS+ Compliant Standards: IEEE 802.1Q - Expansion / Connectivity
Interfaces: 2 x 10/100/1000Base-T (4PPoE) - RJ-45 (WAN / LAN) - 60 W ¦ 2 x - RJ-45/SFP (WAN / LAN) ¦ 2 x 1 Gigabit Ethernet/10Gb Ethernet - SFP+ (WAN / LAN) ¦ 2 x management - RJ-45 ¦ 1 x console - RJ-45 ¦ 1 x console - USB-C ¦ 1 x USB 3.0 - Type A - Miscellaneous
Included Accessories: Table top rubber feet, wall mounting kit, rack mount kit MTBF: 125,452 hours Compliant Standards: FCC CFR 47 Part 15 Class B, ICES-003 issue 7 Class B, EN 55032 Class B, EN 55035, IEC/EN 61000-3-3, EN IEC 61000-3-2, VCCI Class B, CISPR 32 Class B, CISPR 35, EN 300 386 V2.2.1, EN 60950-1:2005, IEC 60950-1:2005, IEC/EN 62368-1 Second Edition, IEC/EN 62368-1 Third Edition, UL 62368-1 Third Edition, CSA C22.2 No. 62368-1:19 Third Edition Pricing Type: BTO - Power
Power Over Ethernet (PoE) Supported: 4PPoE Power Device: External power adapter Voltage Required: AC 100-240 V (50/60 Hz) Power Provided: 165 Watt - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 10 - 90% RH (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222605
| BRANDS | SILVERPEAK |
|---|---|
| UNSPSC | 43222605 |
| Part# | HPE-S0E23A#ABA |
| MFG Part# | S0E23A#ABA |
| Device Type | SD-WAN gateway |
| Connectivity Technology | Wired |
| Form Factor | Desktop / wall / rack mountable |
| Data Link Protocol | 10 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | CLI, HTTPS, SNMP 3, SSH |
| Encryption Algorithm | 128-bit AES, 256-bit AES |
