HPE DL320 G11 48TB TAA SVR FOR COHESITY 7367507
SKU
7367507
CA$58,708.00

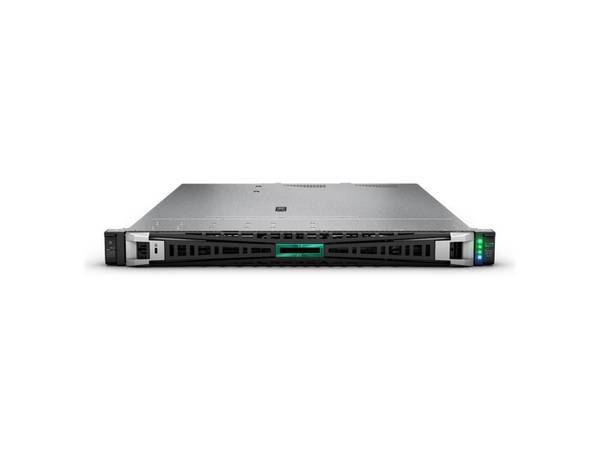

HPE PROLIANT DL320 GEN11 48TB 10/25GB TAA-COMPLIANT SERVER FOR COHESITY
Category: Servers
- Primary Information
Product Description: HPE ProLiant DL320 Gen11 for Cohesity - rack-mountable Xeon Silver 4416+ 2 GHz - 128 GB - SSD 2 x 1.92 TB, HDD 4 x 12 TB - TAA Compliant Type: Server - rack-mountable Height (Rack Units): 1U Server Scalability: 1-way Processor: 1 x Intel Xeon Silver 4416+ / 2 GHz (up to 3.9 GHz, (20-core) Processor Socket: LGA4677 Socket-E Processor Main Features: Intel Turbo Boost Technology 2, Hyper-Threading Technology Cache Memory: 37.5 MB L3 cache Cache Per Processor: 37.5 MB RAM: 128 GB (installed) / 2.04 TB (max) - DDR5 SDRAM - Advanced ECC Storage Controller: RAID (SATA 6Gb/s / SAS 12Gb/s) - OCP (HPE MR216i-o Gen11 SPDM) (NVM Express) (HPE NS204i-u) Server Storage Bays: Hot-swap 3.5" Hard Drive: 2 x SSD 1.92 TB - PCI Express 3.0 - M.2 - NVM Express (NVMe) Hard Drive (2nd): 4 x HDD 12 TB - SAS 12Gb/s - 7200 rpm Optical Storage: No optical drive Video Memory: 16 MB Networking: 10GbE, 25GbE Power Redundancy: Yes OS Provided: No operating system Software Included: HPE iLO Advanced 1-server license with 3 years support Dimensions (WxDxH): 17.1 in x 26.2 in x 1.7 in Weight: 39.02 lbs TAA Compliant: Yes Manufacturer Warranty: Limited warranty - parts and labor - 3 years - on-site - response time: next business day - General
Type: Server Product Form Factor: Rack-mountable - 1U Built-in Devices: LED panel Embedded Security: Trusted Platform Module (TPM 2.0) Security Chip Server Scalability: 1-way Hot-Swap Bays Qty: 4 - Processor / Chipset
CPU: Intel Xeon Silver 4416+ Clock Speed: 2 GHz Max Turbo Speed: 3.9 GHz Number of Cores: 20-core CPU Qty: 1 Max CPU Qty: 1 CPU Upgradability: Upgradable Processor Main Features: Intel Turbo Boost Technology 2, Hyper-Threading Technology CPU Socket: LGA4677 Socket-E Chipset Type: Intel C741 - Cache Memory
Installed Size: L3 cache - 37.5 MB Cache Per Processor: 37.5 MB - RAM
Installed Size: 128 GB (installed) / 2.04 TB (max) Technology: DDR5 SDRAM - Advanced ECC Effective Memory Speed: 4000 MHz Rated Memory Speed: 4800 MHz Form Factor: DIMM 288-pin Slots: 16 (total) / 8 (empty) Features: Registered, single rank, HPE SmartMemory Configuration Features: 8 x 16 GB - Hard Drive
Type: SSD - M.2 Capacity: 2 x 1.92 TB Interface Type: PCI Express 3.0 Features: NVM Express (NVMe) Mainstream Performance, HPE Multi Vendor, Read Intensive, caching - Hard Drive (2nd)
Type: HDD Interface Class: Serial Attached SCSI Capacity: 4 x 12 TB Interface Type: SAS 12Gb/s Spindle Speed: 7200 rpm Features: Business critical, HPE Multi Vendor - Storage Controller
Type: 1 x RAID - OCP Controller Interface Type: SATA 6Gb/s / SAS 12Gb/s Storage Controller Name: HPE MR216i-o Gen11 SPDM RAID Level: RAID 0, RAID 1, RAID 5, RAID 10, RAID 50, RAID 60 - Storage Controller (2nd)
Type: 1 Controller Interface Type: NVM Express Storage Controller Name: HPE NS204i-u - Optical Storage
Type: No optical drive - Monitor
Monitor Type: None. - Graphics Controller
Video Memory: 16 MB Video Interfaces: VGA - Networking
Ethernet Ports: 4 x 10/25 Gigabit Ethernet SFP28 Ethernet Controller: Broadcom BCM57504 Data Link Protocol: 10 Gigabit Ethernet, 25 Gigabit Ethernet Remote Management Protocol: IPMI 2.0, SNMP 3 Remote Management Controller: Integrated Lights-Out 6 Features: ACPI support, PXE support, Wake on LAN (WoL) - Expansion / Connectivity
Bays: 4 (total) / 0 (free) x hot-swap 3.5" LFF Slots: 2 (total) / 2 (free) x PCIe 5.0 x16 - half-length, full-height ¦ 1 (total) / 0 (free) x PCIe 5.0 x16 / Open Compute Project mezzanine (OCP) 3.0 (x16 mode) Interfaces: 1 x HPE iLO (1 in front) (service port) ¦ 3 x USB 3.2 Gen 1 (1 front, 2 rear) ¦ 1 x USB 2.0 ¦ 1 x VGA ¦ 4 x LAN (10/25 Gigabit Ethernet) - SFP28 - Miscellaneous
Included Accessories: Rack rail kit, common bezel kit, high performance fan kit Compliant Standards: AES, FIPS 140-2, Triple DES, IPv6 Ready, PCI DSS, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.3 TAA Compliant: Yes - Power
Device Type: Power supply - hot-plug Power Redundancy: Yes Power Redundancy Scheme: 1+1 Installed Qty: 2 Max Supported Qty: 2 Power Provided: 1000 Watt 80 PLUS Certification: 80 PLUS Titanium - Operating System / Software
OS Provided: No operating system OS Certified: Microsoft Windows Server 2019, Microsoft Windows Server 2022, VMware ESXi 7.0 update 3, VMware ESXi 8.0, VMware ESXi 8.0 update 1, Red Hat Enterprise Linux 8.6, Red Hat Enterprise Linux 9.0, SUSE Linux Enterprise Server 15 SP4, Ubuntu 22.04 LTS, CentOS Software: HPE iLO Advanced 1-server license with 3 years support - Manufacturer Warranty
Service & Support: Limited warranty - parts and labor - 3 years - on-site - response time: next business day - Dimensions & Weight
Width: 17.1 in Depth: 26.2 in Height: 1.7 in Weight: 39.02 lbs - Environmental Parameters
Min Operating Temperature: 50 °F Max Operating Temperature: 95 °F Humidity Range Operating: 8 - 90% RH (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43211502
| BRANDS | HEWLETT PACKARD ENTERPRISE |
|---|---|
| UNSPSC | 43211502 |
| Part# | HPE-S2G20A |
| MFG Part# | S2G20A |
| Device Type | Power supply - hot-plug |
| 80 PLUS Certification | 80 PLUS Titanium |
| Form Factor | DIMM 288-pin |
| RAID Level | RAID 0, RAID 1, RAID 10, RAID 5, RAID 50, RAID 60 |
| Data Link Protocol | 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| Type | No optical drive |
| Video Interfaces | VGA |
| Remote Management Protocol | IPMI 2.0, SNMP 3 |
| Interface Type | SAS 12Gb/s |
