HPE DL380 G11 5416S MR408I-O NC 8SFF SVR 7267101
SKU
7267101
CA$21,390.00
Only 2 left

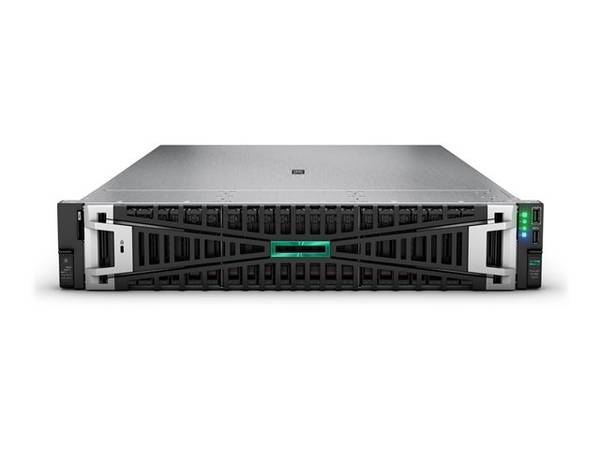

HPE ProLiant DL380 Gen11 8 SFF server with one Intel Xeon Gold 5416S processor, 32 GB DDR5 RDIMM memory, Broadcom MR408i-o storage controller, and one HPE 800W Flex Slot Platinum Hot Plug Power Supply
Category: Servers
- Primary Information
Product Description: HPE ProLiant DL380 Gen11 Network Choice - rack-mountable Xeon Gold 5416S 2 GHz - 32 GB - no HDD Type: Server - rack-mountable Height (Rack Units): 2U Localization: Region: Worldwide Server Scalability: 2-way Processor: 1 x Intel Xeon Gold 5416S / 2 GHz (up to 4 GHz, (16-core) Processor Main Features: Hyper-Threading Technology, Intel Turbo Boost Technology 2 Cache Memory: 30 MB L3 cache Cache Per Processor: 30 MB RAM: 32 GB (installed) / 8 TB (max) - DDR5 SDRAM Storage Controller: RAID (Serial ATA-600 / SAS 3.0 / PCI Express (NVMe)) - OCP (HPE MR408i-o Gen11 SPDM) Server Storage Bays: Hot-swap 2.5" Hard Drive: No HDD Optical Storage: No optical drive Video Memory: 16 MB Networking: 1GbE, 10GbE Power Redundancy: Optional OS Provided: No operating system Software Included: HPE Server UEFI Dimensions (WxDxH): 17.6 in x 28.6 in x 3.4 in Weight: 35.27 lbs Pricing Type: BTO Environmental Standards: ENERGY STAR Qualified Manufacturer Warranty: Limited warranty - parts and labor - 3 years - on-site - response time: next business day - General
Type: Server Product Form Factor: Rack-mountable - 2U Built-in Devices: LED panel Server Scalability: 2-way Hot-Swap Bays Qty: 8 Localization: Region: Worldwide - Processor / Chipset
CPU: Intel Xeon Gold 5416S Clock Speed: 2 GHz Max Turbo Speed: 4 GHz Number of Cores: 16-core CPU Qty: 1 Max CPU Qty: 2 CPU Upgradability: Upgradable Processor Main Features: Hyper-Threading Technology, Intel Turbo Boost Technology 2 Chipset Type: Intel C741 - Cache Memory
Installed Size: L3 cache - 30 MB Cache Per Processor: 30 MB - RAM
Installed Size: 32 GB (installed) / 8 TB (max) Technology: DDR5 SDRAM Effective Memory Speed: 4400 MHz Rated Memory Speed: 4800 MHz Form Factor: DIMM 288-pin Slots: 32 (total) / 31 (empty) Features: Registered, dual rank, HPE SmartMemory, slots 17 - 32 are available in two-processor configuration only Configuration Features: 1 x 32 GB - Hard Drive
Type: No HDD - Storage Controller
Type: 1 x RAID - OCP Controller Interface Type: Serial ATA-600 / SAS 3.0 / PCI Express (NVMe) Storage Controller Name: HPE MR408i-o Gen11 SPDM Channel Qty: 8 RAID Level: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 Buffer Size: 4 GB - Optical Storage
Type: No optical drive - Monitor
Monitor Type: None. - Graphics Controller
Video Memory: 16 MB Video Interfaces: VGA - Networking
Ethernet Ports: 2 x 10 Gigabit Ethernet Ethernet Controller: Broadcom BCM57416 Data Link Protocol: Gigabit Ethernet, 10 Gigabit Ethernet Remote Management Controller: Integrated Lights-Out 6 Features: Wake on LAN (WoL), PXE support - Expansion / Connectivity
Bays: 1 (total) / 1 (free) x external Universal Media Bay ¦ 8 (total) / 8 (free) x hot-swap 2.5" SFF Slots: 2 (total) / 2 (free) x FlexibleLOM ¦ 1 (total) / 1 (free) x PCIe 5.0 x16 - full-length, full-height ¦ 1 (total) / 1 (free) x PCIe 5.0 x16 - full-length, full-height (x8 mode) ¦ 1 (total) / 1 (free) x PCIe 5.0 x16 - half-length, full-height (x8 mode) Interfaces: 1 x USB 3.0 (1 in front) (HPE iLO Service Port) ¦ 4 x USB 3.0 (1 front, 2 rear, 1 internal) ¦ 1 x HPE iLO - RJ-45 (1 rear) ¦ 1 x VGA (1 rear) ¦ 2 x LAN (10Gigabit Ethernet) - Miscellaneous
Included Accessories: Cable management arm, HPE standard heatsink, 4 standard fans, SFF Easy Install Rail Kit Compliant Standards: AES, FIPS 140-2, TLS v1.2, low halogen, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.3, ErP Lot 9 Pricing Type: BTO - Power
Device Type: Power supply - hot-plug Power Redundancy: Optional Power Redundancy Scheme: 1+1 (with optional power supply) Installed Qty: 1 Max Supported Qty: 2 Voltage Required: AC 100-240 V Power Provided: 800 Watt 80 PLUS Certification: 80 PLUS Platinum - Operating System / Software
OS Provided: No operating system OS Certified: Microsoft Windows Server, Red Hat Enterprise Linux, VMware ESXi, Oracle Linux, Canonical Ubuntu, Citrix Software: HPE Server UEFI - Sustainability Information
ENERGY STAR Certified: Yes ENERGY STAR Version: 3.0 - Manufacturer Warranty
Service & Support: Limited warranty - parts and labor - 3 years - on-site - response time: next business day - Dimensions & Weight
Width: 17.6 in Depth: 28.6 in Height: 3.4 in Weight: 35.27 lbs - Environmental Parameters
Min Operating Temperature: 50 °F Max Operating Temperature: 95 °F Humidity Range Operating: 8 - 90% RH (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43211502
| BRANDS | HEWLETT PACKARD ENTERPRISE |
|---|---|
| UNSPSC | 43211502 |
| Part# | HPE-P52561-B21 |
| MFG Part# | P52561-B21 |
| UPC | 190017586182 |
| Buffer Size | 4 GB |
| Device Type | Power supply - hot-plug |
| 80 PLUS Certification | 80 PLUS Platinum |
| Form Factor | DIMM 288-pin |
| RAID Level | RAID 0, RAID 1, RAID 10, RAID 5, RAID 50, RAID 6, RAID 60 |
| Data Link Protocol | 10 Gigabit Ethernet, Gigabit Ethernet |
| Type | No optical drive |
| Video Interfaces | VGA |
