HPE NW CW 5960 24XQSFP56+8XQSFPDD SW 7264291
SKU
7264291
CA$103,685.00

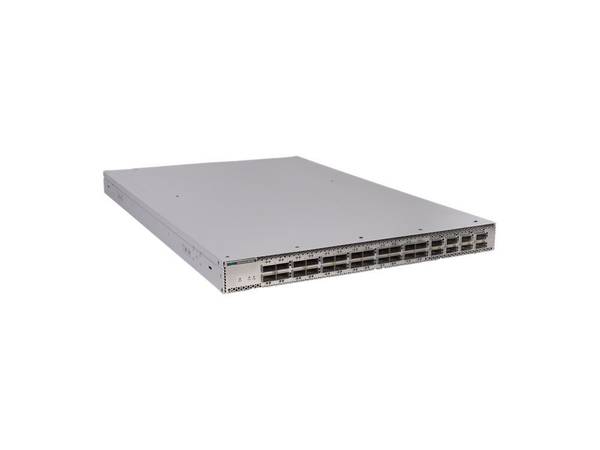

HPE NETWORKINGCOMWARE 5960 24 PORT 100/200G QSFP56 +8 PORT 400G QSFP-DD DATA CENTER SWITCHCH
Category: Hubs & Switches
- Primary Information
Product Description: HPE Networking Comware 5960 24 Port 100/200G QSFP56 +8 Port 400G QSFP-DD Data Center Switch - switch - horizontal surface mounting only - 24 ports - managed - rack-mountable Device Type: Switch - 24 ports - L4 - managed Enclosure Type: Front to back airflow rack-mountable 1U Subtype: 400 Gigabit Ethernet Ports: 24 x 100/200Gbit QSFP56/QSFP28 + 8 x 400 Gigabit QSFP-DD Performance: Latency: 1.2 µs ¦ Switching capacity: 8 Tbps ¦ Forwarding capacity: 268 Bps Capacity: IPv4 routing table entries: 800000 ¦ IPv6 routing table entries: 500000 ¦ VLAN table: 4094 MAC Address Table Size: 16K entries Jumbo Frame Support: Yes Routing Protocol: OSPF, IS-IS, BGP, VRRP, OSPFv2, OSPFv3, ECMP, IS-ISv6, BGP-4+, VXLAN Remote Management Protocol: SNMP, Telnet, CLI, NETCONF Features: Layer 4 switching, layer 3 switching, layer 2 switching, ARP support, WRED, sFlow, DCBX support, QoS, CAR, RDMA support, LACP support, LLDP support, RoCE, VPLS, ECN, PFC, EVPN, AAA, 6 fan trays slots, traffic mirroring, NetStream, LLDP-MED Compliant Standards: IEEE 802.1p, IEEE 802.1Qbb, IEEE 802.1Qaz Power Redundancy: Optional Dimensions (WxDxH): 17.3 in x 26 in x 1.7 in Weight: 29.76 lbs System Requirements: Comware v9 Manufacturer Warranty: Limited lifetime warranty - General
Device Type: Switch - 24 ports - L4 - managed Enclosure Type: Front to back airflow rack-mountable 1U Subtype: 400 Gigabit Ethernet Ports: 24 x 100/200Gbit QSFP56/QSFP28 + 8 x 400 Gigabit QSFP-DD Performance: Latency: 1.2 µs ¦ Switching capacity: 8 Tbps ¦ Forwarding capacity: 268 Bps Capacity: IPv4 routing table entries: 800000 ¦ IPv6 routing table entries: 500000 ¦ VLAN table: 4094 MAC Address Table Size: 16K entries Jumbo Frame Support: Yes Routing Protocol: OSPF, IS-IS, BGP, VRRP, OSPFv2, OSPFv3, ECMP, IS-ISv6, BGP-4+, VXLAN Remote Management Protocol: SNMP, Telnet, CLI, NETCONF Encryption Algorithm: SSL, PKI Authentication Method: RADIUS, Secure Shell v.2 (SSH2), HWTACACS Features: Layer 4 switching, layer 3 switching, layer 2 switching, ARP support, WRED, sFlow, DCBX support, QoS, CAR, RDMA support, LACP support, LLDP support, RoCE, VPLS, ECN, PFC, EVPN, AAA, 6 fan trays slots, traffic mirroring, NetStream, LLDP-MED Compliant Standards: IEEE 802.1p, IEEE 802.1Qbb, IEEE 802.1Qaz Processor: D-1627: 2.9 GHz RAM: 16 GB DDR4 SDRAM Flash Memory: 240 GB - Expansion / Connectivity
Interfaces: 24 x 100/200Gbit LAN QSFP56/QSFP28 ¦ 8 x 100/400Gbit LAN QSFP-DD ¦ 1 x management RJ-45 out-of-band network management ¦ 1 x console ¦ 1 x USB 2.0 - Power
Power Device: Internal power supply (not installed) - hot-plug Max Supported Qty: 2 Power Redundancy: Optional Power Redundancy Scheme: 1+1 (with optional power supply) - Miscellaneous
Included Accessories: Rack mount kit Compliant Standards: EN 61000-3-2, EN 61000-3-3, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, IEC 60950-1, VCCI Class A, GB 4943.1, AS/NZS CISPR 32 Class A, EN 62368-1, IEC 62368-1, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 62368-1, UL 62368-1, EN 55035, CISPR 35, ETSI EN 300 386, AS/NZS 62368-1, CAN/CSA C22.2 No. 60950-1, FCC Part 15 Subpart B:2020 Class A, FDA 21 CFR Subchapter J, GB/T 9254, YD/T 993 - Software / System Requirements
OS Required: Comware v9 - Dimensions & Weight
Width: 17.3 in Depth: 26 in Height: 1.7 in Weight: 29.76 lbs - Manufacturer Warranty
Service & Support: Limited warranty - lifetime - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 5 - 95% (non-condensing) Humidity Range Storage: 5 - 95% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | HEWLETT PACKARD ENTERPRISE |
|---|---|
| UNSPSC | 43222612 |
| Part# | HPE-R9Y12A |
| MFG Part# | R9Y12A |
| Device Type | Switch - 24 ports - L4 - managed |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Remote Management Protocol | CLI, NETCONF, SNMP, Telnet |
| Encryption Algorithm | PKI, SSL |
