HPE SN6620C 32G 48/24 32G SFP+ FC V2 SW 7272297
SKU
7272297
CA$43,451.00

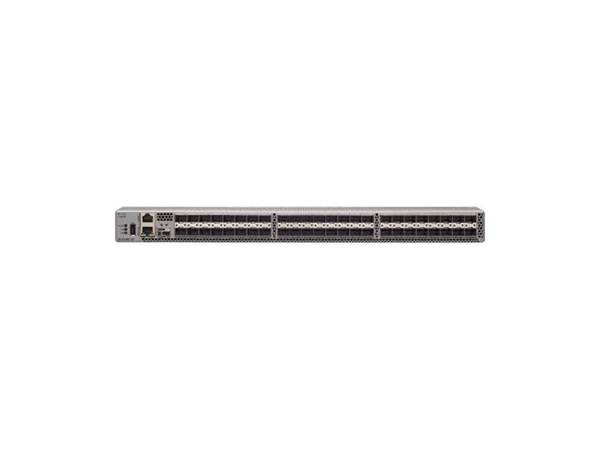

HPE SN6620C 32GB 48/24 32GB SHORT WAVE SFP+ FIBRE CHANNEL V2 SWITCH
Category: Hubs & Switches
- Primary Information
Product Description: HPE SN6620C 32Gb 48/24 32Gb Short Wave SFP+ Fibre Channel v2 Switch - C-Series - switch - 48 ports - managed - rack-mountable - with 24x 32 Gbps SW SFP+ transceiver Device Type: Switch - 48 ports - managed - with 24x 32 Gbps SW SFP+ transceiver Enclosure Type: Back to front airflow rack-mountable 1U Subtype: Fibre Channel Ports: 24 x 32Gb Fibre Channel SFP+ Performance: Aggregate switching bandwidth: 1536 Gbps Remote Management Protocol: SNMP 3, CLI Features: ISL support, RSCN support, SNMP support, FCS, AAA, Address Resolution Protocol Power: AC 100-240 V (50/60 Hz) Power Redundancy: Yes Dimensions (WxDxH): 17.3 in x 22.3 in x 1.7 in Weight: 18.74 lbs System Requirements: Cisco NX-OS 8.3(1) Manufacturer Warranty: 1-year warranty - General
Device Type: Switch - 48 ports - managed - with 24x 32 Gbps SW SFP+ transceiver Enclosure Type: Back to front airflow rack-mountable 1U Subtype: Fibre Channel Ports: 24 x 32Gb Fibre Channel SFP+ Performance: Aggregate switching bandwidth: 1536 Gbps Remote Management Protocol: SNMP 3, CLI Encryption Algorithm: 128-bit AES Authentication Method: RADIUS, TACACS+, Secure Shell v.2 (SSH2) Features: ISL support, RSCN support, SNMP support, FCS, AAA, Address Resolution Protocol - Expansion / Connectivity
Interfaces: 24 x 32Gb Fibre Channel SFP+ short wave ¦ 24 x 32Gb Fibre Channel SFP+ Ports on Demand ¦ 1 x console management ¦ 1 x USB ¦ 1 x 10/100/1000 Base-T RJ-45 out-of-band network management - Power
Power Device: Internal power supply Installed Qty: 2 Max Supported Qty: 2 Power Redundancy: Yes Power Redundancy Scheme: 1+1 Voltage Required: AC 100-240 V (50/60 Hz) - Miscellaneous
Included Accessories: Accessory kit, 4 fans Compliant Standards: CISPR 22 Class A, EN 60950, EN 61000-3-2, IEC 60950, EN 61000-3-3, EN55024, UL 60950, EN50082-1, EN 61000-6-1, AS/NZS 3260, ICES-003 Class A, EN 60825, AS/NZS 3548 Class A, IEC 60825, VCCI Class A, EN 55022 Class A, 21 CFR 1040, TS001, CAN/CSA-C22.2 No. 60950-1, FCC CFR47 Part 15 Class A - Software / System Requirements
Software Included: Cisco Data Center Network Manager OS Required: Cisco NX-OS 8.3(1) - Dimensions & Weight
Width: 17.3 in Depth: 22.3 in Height: 1.7 in Weight: 18.74 lbs - Manufacturer Warranty
Service & Support: Limited warranty - parts and labor - 1 year - on-site - response time: next business day - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 10 - 90% RH (non-condensing) Min Storage Temperature: -40 °F Max Storage Temperature: 158 °F Humidity Range Storage: 10 - 95% RH (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | HEWLETT PACKARD ENTERPRISE |
|---|---|
| UNSPSC | 43222612 |
| Part# | HPE-R0P13B |
| MFG Part# | R0P13B |
| Device Type | Switch - 48 ports - managed - with 24x 32 Gbps SW SFP+ transceiver |
| Enclosure Type | Back to front airflow rack-mountable 1U |
| Remote Management Protocol | CLI, SNMP 3 |
| Encryption Algorithm | 128-bit AES |
