HPE SN6710C 64G 24/24 32G SFP+ FC V2 SW 7267282

SKU
7267282
CA$56,708.00

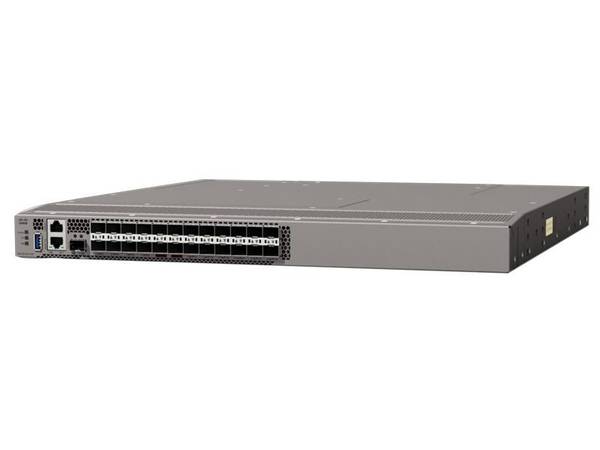

HPE SN6710C 64GB 24/24 32GB SHORT WAVE SFP+ FIBRE CHANNEL V2 SWITCH





buy now pay later
  • Primary Information
    Product Description: HPE SN6710C 64Gb 24/24 32Gb Short Wave SFP+ Fibre Channel v2 Switch - C-Series - switch - 24 ports - managed - rack-mountable - with 24x 32 Gbps SW SFP+ transceiver
    Device Type: Switch - 24 ports - managed - with 24x 32 Gbps SW SFP+ transceiver
    Enclosure Type: Back to front airflow rack-mountable 1U
    Subtype: Fibre Channel
    Ports: 24 x 64Gb Fibre Channel SFP+
    Performance: Aggregate bandwidth: 1536 Gbps
    Remote Management Protocol: SNMP 1, RMON, SNMP 3, SSH, SSH-2, CLI
    Features: ISL support, High Availability, NPIV technology, REST, F-port trunking and channelling, IVR
    Power: AC 100-240 V (50/60 Hz)
    Power Redundancy: Yes
    Dimensions (WxDxH): 17.3 in x 18 in x 1.7 in
    Weight: 18.74 lbs
    System Requirements: Cisco NX-OS 9.3(1)
    Manufacturer Warranty: 1-year warranty
  • General
    Device Type: Switch - 24 ports - managed - with 24x 32 Gbps SW SFP+ transceiver
    Enclosure Type: Back to front airflow rack-mountable 1U
    Subtype: Fibre Channel
    Ports: 24 x 64Gb Fibre Channel SFP+
    Performance: Aggregate bandwidth: 1536 Gbps
    Remote Management Protocol: SNMP 1, RMON, SNMP 3, SSH, SSH-2, CLI
    Encryption Algorithm: AES
    Authentication Method: RADIUS, TACACS+, LDAP
    Features: ISL support, High Availability, NPIV technology, REST, F-port trunking and channelling, IVR
  • Expansion / Connectivity
    Interfaces: 24 x 64Gb Fibre Channel SFP+ short wave ¦ 1 x console RJ-45 ¦ 1 x serial (RS-232) ¦ 1 x 10/100/1000 Base-T RJ-45 out-of-band network management ¦ 1 x USB Type A
  • Power
    Power Device: Internal power supply
    Installed Qty: 2
    Max Supported Qty: 2
    Power Redundancy: Yes
    Power Redundancy Scheme: 1+1
    Voltage Required: AC 100-240 V (50/60 Hz)
    Power Consumption Operational: 286 Watt
  • Miscellaneous
    Included Accessories: Accessory kit, 4 fans
    Compliant Standards: CISPR 22 Class A, EN 60950, EN 61000-3-2, IEC 60950, EN 61000-3-3, EN55024, UL 60950, EN50082-1, EN 61000-6-1, AS/NZS 3260, ICES-003 Class A, EN 60825, AS/NZS 3548 Class A, IEC 60825, VCCI Class A, EN 55022 Class A, 21 CFR 1040, TS001, CAN/CSA-C22.2 No. 60950, FCC CFR 47 Part 15 Class A
  • Software / System Requirements
    OS Required: Cisco NX-OS 9.3(1)
  • Dimensions & Weight
    Width: 17.3 in
    Depth: 18 in
    Height: 1.7 in
    Weight: 18.74 lbs
  • Manufacturer Warranty
    Service & Support: Limited warranty - parts and labor - 1 year - on-site - response time: next business day
  • Environmental Parameters
    Min Operating Temperature: 32 °F
    Max Operating Temperature: 104 °F
    Humidity Range Operating: 10 - 90% RH (non-condensing)
    Min Storage Temperature: -40 °F
    Max Storage Temperature: 158 °F
    Humidity Range Storage: 10 - 95% RH (non-condensing)
  • Special Feature
    COO: Inquire
    TAA compliance: Inquire
  • UNSPSC Code
    UNSPSC Code: 43222612
BRANDSHEWLETT PACKARD ENTERPRISE
UNSPSC43222612
Part#HPE-S0W92B
MFG Part#S0W92B
Device TypeSwitch - 24 ports - managed - with 24x 32 Gbps SW SFP+ transceiver
Enclosure TypeBack to front airflow rack-mountable 1U
Remote Management ProtocolCLI, RMON, SNMP 1, SNMP 3, SSH, SSH-2
Encryption AlgorithmAES
