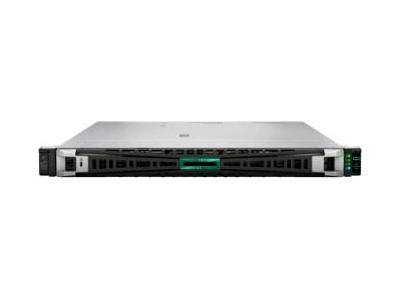

HPE STOREEASY 1470 48TB PERF MS WS IOT22 7367755
SKU
7367755
CA$22,412.00
HPE STOREEASY 1470 48TB SATA PERFORMANCE STORAGE WITH MICROSOFT WINDOWS SERVER IOT 2022
Category: Storage Enclosures & RAID Arrays
- Primary Information
Product Description: HPE StoreEasy 1470 Performance - NAS server - 48 TB Device Type: NAS server Host Connectivity: Gigabit Ethernet Enclosure Type: Rack-mountable - 1U Total Storage Capacity: 48 TB Max Supported Capacity: 48 TB Installed Devices / Modules Qty: 4 (installed) / 4 (max) Dimensions (WxDxH): 17.1 in x 26.2 in x 1.7 in Weight: 39.02 lbs () Processor: 1 x Intel Xeon Bronze 3408U 1.8 GHz (8-core) Storage Controller: 1 x RAID (HPE MR408i-o Gen11 SPDM) - Serial ATA-600 / SAS 3.0 / PCI Express (NVMe) (HPE MR408i-o Gen11 SPDM) - RAID RAID 0, 1, 5, 6, 10 Hard Drive: 4 x 12 TB SATA 6Gb/s - Midline, RAID 10 - factory configured Networking: 10Mb LAN, 100Mb LAN, 1GbE RAM: 16 GB Power: AC 100-120/200-240 V (50/60 Hz) Power Redundancy: Optional Storage Operating System: Microsoft Windows Storage Server IoT 2022 Standard Pricing Type: BTO Manufacturer Warranty: 3-year warranty - General
Device Type: NAS server Host Connectivity: Gigabit Ethernet Enclosure Type: Rack-mountable - 1U Total Storage Capacity: 48 TB Max Supported Capacity: 48 TB Installed Devices / Modules Qty: 4 (installed) / 4 (max) Width: 17.1 in Depth: 26.2 in Height: 1.7 in Weight: 39.02 lbs () - Processor / Memory
Processors Installed: 1 x Intel Xeon Bronze 3408U 1.8 GHz Number of Cores: 8-core Max Supported Qty: 2 Max Turbo Speed: 1.9 GHz RAM: 16 GB DDR5 - 4800 Hz Features: HPE SmartMemory, single rank, registered - Storage Controller
Type: 1 x RAID Interface Type: Serial ATA-600 / SAS 3.0 / PCI Express (NVMe) Storage Controller Name: HPE MR408i-o Gen11 SPDM RAID Level: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 - Hard Drive
Type: HDD - 3.5" LFF Capacity: 4 x 12 TB Interface Type: SATA 6Gb/s Spindle Speed: 7200 rpm Features: Midline, RAID 10 - factory configured - Networking
Data Link Protocol: 10Mb LAN, 100Mb LAN, 1GbE Network Services Compatibility: DNS, DHCP, Microsoft CIFS, Network File System (NFS), FTP, FTPS, Server Message Block (SMB), HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV) - Expansion / Connectivity
Expansion Bays: 4 (total) / 0 (free) x hot-swap - 3.5" LFF Expansion Slots: 1 (total) / 1 (free) x FlexibleLOM ¦ 1 (total) / 1 (free) x PCI Express 5.0 x16 (three-quarter-length, full-height) ¦ 1 (total) / 1 (free) x PCI Express 3.0 x8 (low-profile) Interfaces: 2 x Ethernet 1000Base-T - RJ-45 ¦ 1 x HPE iLO (service) - Type A ¦ 3 x USB 3.2 Gen 1 (1 front, 2 rear) - Type A ¦ HPE iLO (1 rear) - RJ-45 ¦ 1 x VGA (1 rear) - DB-15 ¦ 1 x USB 2.0 (internal) - Miscellaneous
Cables Included: 1 x power cable (C13-C14) - 6 ft Features: Trusted Platform Module (TPM) Compliant Standards: WEEE 2002/95/EC Included Accessories: 7 hot-plug redundant fans Pricing Type: BTO - Power
Power Device: Internal power supply - hot-plug Installed Qty: 1 Max Supported Qty: 2 Power Redundancy: Optional Power Redundancy Scheme: 1+1 (with optional power supply) Voltage Required: AC 100-120/200-240 V (50/60 Hz) Power Provided: 500 Watt 80 PLUS Certification: 80 PLUS Platinum - Software / System Requirements
Storage Operating System: Microsoft Windows Storage Server IoT 2022 Standard Software Included: HPE StoreEasy Management Console, HPE iLO Advanced Premium Security Edition with 1 Year Support - Manufacturer Warranty
Service & Support: Limited warranty - parts and labor - 3 years - on-site - response time: next business day - Environmental Parameters
Min Operating Temperature: 50 °F Max Operating Temperature: 95 °F Humidity Range Operating: 8 - 90% RH (non-condensing) Sound Emission: 36 dBA - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 24102001
| BRANDS | HEWLETT PACKARD ENTERPRISE |
|---|---|
| UNSPSC | 24102001 |
| Part# | HPE-S2A22A |
| MFG Part# | S2A22A |
| Device Type | NAS server |
| 80 PLUS Certification | 80 PLUS Platinum |
| RAID Level | RAID 0, RAID 1, RAID 10, RAID 5, RAID 6 |
| Data Link Protocol | 100Mb LAN, 10Mb LAN, 1GbE |
| Type | HDD - 3.5" LFF |
| Enclosure Type | Rack-mountable - 1U |
| Interface Type | SATA 6Gb/s |
