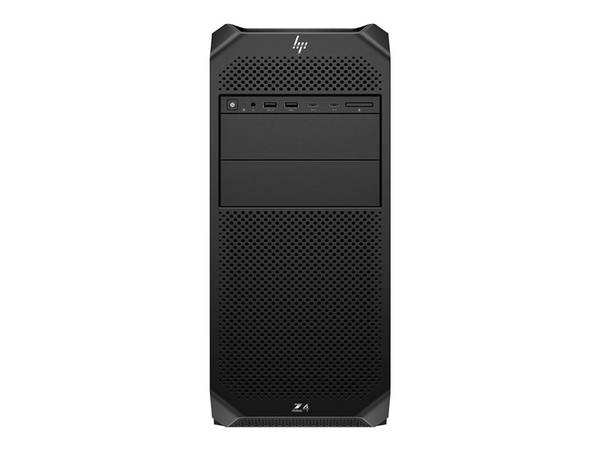

HPI HP Z4G5R W32423 16GB/512 PC U.S. - ENGLISH LOCALIZATION 7484185
SKU
7484185
CA$5,651.00
Category: Workstations
- Primary Information
Product Description: HP Workstation Z4 G5 - rack-mountable Xeon W3-2423 2.1 GHz - 16 GB - SSD 2 x 512 GB - US Type: Workstation - rack-mountable Height (Rack Units): 1U Localization: Language: English / region: United States Processor: 1 x Intel Xeon W3-2423 / 2.1 GHz (up to 4.2 GHz, (6-core) Processor Socket: LGA4677 Socket-E Processor Main Features: Hyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Smart Cache, Intel Turbo Boost Max 3.0 Cache Memory: 15 MB L3 cache Cache Per Processor: 15 MB RAM: 16 GB (installed) / 256 GB (max) - DDR5 SDRAM - non-ECC Hard Drive: 2 x SSD 512 GB - PCI Express 4.0 x4 - M.2 2280 - HP Z Turbo Drive, NVM Express (NVMe), triple-level cell (TLC) Optical Storage: No optical drive Graphics Controller: PCIe 3.0 x16 - NVIDIA Quadro T400 Video Memory: 4 GB GDDR6 SDRAM Networking: 1GbE Keyboard: US Power: (50/60 Hz) OS Provided: Windows 11 Pro Software Included: HP Support Assistant, HP Performance Advisor, HP PC Hardware Diagnostics UEFI, HP Driver Packs, HP Image Assistant, HP Manageability Integration Kit, HP Cloud Recovery, HP Client Management Script Library (free download), HP Image Assistant Gen5 (free download), HP Client Security Manager Gen7, HP Sure Recover Gen4, HP Sure Run Gen5, HP PC Hardware Diagnostics Windows, HP Anyware, HP Data Science Stack, HP Sure Start Gen7 Dimensions (WxDxH): 17.2 in x 25.7 in x 1.7 in Weight: 20.94 lbs Environmental Standards: ENERGY STAR Qualified - General
Type: Workstation Product Form Factor: Rack-mountable - 1U Embedded Security: Trusted Platform Module (TPM 2.0) Security Chip Localization: Language: English / region: United States - Processor / Chipset
CPU: Intel Xeon W3-2423 Clock Speed: 2.1 GHz Max Turbo Speed: 4.2 GHz Number of Cores: 6-core CPU Qty: 1 Max CPU Qty: 1 Processor Main Features: Hyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Smart Cache, Intel Turbo Boost Max 3.0 CPU Socket: LGA4677 Socket-E Chipset Type: Intel W790 - Cache Memory
Installed Size: L3 cache - 15 MB Cache Per Processor: 15 MB - RAM
Installed Size: 16 GB (installed) / 256 GB (max) Technology: DDR5 SDRAM - non-ECC Effective Memory Speed: 4400 MHz Rated Memory Speed: 4800 MHz Form Factor: DIMM 288-pin Slots: 4 (total) / 3 (empty) Configuration Features: 1 x 16 GB - Hard Drive
Type: SSD - M.2 2280 Capacity: 2 x 512 GB Interface Type: PCI Express 4.0 x4 Features: HP Z Turbo Drive, NVM Express (NVMe), triple-level cell (TLC) - Optical Storage
Type: No optical drive - Monitor
Monitor Type: None. - Graphics Controller
Interface Type: PCIe 3.0 x16 Graphics Processor: NVIDIA Quadro T400 Video Memory: 4 GB GDDR6 SDRAM Bandwidth: 80 GBps Video Interfaces: DisplayPort - Audio Output
Compliant Standards: High Definition Audio - Input Device
Type: Mouse, keyboard - Keyboard
Keyboard Name: HP 320K Interface: USB Localization & Layout: US - Mouse
Mouse Name: HP 320M - Networking
Ethernet Controller: Intel I219-LM Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet Features: Wake on LAN (WoL), PXE 2.1 support, Intel Active Management Technology (AMT) 16.10 - Expansion / Connectivity
Bays: 2 (total) / 2 (free) x external 2.5" / 2xM.2 shared ¦ 2 (total) / 2 (free) x internal 2.5" / 2xM.2 shared / 1x3.5" Slots: 1 (total) / 0 (free) x PCIe 5.0 x16 (x8 mode) ¦ 1 (total) / 1 (free) x PCIe 5.0 x16 ¦ 1 (total) / 1 (free) x PCIe 5.0 x8 (x8 mode) ¦ 2 (total) / 0 (free) x M.2 Card - 2280 (PCIe 4.0 x4 mode (for internal storage)) Interfaces: 4 x USB 3.2 Gen 1 (4 in front) (one of them is charging) ¦ 2 x USB 3.2 Gen 1 (2 rear) ¦ 1 x headphones/microphone (1 in front) ¦ 1 x LAN (Gigabit Ethernet) (1 rear) ¦ 3 x Mini DisplayPort 1.4a - Miscellaneous
Theft/Intrusion Protection: Security lock slot (cable lock sold separately), padlock loop, chassis intrusion sensor Security Slot Type: Kensington security slot Compliant Standards: RoHS, FIPS 140-2, Common Criteria EAL4+, ERP, CECP, CEL, WEEE 2002/96/EC, IT ECO Declaration, JEDEC JESD 300-5, DASH 1.2 - Power
Device Type: Power supply Max Supported Qty: 2 Voltage Required: AC 90-269 V (50/60 Hz) - Operating System / Software
OS Provided: Windows 11 Pro English Software: HP Support Assistant, HP Performance Advisor, HP PC Hardware Diagnostics UEFI, HP Driver Packs, HP Image Assistant, HP Manageability Integration Kit, HP Cloud Recovery, HP Client Management Script Library (free download), HP Image Assistant Gen5 (free download), HP Client Security Manager Gen7, HP Sure Recover Gen4, HP Sure Run Gen5, HP PC Hardware Diagnostics Windows, HP Anyware, HP Data Science Stack, HP Sure Start Gen7 - Sustainability Information
ENERGY STAR Certified: Yes - Dimensions & Weight
Width: 17.2 in Depth: 25.7 in Height: 1.7 in Weight: 20.94 lbs - Dimensions & Weight (Shipping)
Shipping Width: 23.2 in Shipping Depth: 35.4 in Shipping Height: 8.7 in - Environmental Parameters
Min Operating Temperature: 41 °F Max Operating Temperature: 104 °F Humidity Range Operating: 8 - 85% RH (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201503
| BRANDS | HP |
|---|---|
| UNSPSC | 43201503 |
| Part# | HPI-A02LHUA#ABA |
| MFG Part# | A02LHUA#ABA |
| UPC | 198122566228 |
| Device Type | Power supply |
| Form Factor | DIMM 288-pin |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Graphics Controller | PCIe 3.0 x16 - NVIDIA Quadro T400 |
| Type | keyboard, Mouse |
| Video Interfaces | DisplayPort |
| Interface Type | PCIe 3.0 x16 |
