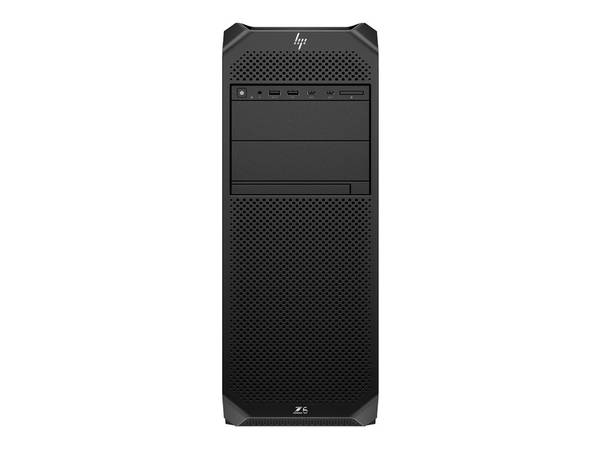

HPI HP Z6G5T W5-3423 64GB/1TB PC U.S. - ENGLISH LOCALIZATION 7374757
SKU
7374757
CA$13,223.00
Category: Workstations
- Primary Information
Product Description: HP Workstation Z6 G5 - tower Xeon W5-3423 2 GHz - 64 GB - SSD 1 TB, SSD 1 TB - US Type: Workstation - tower Height (Rack Units): 4U Localization: Language: English / region: United States Processor: 1 x Intel Xeon W5-3423 / 2 GHz (up to 4.2 GHz, (12-core) Processor Socket: FCLGA4677 Socket Processor Main Features: Hyper-Threading Technology, Intel Turbo Boost Max 3.0 Cache Memory: 30 MB L3 cache Cache Per Processor: 30 MB RAM: 64 GB (installed) / 1 TB (max) - DDR5 SDRAM - non-ECC Storage Controller: SATA/NVMe (SATA 6Gb/s / PCIe 4.0 x4 (NVMe)) Hard Drive: SSD 1 TB - PCI Express 4.0 - M.2 - NVM Express (NVMe), triple-level cell (TLC) Hard Drive (2nd): SSD 1 TB - PCI Express - M.2 Optical Storage: No optical drive Graphics Controller: PCIe 4.0 x16 - NVIDIA RTX 5000 Ada Video Memory: 32 GB GDDR6 SDRAM Networking: 1GbE, 10GbE Keyboard: US Power: (50/60 Hz) OS Provided: Windows 11 Pro Software Included: HP Support Assistant, HP Performance Advisor, HP PC Hardware Diagnostics UEFI, Kingsoft Office, HP Drive Packs (free download), HP Client Catalog, HP BIOS Config Utility, HP Image Assistant, HP Documentation, HP System Software Manager, HP Notifications, HP Sure Run, HP BIOSphere Gen6, HP Desktop Support Utility, myHP, HP Client Security Manager Gen7, HP Easy Clean, HP Manageability Integration Kit (free download), Microsoft Defender, HP PC Hardware Diagnostics Windows, HP Anyware, HP Smart Health Color: Black Dimensions (WxDxH): 6.7 in x 18.8 in x 17.5 in Weight: 28.22 lbs Environmental Standards: ENERGY STAR Qualified Manufacturer Warranty: Limited warranty - parts and labor - 1 year - on-site - General
Type: Workstation Product Form Factor: Tower - 4U Embedded Security: Trusted Platform Module (TPM 2.0) Security Chip Color: Black Localization: Language: English / region: United States - Processor / Chipset
CPU: Intel Xeon W5-3423 Clock Speed: 2 GHz Max Turbo Speed: 4.2 GHz Number of Cores: 12-core CPU Qty: 1 Max CPU Qty: 1 CPU Upgradability: Upgradable Processor Main Features: Hyper-Threading Technology, Intel Turbo Boost Max 3.0 CPU Socket: FCLGA4677 Socket Chipset Type: Intel W790 - Cache Memory
Installed Size: L3 cache - 30 MB Cache Per Processor: 30 MB - RAM
Installed Size: 64 GB (installed) / 1 TB (max) Technology: DDR5 SDRAM - non-ECC Effective Memory Speed: 4400 MHz Rated Memory Speed: 4800 MHz Form Factor: DIMM 288-pin Slots: 8 (total) / 4 (empty) Configuration Features: 4 x 16 GB - Hard Drive
Type: SSD - M.2 Capacity: 1 x 1 TB Interface Type: PCI Express 4.0 Features: NVM Express (NVMe), triple-level cell (TLC) - Hard Drive (2nd)
Type: SSD - M.2 Interface Class: PCI Express Capacity: 1 x 1 TB Features: NVM Express (NVMe), triple-level cell (TLC) - Storage Controller
Type: SATA/NVMe Controller Interface Type: SATA 6Gb/s / PCIe 4.0 x4 (NVMe) RAID Level: RAID 0, RAID 1 - Optical Storage
Type: No optical drive - Monitor
Monitor Type: None. - Graphics Controller
Interface Type: PCIe 4.0 x16 Graphics Processor: NVIDIA RTX 5000 Ada Video Memory: 32 GB GDDR6 SDRAM Bandwidth: 576 GBps Video Interfaces: DisplayPort - Audio Output
Compliant Standards: High Definition Audio - Input Device
Type: Mouse, keyboard - Keyboard
Keyboard Name: HP 320K Interface: USB Localization & Layout: US - Mouse
Mouse Name: HP 320M - Networking
Ethernet Controller: Intel I219-LM Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet Features: Wake on LAN (WoL), Intel Active Management Technology (AMT), PXE 2.1 support - Expansion / Connectivity
Bays: 2 (total) / 2 (free) x external 5.25" ¦ 1 (total) / 1 (free) x external 5.25" Slim Line ¦ 2 (total) / 2 (free) x internal 3.5" Slots: 1 (total) / 0 (free) x PCIe 5.0 x16 - full-length, full-height ¦ 2 (total) / 2 (free) x PCIe 4.0 x4 - full-length, half-height ¦ 2 (total) / 2 (free) x PCIe 4.0 x16 - full-length, full-height ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - full-length, full-height ¦ 2 (total) / 0 (free) x M.2 Card (PCIe 4.0 x4 mode) Interfaces: 1 x headphones/microphone (1 in front) ¦ 2 x USB-C 3.2 Gen 2x2 (2 in front) (Power Delivery 3.0) ¦ 2 x USB 3.2 Gen 1 (2 in front) (one of them is Battery Charging 1.2) ¦ 1 x audio line-out/line-in (1 rear) ¦ 1 x LAN (Gigabit Ethernet) ¦ 6 x USB 3.2 Gen 1 (6 rear) ¦ 4 x DisplayPort 1.4a - Miscellaneous
Theft/Intrusion Protection: Security lock slot (cable lock sold separately), padlock loop Security Slot Type: Kensington security slot Compliant Standards: RoHS, WEEE, Common Criteria EAL4+, CECP, FEMP - Power
Device Type: Power supply Voltage Required: AC 90-269 V (50/60 Hz) Efficiency: 90% Power Factor Correction: Yes (active) - Operating System / Software
OS Provided: Windows 11 Pro English Software: HP Support Assistant, HP Performance Advisor, HP PC Hardware Diagnostics UEFI, Kingsoft Office, HP Drive Packs (free download), HP Client Catalog, HP BIOS Config Utility, HP Image Assistant, HP Documentation, HP System Software Manager, HP Notifications, HP Sure Run, HP BIOSphere Gen6, HP Desktop Support Utility, myHP, HP Client Security Manager Gen7, HP Easy Clean, HP Manageability Integration Kit (free download), Microsoft Defender, HP PC Hardware Diagnostics Windows, HP Anyware, HP Smart Health - Sustainability Information
ENERGY STAR Certified: Yes - Manufacturer Warranty
Service & Support: Limited warranty - parts and labor - 1 year - on-site - Dimensions & Weight
Width: 6.7 in Depth: 18.8 in Height: 17.5 in Weight: 28.22 lbs - Dimensions & Weight (Shipping)
Shipping Width: 12.3 in Shipping Depth: 23.3 in Shipping Height: 24 in Shipping Weight: 38.03 lbs - Environmental Parameters
Min Operating Temperature: 41 °F Max Operating Temperature: 95 °F Humidity Range Operating: 10 - 85% RH (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201503
| BRANDS | HP |
|---|---|
| UNSPSC | 43201503 |
| Part# | HPI-9R489UA#ABA |
| MFG Part# | 9R489UA#ABA |
| Device Type | Power supply |
| Form Factor | DIMM 288-pin |
| RAID Level | RAID 0, RAID 1 |
| Data Link Protocol | 10 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet |
| Graphics Controller | PCIe 4.0 x16 - NVIDIA RTX 5000 Ada |
| Type | keyboard, Mouse |
| Color | Black |
| Efficiency | 90% |
| Video Interfaces | DisplayPort |
| Interface Type | PCIe 4.0 x16 |
