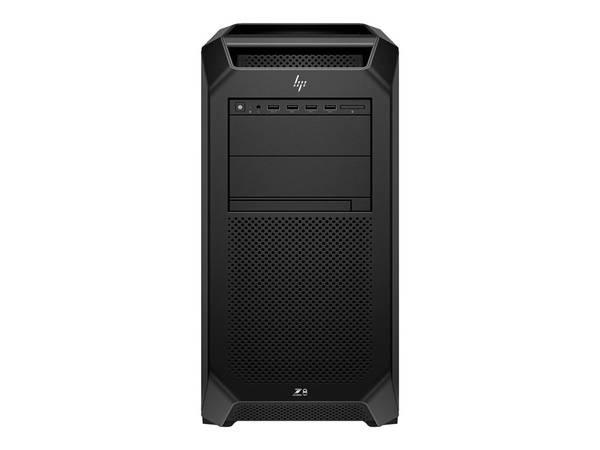

HPI HP Z8G5 X4416+ 256GB/1TB PC U.S. - ENGLISH LOCALIZATION 7463234
SKU
7463234
CA$36,467.00
Category: Workstations
- Primary Information
Product Description: HP Workstation Z8 G5 - tower Xeon Silver 4416+ 2 GHz - 256 GB - SSD 1 TB, HDD 4 TB Type: Workstation - tower Height (Rack Units): 5U Localization: Language: English / region: United States Processor: 1 x Intel Xeon Silver 4416+ / 2 GHz (up to 3.9 GHz, (20-core) Processor Socket: LGA4677 Socket-E Processor Main Features: Hyper-Threading Technology, Intel Turbo Boost Technology 2 Cache Memory: 37.5 MB L3 cache Cache Per Processor: 37.5 MB RAM: 256 GB (installed) / 1 TB (max) - DDR5 SDRAM - ECC Storage Controller: SATA (SATA 6Gb/s) Hard Drive: SSD 1 TB - PCI Express 4.0 x4 - M.2 2280 - HP Z Turbo Drive, NVM Express (NVMe), triple-level cell (TLC) Hard Drive (2nd): HDD 4 TB - SATA - 7200 rpm Optical Storage: No optical drive Graphics Controller: PCIe 4.0 x16 - NVIDIA RTX 6000 Ada Video Memory: 48 GB GDDR6 SDRAM Networking: 1GbE Power: (47/66 Hz) OS Provided: Linux Software Included: HP Support Assistant, HP Performance Advisor, HP PC Hardware Diagnostics UEFI, HP Driver Packs, HP BIOS Config Utility, HP Image Assistant, HP System Software Manager (free download), HP Manageability Integration Kit, HP Smart Support, HP Anyware, HP Services Scan, HP Data Science Stack Manager Color: Black Dimensions (WxDxH): 8.5 in x 21.7 in x 17.5 in Weight: 49.6 lbs Environmental Standards: ENERGY STAR Qualified Manufacturer Warranty: Limited warranty - parts and labor - 1 year - on-site - General
Type: Workstation Product Form Factor: Tower - 5U Embedded Security: Trusted Platform Module (TPM 2.0) Security Chip Color: Black Localization: Language: English / region: United States - Processor / Chipset
CPU: Intel Xeon Silver 4416+ Clock Speed: 2 GHz Max Turbo Speed: 3.9 GHz Number of Cores: 20-core CPU Qty: 1 Max CPU Qty: 2 CPU Upgradability: Upgradable Processor Main Features: Hyper-Threading Technology, Intel Turbo Boost Technology 2 CPU Socket: LGA4677 Socket-E Chipset Type: Intel C741 - Cache Memory
Installed Size: L3 cache - 37.5 MB Cache Per Processor: 37.5 MB - RAM
Installed Size: 256 GB (installed) / 1 TB (max) Technology: DDR5 SDRAM - ECC Effective Memory Speed: 4000 MHz Rated Memory Speed: 4800 MHz Form Factor: DIMM 288-pin Slots: 16 (total) / 12 (empty) Features: Registered, slots 9 - 16 are available in two-processor configuration only Configuration Features: 4 x 64 GB - Hard Drive
Type: SSD - M.2 2280 Capacity: 1 x 1 TB Interface Type: PCI Express 4.0 x4 Features: HP Z Turbo Drive, NVM Express (NVMe), triple-level cell (TLC) - Hard Drive (2nd)
Type: HDD Interface Class: Serial ATA Capacity: 1 x 4 TB Spindle Speed: 7200 rpm - Storage Controller
Type: 1 x SATA Controller Interface Type: SATA 6Gb/s RAID Level: RAID 0, RAID 1, RAID 5, RAID 10 - Optical Storage
Type: No optical drive - Monitor
Monitor Type: None. - Graphics Controller
Interface Type: PCIe 4.0 x16 Graphics Processor: NVIDIA RTX 6000 Ada Video Memory: 48 GB GDDR6 SDRAM Bandwidth: 960 GBps Video Interfaces: DisplayPort - Audio Output
Compliant Standards: High Definition Audio - Networking
Ethernet Ports: 2 x Gigabit Ethernet Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet Features: Wake on LAN (WoL), ACPI support, Intel Active Management Technology (AMT), PXE 2.1 support - Expansion / Connectivity
Bays: 2 (total) / 2 (free) x external 5.25" Slim Line ¦ 2 (total) / 2 (free) x external 5.25" ¦ 4 (total) / 3 (free) x internal 3.5" Slots: 1 (total) / 0 (free) x PCIe 4.0 x16 ¦ 1 (total) / 1 (free) x PCIe 4.0 x16 (2 processors must be installed) ¦ 2 (total) / 2 (free) x PCIe 3.0 x4 ¦ 1 (total) / 1 (free) x PCIe 5.0 x16 ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 (2 processors must be installed) Interfaces: 1 x headphones/microphone (1 in front) ¦ 10 x USB 3.1 Gen 1 (4 front, 6 rear) (one of them is Battery Charging 1.2) ¦ 1 x audio line-in ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x audio line-out ¦ 4 x DisplayPort 1.4a - Miscellaneous
Theft/Intrusion Protection: Security lock slot (cable lock sold separately) Security Slot Type: Kensington security slot Compliant Standards: UL, GS, FCC, RoHS, ICES, CEC, ERP, CECP, CEL, BIS - Power
Device Type: Power supply Voltage Required: AC 90-269 V (47/66 Hz) Efficiency: 90% Power Factor Correction: Yes (active) - Operating System / Software
OS Provided: Linux English Software: HP Support Assistant, HP Performance Advisor, HP PC Hardware Diagnostics UEFI, HP Driver Packs, HP BIOS Config Utility, HP Image Assistant, HP System Software Manager (free download), HP Manageability Integration Kit, HP Smart Support, HP Anyware, HP Services Scan, HP Data Science Stack Manager - Sustainability Information
ENERGY STAR Certified: Yes - Manufacturer Warranty
Service & Support: Limited warranty - parts and labor - 1 year - on-site - Dimensions & Weight
Width: 8.5 in Depth: 21.7 in Height: 17.5 in Weight: 49.6 lbs - Dimensions & Weight (Shipping)
Shipping Width: 13.1 in Shipping Depth: 28.9 in Shipping Height: 25 in Shipping Weight: 61.62 lbs - Environmental Parameters
Min Operating Temperature: 41 °F Max Operating Temperature: 104 °F Humidity Range Operating: 8 - 85% RH (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201503
| BRANDS | HP |
|---|---|
| UNSPSC | 43201503 |
| Part# | HPI-9Z4T5UA#ABA |
| MFG Part# | 9Z4T5UA#ABA |
| UPC | 198122519361 |
| Device Type | Power supply |
| Form Factor | DIMM 288-pin |
| RAID Level | RAID 0, RAID 1, RAID 10, RAID 5 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Graphics Controller | PCIe 4.0 x16 - NVIDIA RTX 6000 Ada |
| Type | No optical drive |
| Color | Black |
| Efficiency | 90% |
| Video Interfaces | DisplayPort |
| Interface Type | PCIe 4.0 x16 |
