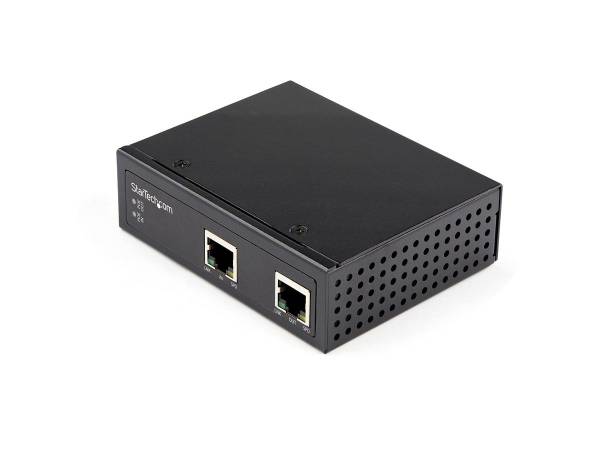

INDUSTRIAL GIGABIT POE EXTENDER 60W 100M 6666549
SKU
6666549
CA$260.99
Gigabit PoE Extender extends a power source by 100m to PD devices; Cascade 4 Power over Ethernet/PoE+ network extenders to extend range by 400m - 15W/30W/60W power output auto-selected - 802.3bt - IP-30 industrial hardened/ -40C to 75C temp
Category: Repeaters & Transceivers
- Primary Information
Product Description: StarTech.com Industrial Single Port Gigabit PoE Extender, 60W 802.3bt PoE /PoE+/ PoE++, 100m/330ft, Power Over Ethernet Network Range Extender, IP-30 Housing, -40C to +75C, PD PoE Extender - 60W PoE++ Extender (POEEXT1G60W) - network/power extender - 10Mb LAN, 100Mb LAN, 1GbE Device Type: Network/power extender Ports Qty: 1 Cabling Type: 10Base-T, 100Base-TX, 1000Base-T Data Transfer Rate: 1 Gbps Data Link Protocol: 10Mb LAN, 100Mb LAN, 1GbE Max Transfer Distance: 328 ft Power Over Ethernet (PoE): PoE+ Dimensions (WxDxH): 3.2 in x 4.1 in x 1.3 in Weight: 5.22 oz Manufacturer Warranty: 2-year warranty - General
Device Type: Network/power extender Color: Black - Networking
Ports Qty: 1 Connectivity Technology: Wired Cabling Type: 10Base-T, 100Base-TX, 1000Base-T Data Link Protocol: 10Mb LAN, 100Mb LAN, 1GbE Data Transfer Rate: 1 Gbps Max Transfer Distance: 328 ft Status Indicators: PoE, link/activity Features: Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), full duplex mode, rugged, Back Pressure Support, 2KV Surge protection, 8KV ESD Protector (air-gap discharge), 6KV ESD Protector (contact discharge), aluminum housing Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3bt - Expansion / Connectivity
Interfaces: 1 x Ethernet 10Base-T/100Base-TX/1000Base-T (PoE+ output) - RJ-45 female ¦ 1 x Ethernet 10Base-T/100Base-TX/1000Base-T (PoE+ input) - RJ-45 female - Miscellaneous
Mounting Kit: Included MTBF: 551, 848 hours Compliant Standards: IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, FCC, RoHS, WEEE, IP30, EN 60068-2-27, EN 60068-2-32, EN 60068-2-6 - Power
Power Over Ethernet (PoE): PoE+ Power Consumption Operational: 2.7 Watt - Dimensions & Weight
Width: 3.2 in Depth: 4.1 in Height: 1.3 in Weight: 5.22 oz - Dimensions & Weight (Shipping)
Shipping Width: 8.3 in Shipping Depth: 6.4 in Shipping Height: 2.5 in Shipping Weight: 14.11 oz - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: -40 °F Max Operating Temperature: 167 °F Humidity Range Operating: 5 - 95% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201553
| BRANDS | STARTECHCOM |
|---|---|
| UNSPSC | 43201553 |
| Part# | STC-POEEXT1G60W |
| MFG Part# | POEEXT1G60W |
| UPC | 65030889650 |
| Max Transfer Distance | 328 ft |
| Device Type | Network/power extender |
| Connectivity Technology | Wired |
| Data Transfer Rate | 1 Gbps |
| Data Link Protocol | 100Mb LAN, 10Mb LAN, 1GbE |
| Color | Black |
