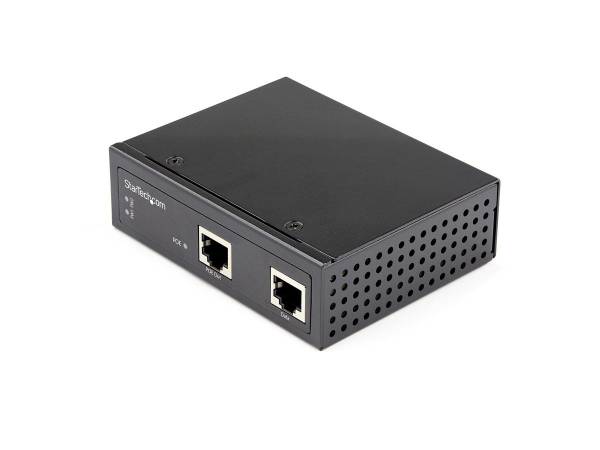

INDUSTRIAL GIGABIT POE++ INJECTOR 90W 6666550
SKU
6666550
CA$310.99
High power industrial gigabit PoE injector 90W 1 Gbps Up to 90W max w/IEEE 802.3bt Type 3/4 PoH (HDBase-T) uPoE/Ultra power over Ethernet, MTBF 500k+hrs IP-30 housing, -40C to 75C - DIN/Wall mountable 52V-56VDC w/redundant pwr inputs - 2yr warranty
Category: Repeaters & Transceivers
- Primary Information
Product Description: StarTech.com Industrial Gigabit PoE Injector, High Speed/High Power 90W, 802.3bt PoE++ 48V-56VDC DIN Rail UPoE/Ultra Power Over Ethernet Injector Adapter, -40C to +75C, Rugged, Gigabit PoE - 90W PoE++ Injector (POEINJ1G90W) - PoE injector - 90 Watt Device Type: PoE injector - external Power Over Ethernet (PoE): PoE++ Weight: 6.14 oz Output Voltage: 48 - 56 V Power Capacity: 90 Watt Output connectors: 1 x RJ-45 Included Accessories: Mounting kit, terminal block Color: Black Dimensions (WxDxH): 1.3 in x 3.2 in x 4.1 in Manufacturer Warranty: 2-year warranty - General
Device Type: PoE injector - external Power Over Ethernet (PoE): PoE++ (IEEE 802.3bt) Color: Black - Power Device
Power Output Connectors Details: 1 x RJ-45 Output Voltage: 48 - 56 V Power Capacity: 90 Watt - Expansion / Connectivity
Interfaces: 2 x Gigabit LAN - RJ-45 - Miscellaneous
Included Accessories: Mounting kit, terminal block MTBF: 540,891 hours Features: Rugged, DIN rail mountable, auto MDIX support, LED indicators, overcurrent protection, overload protection, 8 kV ESD protection (Air), 6 kV ESD protection (Contact) Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, UL, IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, FCC, RoHS, UL 60950-1, EN 60950-1, WEEE, cULus, IP30, EN 60068-2-27, EN 60068-2-32, EN 60068-2-6 - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: -40 °F Max Operating Temperature: 167 °F Humidity Range Operating: 5 - 95% (non-condensing) - Dimensions & Weight
Width: 1.3 in Depth: 3.2 in Height: 4.1 in Weight: 6.14 oz - Dimensions & Weight (Shipping)
Shipping Width: 8.3 in Shipping Depth: 6.4 in Shipping Height: 2.5 in Shipping Weight: 14.11 oz - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201553
| BRANDS | STARTECHCOM |
|---|---|
| UNSPSC | 43201553 |
| Part# | STC-POEINJ1G90W |
| MFG Part# | POEINJ1G90W |
| UPC | 65030889568 |
| Device Type | PoE injector - external |
| Color | Black |
