INT 24-PORT GIG SWITCH 5527517
SKU
5527517
CA$321.61

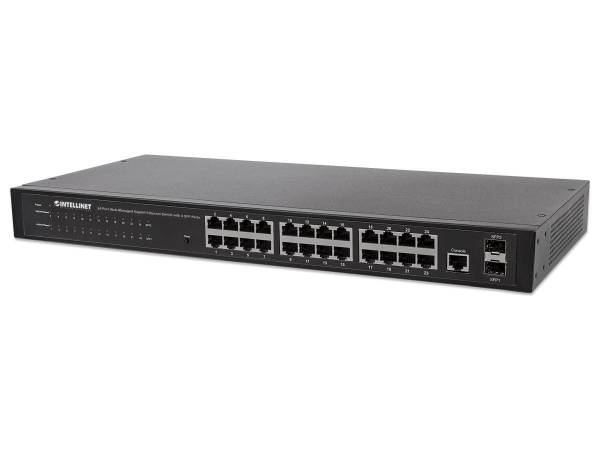

Intellinet Network Solutions 24-Port Web-Managed Gigabit Ethernet Switch with 2 SFP Ports 24 x 10/100/1000 Mbps RJ45 Ports + 2 x SFP, IEEE 802.3az Energy Efficient Ethernet, SNMP, QoS, VLAN, ACL, 19in Rackmount (IES-24GM02)
Category: Hubs & Switches
- Primary Information
Network Device Type: Switch Model: IES-24GM02 Form Factor: Rackmount Connectivity Technology: Wired Data Transfer Rate: 1000 Mbps Networking / Ports Qty: 26 Data Link Protocol: Gigabit Ethernet Max Power Consumption: 20 Watt Power / Voltage Required: 100 - 240 VAC Features: Twenty-four 10/100/1000 Mbps auto-sensing ports automatically detect optimal network speeds; Two small form-factor pluggable GBIC module slots (SFP); Domotz compatible for cloud management; All RJ45 ports with Auto-MDIX and NWay auto-negotiation support; Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification; Web- or Telnet-based configuration; Remote Reboot/restart; SNMP Management and Remote Monitoring (RMON); SNMP V1, V2 with RMON groups 1, 2, 3 & 9; Supports VLAN (tag-based and port-based); 802.1X authentication and IP/MAC based Access Control Lists (ACL); Supports link aggregation (trunking); IGMP Snooping for multicast filtering; Supports bandwidth control per port; Supports port mirroring; Supports three types of QoS: port-based, 802.1p and DSCP; Broadcast storm control with multicast packet rate settings; Supports jumbo frames up to 9 kBytes; Supports Rapid Spanning Tree/Spanning Tree protocol; Store and forward switching architecture; Fanless design ideal for silent operation; Full/half duplex operation; IEEE 802.3x flow control for full duplex; 52 Gbps switch fabric; Supports 8k MAC address entries; 512 kBytes buffer memory; Includes 19" rackmount brackets; Fully NDAA-compliant; - Interfaces / Ports
Interfaces: RJ45, SFP 10/100/1000BASE-T Ports: 24 SFP Ports: 2 - Network
MAC Address Table Size: 8k 10/100/1000BASE-T Ports: 24 SFP Ports: 2 Interfaces: RJ45, SFP - Dimensions&Miscellaneous
What's Included: 24-Port Web-Managed Gigabit Ethernet Switch with 2 SFP Ports; Power cable; 19" rackmount brackets; User manual; Width: 440 Mm Depth: 205 Mm Height: 44 Mm Weight: 1.97 Kg - Service&Support
Service & Support Type: Three-Year Warranty - Special Feature
Min Operating Temperature: 0 celsius Max Operating Temperature: 40 celsisu Min Storage Temperature: -40 celsius Max Storage Temperature: 70 celsius COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | MANHATTAN/INTELLINET |
|---|---|
| UNSPSC | 43222612 |
| Part# | ITR-560917 |
| MFG Part# | 560917 |
| UPC | 766623560917 |
| Network Device Type | Switch |
| 10/100/1000BASE-T Ports | 24 |
| Connectivity Technology | Wired |
| Data Transfer Rate | 1000 Mbps |
| Form Factor | Rackmount |
| Networking / Ports Qty | 26 |
| Data Link Protocol | Gigabit Ethernet |
