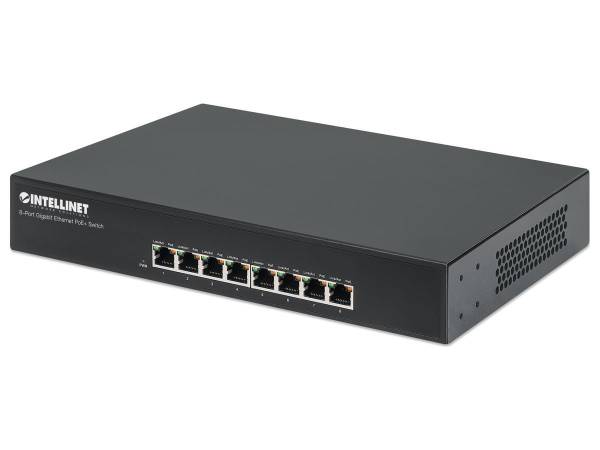

INTELLINET 8P POE+ GIGABIT SWITCH 5135201
SKU
5135201
CA$180.81
Intellinet Network Solutions 8-Port Gigabit Ethernet PoE+ Switch IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Compliant, 140 W, Endspan, Desktop, 19in Rackmount (IPS-08G-140W)
Category: Hubs & Switches
- Primary Information
Network Device Type: Switch Model: IPS-08G-140W Form Factor: Rackmount; Desktop Connectivity Technology: Wired Data Transfer Rate: 1000 Mbps Networking / Ports Qty: 8 Data Link Protocol: Gigabit Ethernet Max Power Consumption: 150 Watt Power / Voltage Required: 100 - 240 VAC Features: Provides power and data connection for up to eight PoE network devices; Saves time and money by delivering data and power via existing network cables; 10/100/1000 auto-sensing ports automatically detect optimal network speeds; IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports; PoE power budget of 140 watts; Power output up to 30 watts per port; Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (wireless access points, VoIP phones, IP cameras); Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection; 4 kV surge protection for PoE ports; Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification; Supports Jumbo Frames up to 9 kBytes; All RJ45 ports with Auto-MDIX (auto uplink) support; Store and forward switching architecture; IEEE 802.3x flow control for full duplex; Supports up to 8K MAC address entries; 256 kBytes buffer memory; Cooling fan for ventilation; Desktop-size metal case; Includes 19" rackmount brackets; - Network
Power Over Ethernet (PoE) Support: YES PoE Power Consumption: 140W MAC Address Table Size: 8K 10/100/1000BASE-T Ports: 8 Interfaces: RJ45 - Interfaces / Ports
Interfaces: RJ45 10/100/1000BASE-T Ports: 8 - Dimensions&Miscellaneous
What's Included: 8-Port Gigabit Ethernet PoE+ Switch; Power cable; User manual; 19" mounting brackets; Width: 280 Mm Depth: 180 Mm Height: 44 Mm Weight: 2.55 Kg - Service&Support
Service & Support Type: Three-Year Warranty - Special Feature
Min Operating Temperature: 0 celsius Max Operating Temperature: 40 celsius Min Storage Temperature: -20 celsius Max Storage Temperature: 70 celsisu COO: CHINA - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | MANHATTAN/INTELLINET |
|---|---|
| UNSPSC | 43222612 |
| Part# | ITR-560641 |
| MFG Part# | 560641 |
| UPC | 766623560641 |
| Network Device Type | Switch |
| 10/100/1000BASE-T Ports | 8 |
| Connectivity Technology | Wired |
| Data Transfer Rate | 1000 Mbps |
| Form Factor | Desktop, Rackmount |
| Networking / Ports Qty | 8 |
| Data Link Protocol | Gigabit Ethernet |
