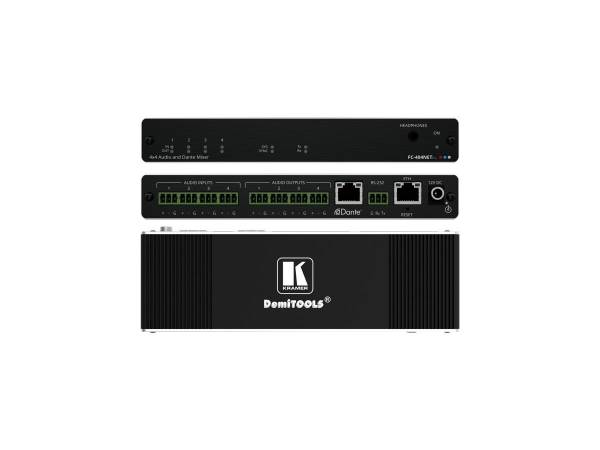

KRAMER 4X4 AUDIO AND DANTE MIXER 7329036
SKU
7329036
Category: Combined AV Devices
- Primary Information
Device Types: Audio Mixer Features: INPUTS: 4 Balanced Mono Audio Line/Mic: On 3pin terminal block female connectors, OUTPUTS: 4 Balanced Mono Audio Line: On 3pin terminal block female connectors, PORTS: 1 Dante Ethernet Network: On an RJ45 female connector for 4 audio input channels and 4 output streams, 1 Ethernet Network: On an RJ45 female connector for device service, 1 RS-232: On a 3pin terminal block female connector for device serial control, BALANCED LINE LEVEL INPUT: Impedance: 50k, Maximum Level: +10dBu (2.35Vrms), Nominal Level: +4dBu, Sensitivity: Full power @ +10dBu (2.4Vrms), MICROPHONE LEVEL INPUT: Impedance: 10k, Maximum Level (Dynamic): 23mVrms, Maximum Level (Condenser): 10dBu, Sensitivity: Full power @ +10dBu (2.4Vrms), Phantom Power: 48VDC on/off per input, LINE LEVEL OUTPUT: Impedance Balanced: 500, Maximum Level: +15dBu, Frequency Response: 20Hz 20kHz, 0.1dB, EXTENSION LINE: Audio THD + Noise: <0.03% 20Hz 20kHz at unity gain Crosstalk: <85dB, 20Hz to 20kHz, DIGITAL CHANNELS: Dante Sample Rates: 44.1 ,48 (default), 88.2, 96kHz, AES67 Sample Rate: 48kHz, INDICATION LEDS: 4 Input signal/clipping LEDs, 4 Output signal/clipping LEDs, 1 Sys LED, 1 Sync LED, 1 Tx LED, 1 Rx LED, 1 Power on LED, POWER: Consumption: 12V DC, 300mA, Source: 12V DC, 2A, PoEacceptor. - Dimensions&Miscellaneous
Width: 7.50 Inch Depth: 2.35 Inch Height: 1.08 Inch - Special Feature
RoHS: Y COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 45111800
| BRANDS | KRAMER ELECTRONICS |
|---|---|
| UNSPSC | 45111800 |
| Part# | KRA-FC-404NETXL |
| MFG Part# | FC-404NETXL |
| UPC | 7291063091835 |
| Device Types | Audio Mixer |
