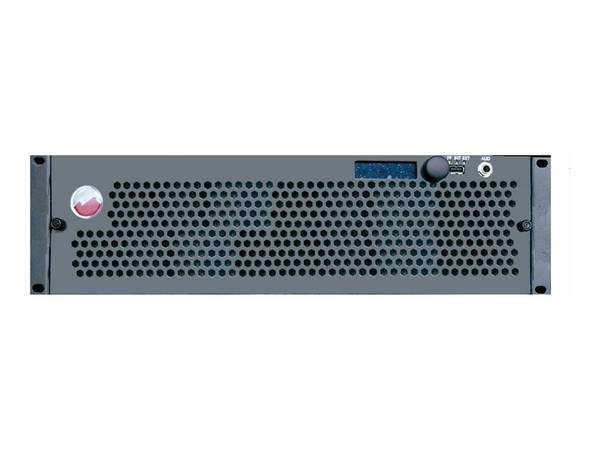

KRAMER MP-XX 3RU FRAME INC NETWORK CARD AND PSU 7329128
SKU
7329128
Category: AV Accessories
- Primary Information
Product Description: Sierra Video MP-XX multiviewer system Type: Multiviewer system Supported Video Standards: PAL, NTSC, SECAM Dimensions (WxDxH): 17.3 in - 17.9 in - 5.2 in Weight: 23.15 lbs Manufacturer Warranty: 5 years - General
Type: Multiviewer system Width: 17.3 in Depth: 17.9 in Height: 5.2 in Weight: 23.15 lbs - Studio & Production Equipment
Supported Video Standards: PAL, NTSC, SECAM Features: 3U rack-mountable, fan cooling, 20 input/output module slots, HDCP compliant, deinterlacer function, scaler function, 4K30 signal support, hot-swappable - Power
Installed Qty: 1 Power Consumption: 576 Watt Low Voltage Power: DC 24 V - Terminals
Terminals: (1) x REF input - BNC ¦ (1) x timecode input - BNC ¦ (1) x GPIO - 15 pin D-Sub (DB-15) ¦ (1) x tally - RS-232/RS-422 ¦ (1) x network - RJ-45 ¦ (1) x USB - 4 pin USB type A ¦ (1) x audio output - 6.35 mm TRS - stereo - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 70% - Manufacturer Warranty
Warranty: 5 years - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 52161600
| BRANDS | KRAMER ELECTRONICS |
|---|---|
| UNSPSC | 52161600 |
| Part# | KRA-MP-XX_3RU_FRAME_NETWORK_CARD&PSU |
| MFG Part# | MP-XX_3RU_FRAME_NETWORK_CARD&PSU |
| UPC | 7291063078775 |
| Type | Multiviewer system |
