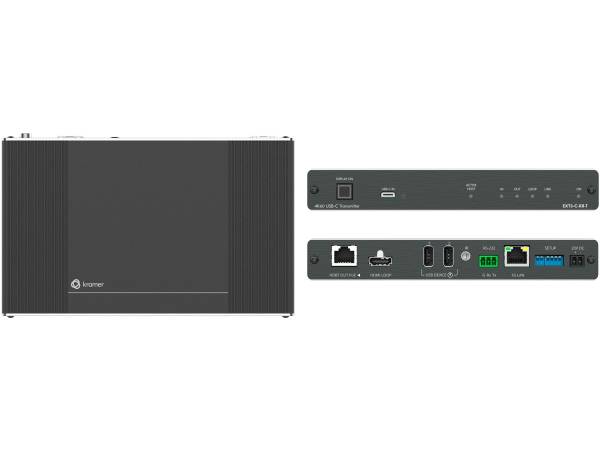

KRAMER USB-C AV + USB + GE 60W-CHARGE 40M POE-ACC TX 7242606
SKU
7242606
Category: Power Adapters
- Primary Information
Product Description: Kramer - video/audio/infrared/serial/USB/network/power extender - 1GbE, HDMI, HDBaseT 3.0 Device Type: Video/audio/infrared/serial/USB/network/power extender (transmitter) - USB Form Factor: External Cabling Type: 1000Base-T Data Transfer Rate: 18 Gbps Data Link Protocol: 1GbE, HDMI, HDBaseT 3.0 Max Transfer Distance: 328 ft Power: DC 20 V Dimensions (WxDxH): 7.5 in x 4.6 in x 1.1 in Weight: 21.16 oz - General
Device Type: Video/audio/infrared/serial/USB/network/power extender (transmitter) Form Factor: External Built-in Devices: USB hub - Networking
Connectivity Technology: Wired Cabling Type: 1000Base-T Data Link Protocol: 1GbE, HDMI, HDBaseT 3.0 Data Transfer Rate: 18 Gbps Keyboard / Mouse Interface: USB Max Resolution: 4K @ 60 Hz Max Transfer Distance: 328 ft Status Indicators: USB, loop, HDMI, HDBT Features: 3D support, 4K resolution support, HDBaseT technology, EDID Pass-Through, 2K resolution support, CEC passthrough, Dolby TrueHD support, bidirectional, x.v.Color support, DTS-HD support, HDR10 support, aluminum housing, 4:4:4 chroma subsampling support, Deep Color support, LED status indicators, convection ventilation cooling, Video ALT mode, 4K60Hz support Compliant Standards: USB 1.1, USB 2.0, HDCP 2.3 - Expansion / Connectivity
Interfaces: 1 x USB (input) - Type C female ¦ 1 x HDBaseT (output) - RJ-45 female ¦ 1 x HDBaseT (PoE) - RJ-45 female ¦ 1 x HDMI (loop output) - 19 pin HDMI Type A female ¦ 1 x USB 2.0 (host) - Type B female ¦ 2 x USB 2.0 (device) - Type A female ¦ 1 x Ethernet 10/100/1000Base-T - RJ-45 female ¦ 1 x IR - mini jack ¦ 1 x RS-232 - 3 pin terminal block female - Miscellaneous
Included Accessories: Rubber feet, power adapter, bracket kit Cables Included: USB-C cable - 3.3 ft Compliant Standards: RoHS, WEEE - Power
Power Device: External power adapter Voltage Required: DC 20 V Power Consumption Operational: 88 Watt - Dimensions & Weight
Width: 7.5 in Depth: 4.6 in Height: 1.1 in Weight: 21.16 oz - Dimensions & Weight (Shipping)
Shipping Width: 13.6 in Shipping Depth: 8.3 in Shipping Height: 2.6 in Shipping Weight: 2.65 lbs - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 10 - 90% RH (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121006
| BRANDS | KRAMER ELECTRONICS |
|---|---|
| UNSPSC | 39121006 |
| Part# | KRA-EXT3-C-XR-T |
| MFG Part# | EXT3-C-XR-T |
| UPC | 7291063098131 |
| Max Transfer Distance | 328 ft |
| Max Resolution | 4K @ 60 Hz |
| Device Type | Video/audio/infrared/serial/USB/network/power extender (transmitter) |
| Connectivity Technology | Wired |
| Data Transfer Rate | 18 Gbps |
| Form Factor | External |
| Data Link Protocol | 1GbE, HDBaseT 3.0, HDMI |
