LEGRAND-RARITAN PDU 1PH, 120VAC 20A (16A RATED); 24 OUTLETS 12854478
SKU
12854478
CA$2,494.59

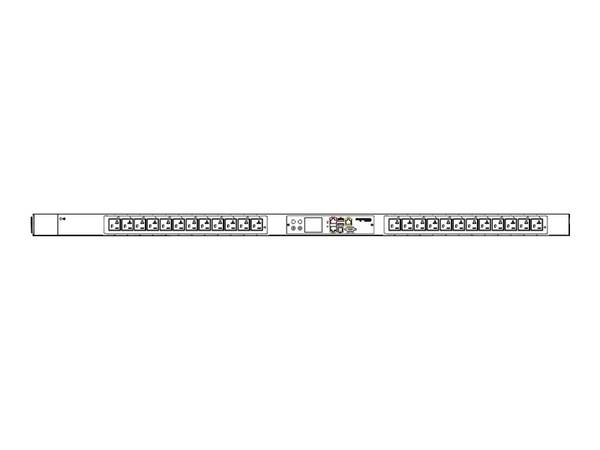

Legrand-Raritan Raritan Intelligent PDU 1PH, 120V AC, 20A (16A rated); 24x NEMA 5-20R; NEMA L5-20P (Bottom-bottom feed), 1.9kVA; Outlet Metered/Switched, 0U Vertical, Color Display, Ethernet, serial, 2x USB-A, USB-B
Category: Power Distribution Units
- Primary Information
Product Description: Raritan Dominion PX PX3-5475V - power distribution unit - 1900 VA Device Type: Power distribution unit - rack-mountable Rack Size: 0U Input Wiring: 1-phase Input Voltage: AC 120 V Output Voltage: AC 120 V Power Capacity: 1900 VA Input Connectors: 1 x power NEMA L5-20 Output connectors: 24 x power NEMA 5-20R - 120 V 16 A Networking: Ethernet 10/100, RS-232 Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH Color: Black powder coat Dimensions (WxDxH): 2 in x 2.6 in x 51.1 in - General
Device Type: Power distribution unit - rack-mountable Height (Rack Units): 0U Color: Black powder coat - Power Device
Input Voltage: AC 120 V Input Voltage Range: AC 100 - 120 V Input Wiring: 1-phase Frequency Required: 50/60 Hz Input Connectors: 1 x power NEMA L5-20 Power Output Connectors Details: 24 x power NEMA 5-20R - 120 V 16 A Output Voltage: AC 120 V Max Electric Current: 16 A Power Capacity: 1900 VA - Networking
Remote Management Interface: Ethernet 10/100, RS-232 Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH - Expansion / Connectivity
Interfaces: 1 x LAN - RJ-45 ¦ 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x monitoring - RJ-12 ¦ 1 x monitoring - RJ-45 ¦ 2 x USB - 4 pin USB Type A ¦ 1 x USB - 4 pin USB Type B - Miscellaneous
Cables Included: Power cable - integrated - 10 ft Rack Mounting Kit: Included Features: LED display, voltage monitoring, current meter, cascadable, active power meter, real power meter, energy meter, power factor meter, splash-proof plug Compliant Standards: UL, ICES-003 Class A, RoHS, FCC Part 15 A, cULus - Environmental Parameters
Min Operating Temperature: 41 °F Max Operating Temperature: 140 °F Humidity Range Operating: 5 - 85% - Dimensions & Weight
Width: 2 in Depth: 2.6 in Height: 51.1 in - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121017
| BRANDS | RARITAN |
|---|---|
| UNSPSC | 39121017 |
| Part# | RAR-PX3-5475V |
| MFG Part# | PX3-5475V |
| UPC | 785813029577 |
| Device Type | Power distribution unit - rack-mountable |
| Color | Black powder coat |
| Remote Management Protocol | HTTP, HTTPS, SNMP 2, SNMP 3, SSH, Telnet |
