LEGRAND-RARITAN PDU 1PH, 120VAC 20A (16A RATED); 24 OUTLETS 6856326
SKU
6856326
CA$983.78

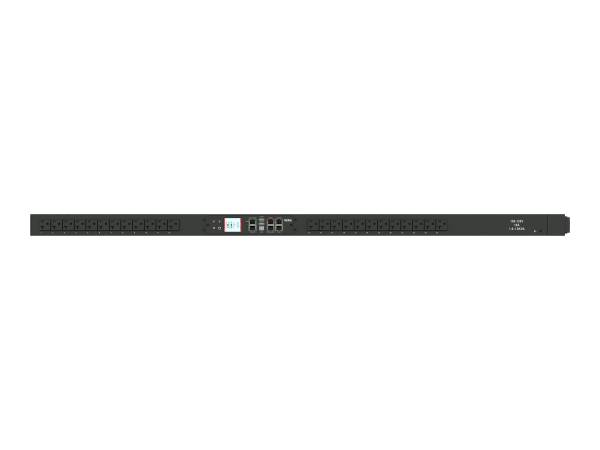

Legrand-Raritan Raritan Intelligent PDU 1PH, 120V AC, 20A (16A rated); 24x NEMA 5-20R; NEMA 5-20P (Bottom-bottom feed), 1.9kVA; Unit Metered, 0U Vertical, Color Display, Ethernet, serial, 2x USB-A, USB-B
Category: Power Distribution Units
- Primary Information
Product Description: Raritan PX3-1802V - power distribution unit - 1900 VA Device Type: Power distribution unit - rack-mountable Cord Length: 10 ft Rack Size: 0U Input Wiring: 1-phase 3 Wire Input Voltage: AC 120 V Output Voltage: AC 120 V Power Capacity: 1900 VA Power Capacity Details: 1.6 kVA at 100 V, 1.9 kVA at 120 V Input Connectors: 1 x power NEMA 5-20P Output connectors: 24 x power NEMA 5-20R - 120 V 16 A Networking: Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000 Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus Color: Black powder coat Dimensions (WxDxH): 2 in x 1.7 in x 51.1 in Manufacturer Warranty: 2-year warranty - General
Device Type: Power distribution unit - rack-mountable Height (Rack Units): 0U Cord Length: 10 ft Color: Black powder coat - Power Device
Input Voltage: AC 120 V Input Voltage Range: AC 100 - 120 V Input Wiring: 1-phase 3 Wire Frequency Required: 50/60 Hz Input Connectors: 1 x power NEMA 5-20P Power Output Connectors Details: 24 x power NEMA 5-20R - 120 V 16 A Output Voltage: AC 120 V Max Electric Current: 20 A Power Capacity: 1900 VA Power Capacity Details: 1.6 kVA at 100 V, 1.9 kVA at 120 V - Networking
Remote Management Interface: Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000 Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus - Expansion / Connectivity
Interfaces: 1 x sensor - RJ-45 ¦ 1 x modem - RJ-45 ¦ 2 x monitoring - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type B ¦ 2 x USB - 4 pin USB Type A ¦ 1 x management (Fast Ethernet) - RJ-45 ¦ 1 x management (Gigabit Ethernet) - RJ-45 - Miscellaneous
Cables Included: Power cable - integrated - 10 ft Rack Mounting Kit: Included Features: Vertical orientation, tool-less button mount, LCD display, voltage monitoring, current meter, cascadable, active power meter, real power meter, energy meter, power factor meter, splash-proof plug, metering per input line, replaceable controller, monitored, bottom-bottom feed cord entry, cord retention Compliant Standards: UL, ICES-003, RoHS, FCC Part 15 A, cULus, IP44, IEC 62053-21, ISO 62053-21 - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Max Operating Temperature: 140 °F Humidity Range Operating: 85% - Dimensions & Weight
Width: 2 in Depth: 1.7 in Height: 51.1 in - Dimensions & Weight (Shipping)
Shipping Width: 7.3 in Shipping Depth: 7.3 in Shipping Height: 55.4 in - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121017
| BRANDS | RARITAN |
|---|---|
| UNSPSC | 39121017 |
| Part# | RAR-PX3-1802V |
| MFG Part# | PX3-1802V |
| Device Type | Power distribution unit - rack-mountable |
| Color | Black powder coat |
| Remote Management Protocol | HTTP, HTTPS, JSON-RPC, Modbus, SMTP, SNMP 2, SNMP 3, SSH, Telnet |
